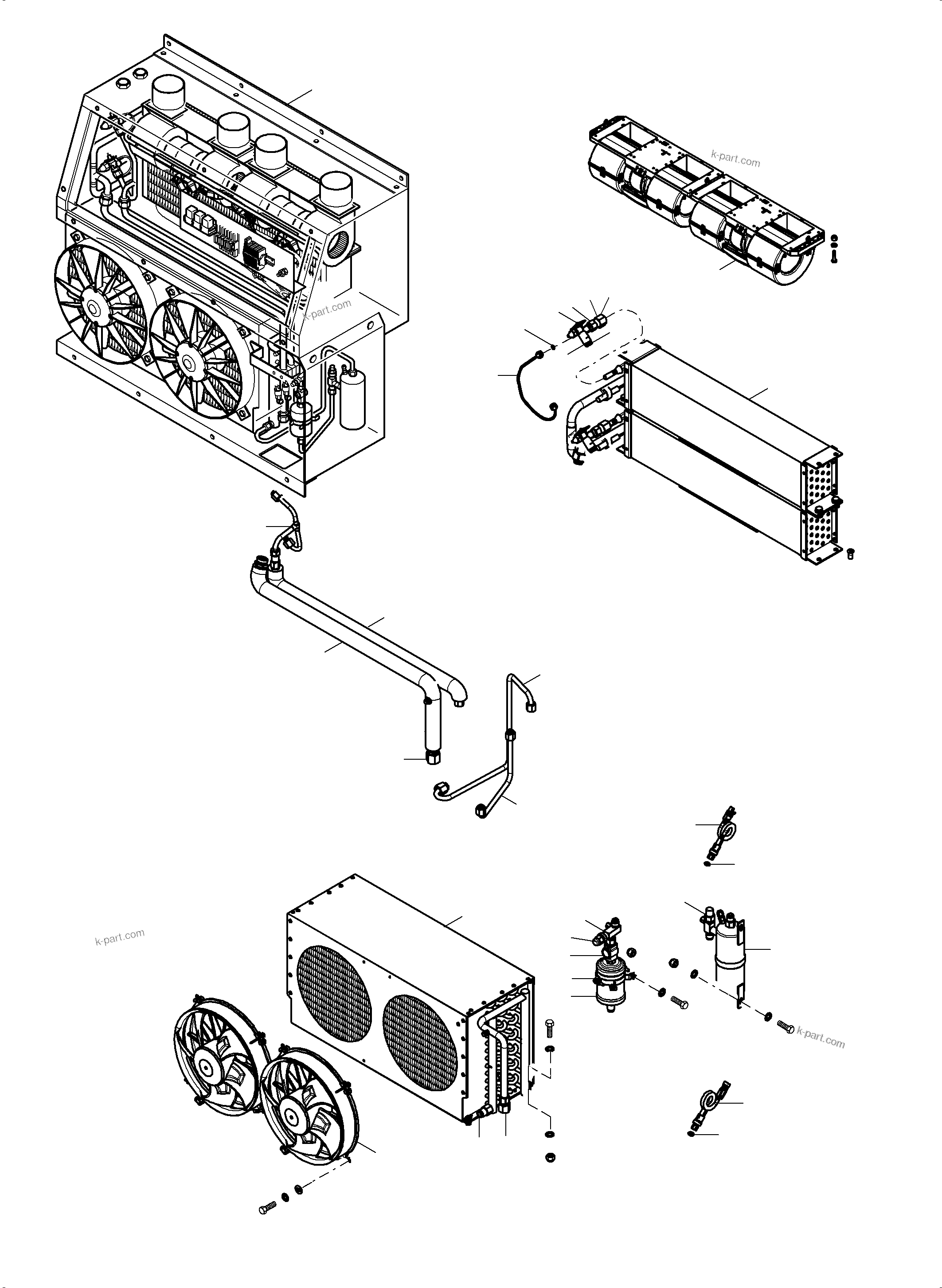

Diagram image 1 of 2

PC4000-6E S/N 08299

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08299

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	790 458 73	Air conditioning unit	1
?	813 472 73	Evaporator unit	1
?	797 804 73	Seal	2
?	798 265 73	Socket 7/8-3/4	2
?	797 802 73	Seal 3/4"	7
?	793 251 73	Expansion valve	2
?	793 252 73	Nozzle	2
?	793 253 73	Pressure balance line	2
?	797 805 73	Seal 7/16"	6
?	797 803 73	Seal 5/8"	2
?	795 873 73	Condenser	1
?	797 804 73	Seal 7/8"	4
?		Seal	1
?		Union Nut	1
?	794 433 73	Collector bottle	1
?	796 581 73	Pressure control valve 30bar	1
?	797 802 73	Seal 3/4"	7
?	794 432 73	Element drier	1
?	795 824 73	Check valve	1
?	794 706 73	Inspection glass	1
?	765 320 73	Clamp	1
?	795 828 73	Liquid line, drier - T-distributor	1
?	795 825 73	Suction line, T-collector - compressor	1
?	795 827 73	Liquid line, condenser - collector	1
?	795 826 73	Liquid line, collector - drier	1
?	797 645 73	Liquid line, T-distributor-exp.Valves	1
?		Union Nut	1
?		Seal washer	1
?	797 807 73	Pressure Switch	1
?	797 808 73	Pressure Switch	1
?	797 805 73	Seal 7/16"	6
?	790 127 73	Double-radial-blower, brushless	2
?		Adapter blower	2
?		Cable strip	2
?	790 102 73	Ventilator	2
?	813 647 73	Switch panel, with small parts	1
?	765 159 73	Relay base	3
?	795 829 73	Relay 24V 20A	3
?	765 702 73	Fuse 10A	1
?	765 306 73	Fuse 15A	5
?	790 465 73	Control section, Diesel shovel	1
?	790 466 73	Control section, Electro shovel	1
?	790 459 73	Harness control section	1
