PUMP MOUNTING; COVER PDG | PC4000-6E S/N 08299 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

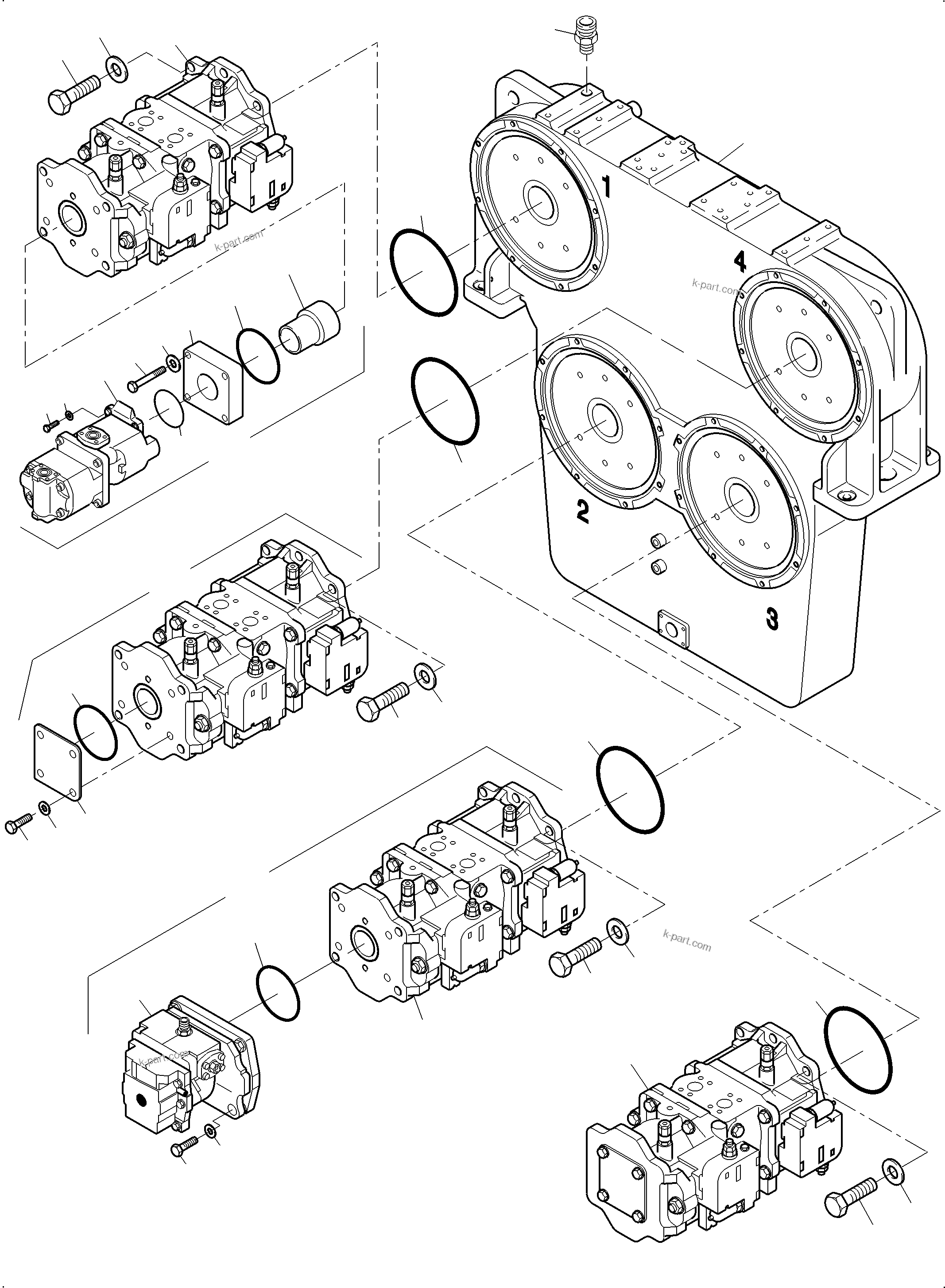

Diagram image 1 of 2

PC4000-6E S/N 08299

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08299

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Pump distributor gear	1	991-0975a
?	7082K00310	Main pump assy. fig-nos. 04,20-28	1
?	7082K00320	Main pump assy. fig-nos. 04,25,27,30,31	1
?	7082K00330	Main pump assy. fig-nos. 25,27,52,53	2
?	926 983 40	Bridge	3
?	967 346 40	Bleeder valve	1
?	340 086 99	Seal ring	1
?	081 495 40	Quick disconnect coupling	1
?	081 496 40	Protection cap	1
?	081 497 40	Counter part to fig-no. 10	1
?	340 471 99	Washer	24
?	307 888 99	Bolt	24
?	517 568 98	Bolt	32
?	519 453 98	Flange seal	8
?	967 349 40	Bridge	1
?	7055131210	Gear pump	1
?	0737221240	Bolt	4
?	01643 31232	Washer	4
?	07000A2125	O-Ring	1
?	01010 61455	Bolt	4
?	01643 31445	Washer	12
?	7082K19220	Plate	1
?	07000 A 5165	O-Ring	3
?	7082K19210	Coupling	1
?	7081G00130	Fan pump	1
?	01010 61445	Bolt	4
?	7082K11931	Cover	1
?	0101061435	Bolt	4
?	790 938 73	Installation kit gear pump, consist. of fig nos 21-28	1
?	790 939 73	Installation kit gear pump, consist. of fig nos 25,27,31	1
?	957 176 40	Cover assy. consist. of fig nos 70-74	1
?	990 405 40	Ring	1
?	308 608 99	Bolt	4
?	520 174 98	Washer	8
?	334 600 99	Nut	4
?	957 175 40	Cover	1
?	950 202 40	Washer nut	3
?	319 141 99	Screw	3
?	334 599 99	Nut	3
?	956 896 40	Wire assy.	3
?	971 154	O-ring	4
?			-2
