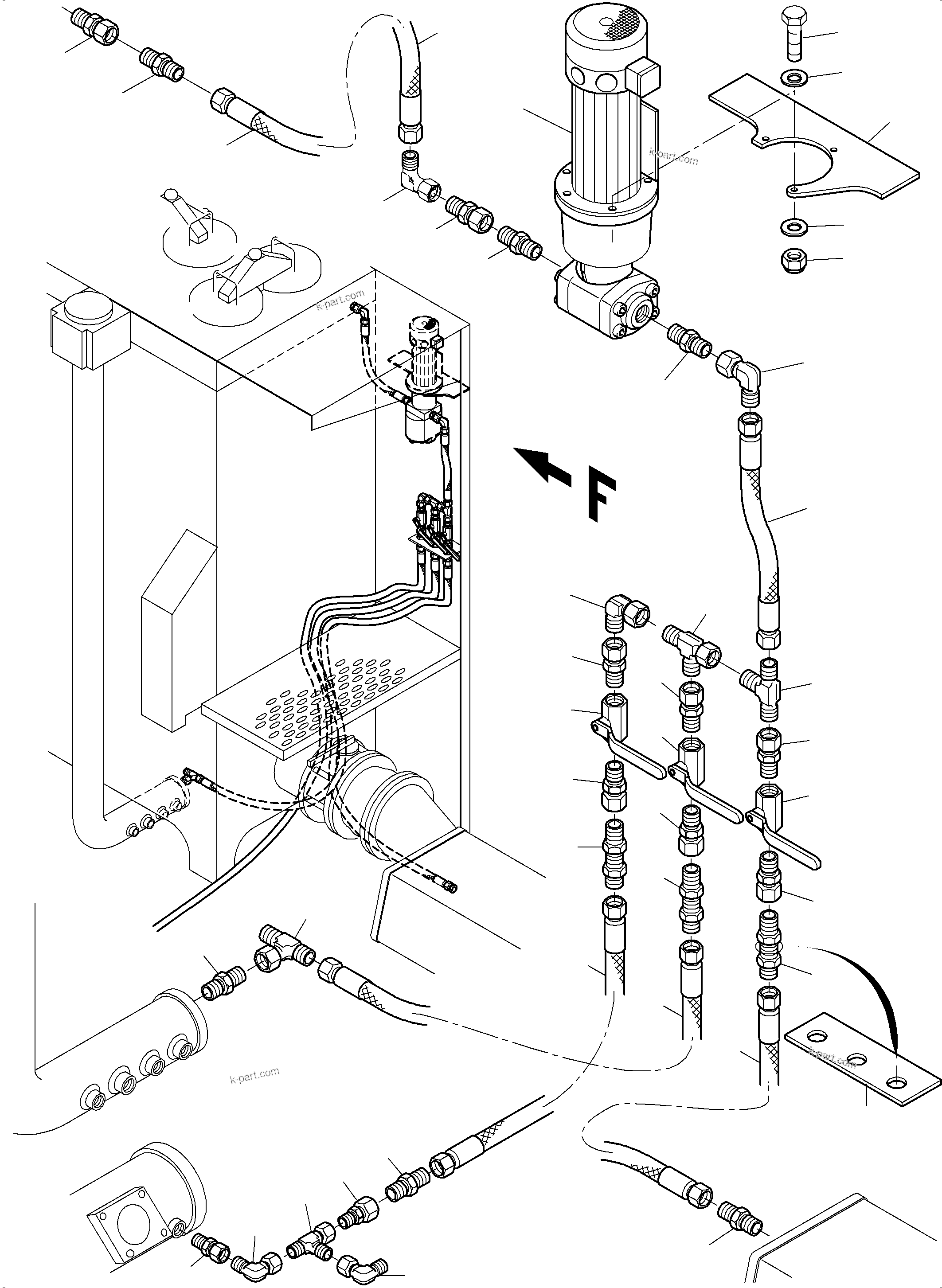

INSTALLATION - TRANSFUSING PUMP | PC5500-6 S/N 15182

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15182

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Pump unit	1	991-1619
?	308 556 99	Bolt	3
?	340 464 99	Washer	6
?	334 599 99	Nut	3
?	516 235 98	Socket	1
?	516 171 98	Socket	1
?	634 301 40	Union	1
?	374 460 99	Socket	3
?	516 162 98	Socket	2
?	576 471 40	Union	1
?	516 161 98	Union	1
?	516 849 98	Union	1
?	516 473 98	Socket	1
?	516 753 98	Ball cock	3
?	516 188 98	Socket	6
?	374 422 99	Socket	1
?	516 751 98	Union	3
?	507 557 98	Nut	3
?	551 198 40	Hose assy. DN 25x580	1
?	513 597 98	Hose assy. DN 32x560	1
?	517 997 98	Hose assy. DN 32x2300	2
?	943 013 40	Retainer	1
?	943 014 40	Retainer	1
?	517 998 98	Hose assy. DN 32x3600	1
?	516 160 98	Socket	3
?	516 281 98	Socket	1
?	551 457 40	Union	1
?	511 701 98	Socket	1
