AFE78-BX 930E-5 S/N A40274 - A40276,A40291 MARIGOLD

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-06-02853	HARNESS, WIRING - HYDRAULIC LADDER	1
?	MM0713	FLAT WASHER, HARDENED - M10	1
?	58F-60-00500	CYLINDER (1)	1
?	WB0536	FITTING, ELBOW - 45 DEG	1
?	MM0471	LOCKWASHER - M10	14
?	MM0461	FLAT WASHER - M10	16
?	MM0178	NUT - M10 X 1.50	9
?	58F-54-40260	PIN	2
?	MM0605	CAPSCREW - M10 X 1.50 X 25	3
?	WB3922	CLAMP, CUSHIONED - 11/16"	7
?	EM1398	SPACER	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	1
?	58D-06-11101	CONTROLLER, HYDRAULIC LADDER	1
?	MM0585	CAPSCREW - M6 X 1.00 X 35	2
?	58B-06-31200	RELAY	5
?	WB3097	CLAMP, CUSHIONED - 1/2"	1
?	VY0876	GROMMET	1
?	WB0582	FITTING, STRAIGHT	1
?	VC5344	FLAT WASHER - #10	5
?	MM0351	MACHINE SCREW - M5 X 0.8 X 20	5
?	MM0711	FLAT WASHER, HARDENED - M6	3
?	MM0582	CAPSCREW - M6 X 1.00 X 20	2
?	MM0611	CAPSCREW - M10 X 1.50 X 60	1
?	WB1300	CLAMP, CUSHIONED - 5/8"	5
?	HA6442	HOSE	1
?	58E-80-06230	BRACKET	1
?	MM0379	LOCKWASHER, EXTERNAL TOOTH - M5	5
?	08193-21012	CLIP	3
?	EK9883	SPACER	2
?	58F-60-41200	NOTE: (1) USE 58F-60-41200 SEAL KIT FOR SERVICE.	-1

Komatsu AFE78-BX 930E-5 S/N A40274 - A40276,A40291 MARIGOLD parts catalog PDF

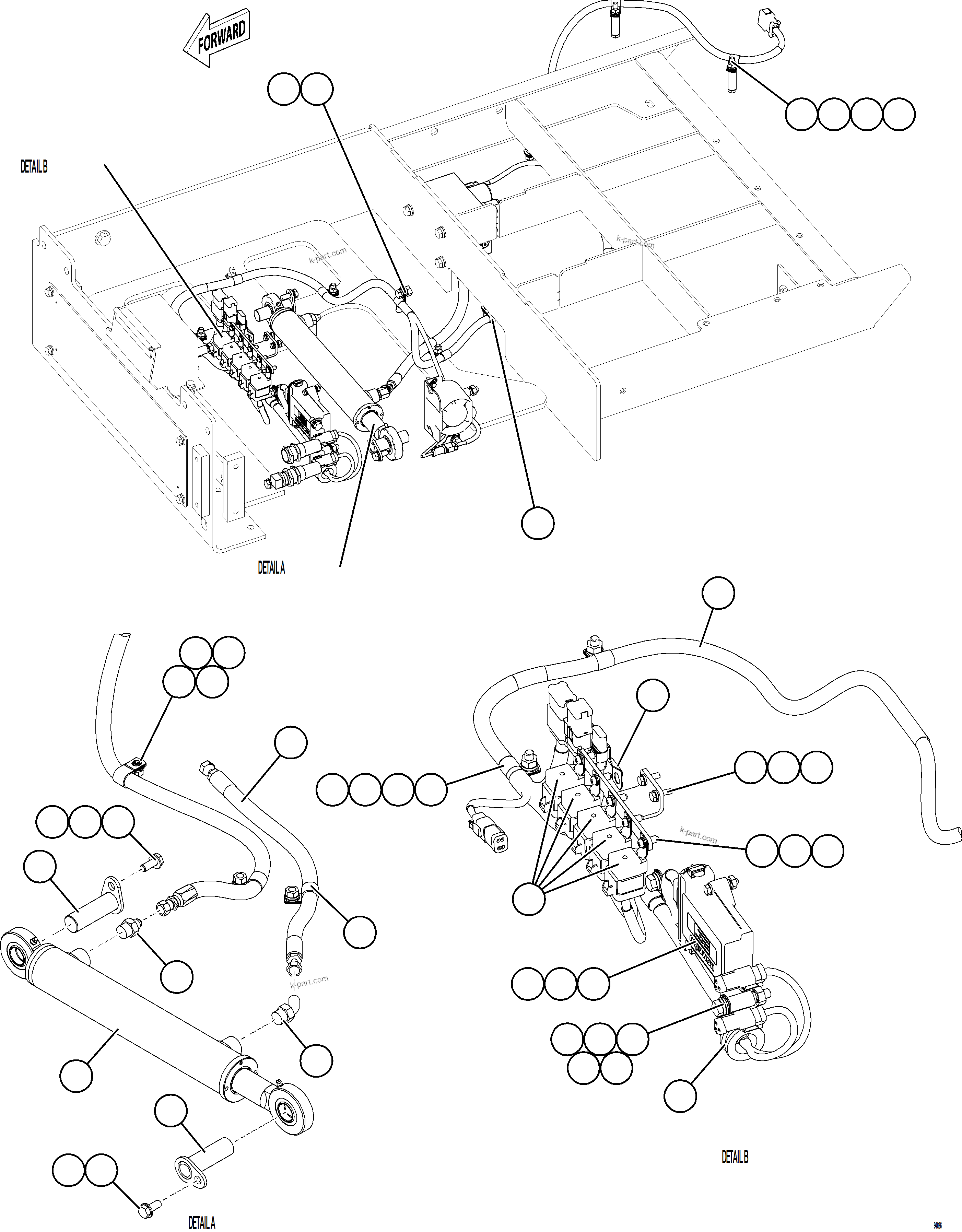

PLATFORM ASSEMBLY 2/3 58F-54-31000 (94026) in AFE78-BX 930E-5 S/N A40274 - A40276,A40291 MARIGOLD. Diagram image and parts list.
