AFE78-BP 930E-5 S/N A40221 - A40224,A40230 - A40231 THIESS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-41-50010	STEERING CYLINDER ASSEMBLY	1
?	EH4428	HOUSING, CYLINDER	1
?	VL7694	LOCKNUT, NYLON - 1 3/4" - 5NC (1)	1
?	VZ1988	BEARING (1)	1
?	PC0584	SEAL (1)	1
?	EH3825	PISTON	1
?	WA0436	O-RING (1)	1
?	WA1436	RING, BACKUP (1)	1
?	PC0554	BEARING, ROD (1)	1
?	58F-60-50000	GLAND	1
?	VM4571	CAPSCREW - 3/4" - 10NC X 2 1/2"	4
?	58F-41-50090	SEAL, BUFFER - 3 1/4" (1)	1
?	PC0553	SEAL, ROD (1)	1
?	PC0552	WIPER, ROD (1)	1
?	TD8511	CAPSCREW - 3/4" - 10NC X 3 1/2"	2
?	EM0242	ROD	1
?	WA2702	FLANGE, COVER (1)	2
?	H8524	CAPSCREW - 3/8" - 16NC X 5/8" (1)	8
?	VM0313	PLUG	3
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	16
?	C1540	LOCKWASHER - 1/2"	16
?	EK1030	RETAINER, ANTI-ROTATION	4
?	PC1686	BEARING, SPHERICAL	2
?	58F-SC-AK020	NOTE: (1) INCLUDED IN 58F-SC-AK020 OVERHAUL KIT.	-1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1

Komatsu AFE78-BP 930E-5 S/N A40221 - A40224,A40230 - A40231 THIESS parts catalog PDF

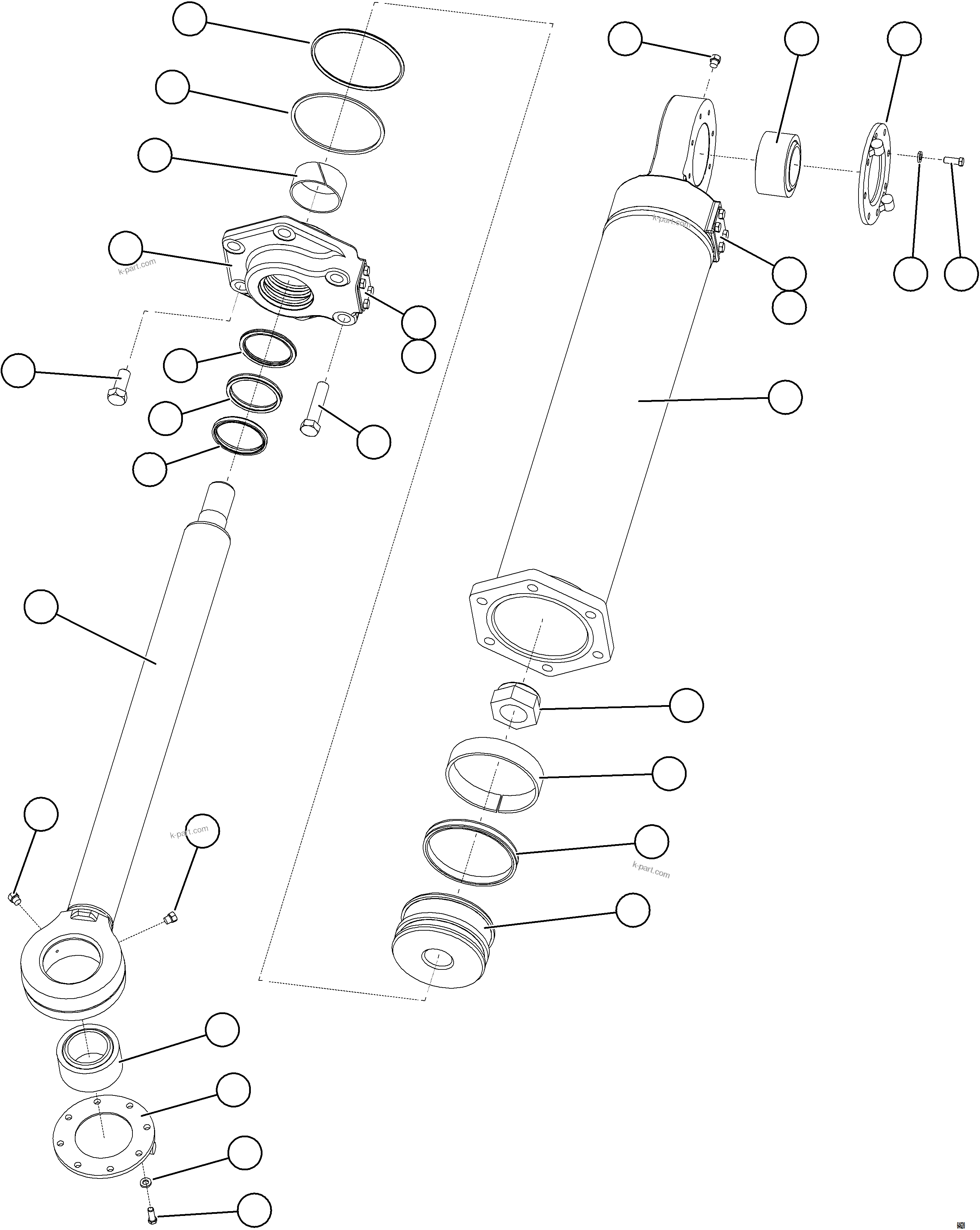

STEERING CYLINDER W/ BEARINGS 58F-41-50000 (64620) in AFE78-BP 930E-5 S/N A40221 - A40224,A40230 - A40231 THIESS. Diagram image and parts list.
