AFE78-BP 930E-5 S/N A40221 - A40224,A40230 - A40231 THIESS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58E-54-06714	STEERING COLUMN (SEE INDEX)	1	64612
?	58E-54-31810	SCREW - M4 X 0.7 X 12	7
?	58E-54-31981	GAP COVER PLATE	1
?	01252-71030	BOLT	4
?	MM0713	FLAT WASHER, HARDENED - M10	4
?	WB1304	CLAMP, CUSHIONED - 9/16"	2
?	58E-54-21420	WASHER, FENDER - M6	5
?	58E-09-00360	LOCKNUT, NYLON - M6 X 1.00	2
?	58E-06-20402	TURN SIGNAL WIPER CONTROL SWITCH	1
?	58F-09-00000	CAPSCREW - M5 X 0.8 X 25	2
?	WB3104	FLAT WASHER - M5	7
?	WB3103	LOCKWASHER - M5	2
?	MM0373	NUT - M5 X 0.8	2
?	TD2186	GROMMET, RUBBER	1
?	58E-54-31873	BRACKET, SPEED CONTROL SWITCH	1
?	58E-06-60203	SPEED CONTROL SWITCH	1
?	MM0351	MACHINE SCREW - M5 X 0.8 X 20	3
?	58E-54-06620	SPACER	1
?	01584-00504	NUT	3
?	MM0580	CAPSCREW - M6 X 1.00 X 14	5
?	MM0459	FLAT WASHER - M6	2
?	58E-54-31971	BEARING	1
?	58E-54-31823	BRACKET, SWITCH MOUNTING	1
?	1259564H1	SPLICE, JIFFY - #16	1
?	58E-54-28540	COVER, COUPLING - STEERING	1
?	WB1300	CLAMP, CUSHIONED - 5/8"	1
?	WB1302	CLAMP, CUSHIONED - 5/16"	1
?	MM0610	CAPSCREW - M10 X 1.50 X 50	2
?	MM0461	FLAT WASHER - M10	2
?	EL3892	SPACER	1
?	TY8375	SPACER	1
?	58B-06-20020	BRACKET	2
?	58E-54-31471	MOUNTING BRACKET, HORN SWITCH	4
?	01023-60320	SCREW	2
?	58D-09-80400	FLAT WASHER - #4	2
?	MM0370	NUT - M3 X 0.5	2
?	58E-54-27990	COVER ASSEMBLY, COUPLING - STEERING	1

Komatsu AFE78-BP 930E-5 S/N A40221 - A40224,A40230 - A40231 THIESS parts catalog PDF

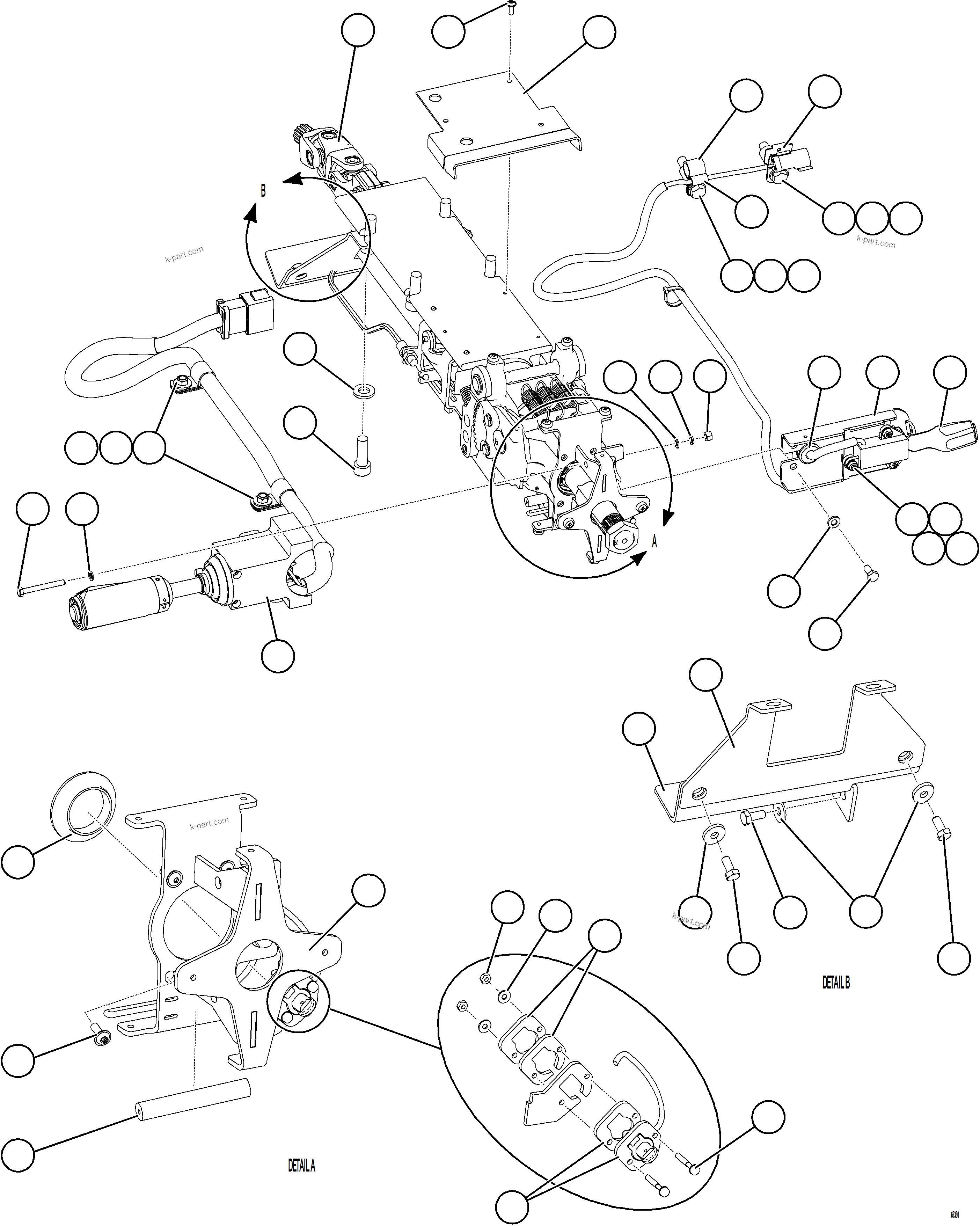

STEERING COLUMN 2/2 (65350) in AFE78-BP 930E-5 S/N A40221 - A40224,A40230 - A40231 THIESS. Diagram image and parts list.
