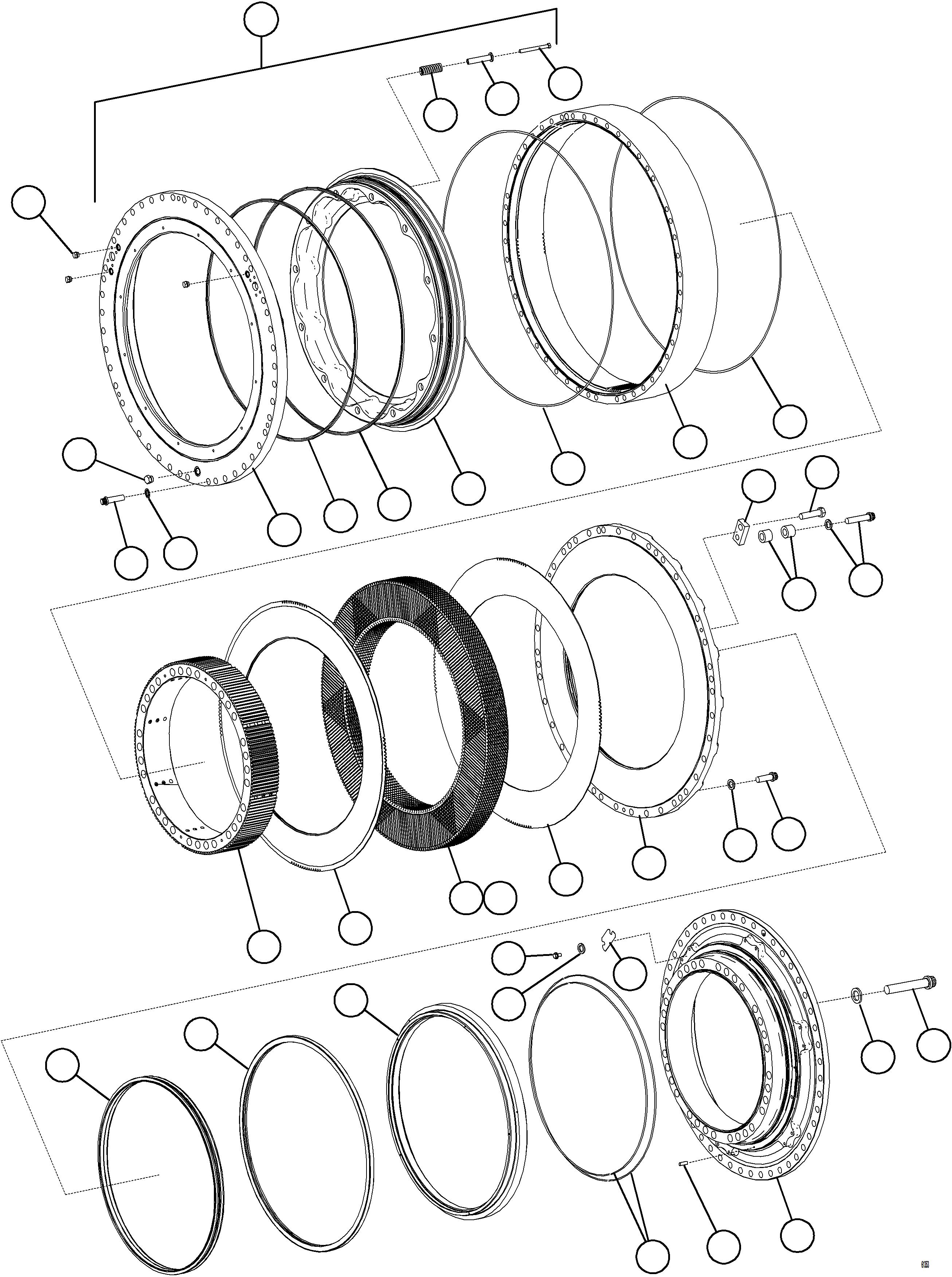

AFE75-AM 980E-5 S/N A50142 - A50143 SPENCE

9 3 13 16 1 4 2 5 8 7 6 10 11 12 10 14 14 15 17 19 18 19 31 20 21 22 23 25 26 27 28 29 30 32 34 33 35 24

#	Part Number	Partname	Quantity
1	EM1141	PISTON ASSEMBLY	1
2	EM1140	HOUSING, PISTON	1
3	58B-33-00170	SEAL ASSEMBLY (4)	1
4	58B-33-00180	SEAL ASSEMBLY (4)	1
5	EJ5849	PISTON	1
6	EJ6986	SPRING, COMPRESSION	12
7	EJ6985	GUIDE, SPRING	12
8	VN9149	CAPSCREW - 1/2" - 13NC X 4 1/2"	12
9	VM0317	PLUG	1
10	EM8371	DAMPER (1)	2
11	EM8365	DISC, SEPARATOR (1)	10
12	EM8366	DISC, FRICTION (1)	11
13	EK3514	GEAR, INNER	1
14	EH7197	O-RING (4)	2
15	EM1142	GEAR, OUTER	1
16	VM0315	PLUG	3
17	58B-32-20010	PLATE, BACK	1
18	WA0908	CAPSCREW - 1" - 8NC X 3"	39
19	WA4174	FLAT WASHER - 1"	42
20	PC1431	SEAL, OIL (4)	1
21	PC0651	SEAL ASSEMBLY (4)	1
22	58B-33-20010	CARRIER, SEAL	1
23	EH7195	O-RING (2)/(4)	2
24	TV7355	PIN, DOWEL	2
25	58B-33-20000	ADAPTER, HUB	1
26	WB1231	CAPSCREW - 1 1/4" - 12NF X 8"	32
27	58B-09-50080	FLAT WASHER, HARDENED - 1 1/4"	32
28	C1612	CAPSCREW - 1/2" - 13NC X 1"	12
29	WA0360	FLAT WASHER, HARDENED - 1/2"	12
30	ED3755	SHIM - .020"	-1
30	ED3756	SHIM - .010"	-1
31	EJ6997	CAPSCREW - 1" - 8NC X 3 1/2"	6
32	EK5266	PLATE (3)	3
33	C1670	CAPSCREW - 1" - 8NC X 4" (3)	3
34	EK5265	SPACER (3)	6
35	VN6848	CAPSCREW, SOCKET HEAD - 1" - 8NC X 5 1/2" (3)	3
35	WA4174	FLAT WASHER - 1" (3)	6
NS\|38	58B-BK-AK060	NOTE: (1) INCLUDED IN 58B-00-00390 BRAKE DISC KIT.	-1
NS\|39	58B-MH-AK030	(2) INCLUDED IN 58B-MH-AK030 REAR BRAKE	-1
NS\|40		MOUNTING KIT.	-1
NS\|41		(3) USED FOR ASSEMBLY AND STORAGE ONLY.	-1
NS\|42		REMOVE WHEN INSTALLED ON THE TRUCK.	-1
NS\|43	58B-BK-AK070	(4) INCLUDED IN 58B-33-AK070 REAR BRAKE	-1
NS\|44		OVERHAUL KIT.	-1
