AFE57-KE 830E-1AC S/N A41140 - A41141 KBI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VW7990	CAP, PROTECTIVE	3
?	TA4410	INJECTOR ASSEMBLY, 3-PIECE	1
?	VS1947	INJECTOR (SEE INDEX)	3	68822
?	58E-60-20720	ADAPTER, BOLT (1)	3
?	58E-60-20710	MANIFOLD, THREE INJECTOR	1
?	WB0252	FITTING, ELBOW - 90 DEG	3
?	WB3092	CLAMP, CUSHIONED - 7/8"	6
?	MM0178	NUT - M10 X 1.50	4
?	MM0471	LOCKWASHER - M10	4
?	MM0461	FLAT WASHER - M10	4
?	58C-04-00110	HOSE	1
?	WB3855	CLAMP, CUSHIONED - 13/16"	3
?	EM1393	SPACER	3
?	WB0391	FITTING, TEE	1
?	WB0418	FITTING, TEE	1
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	TD0789	CAPSCREW - 3/8" - 16NC X 1 3/4"	2
?	TC1231	LOCKWASHER - 3/8"	2
?	TR4436	FLAT WASHER, HARDENED - 3/8"	2
?	C5770	PLUG, PIPE - 3/8"	1
?	58F-60-42260	HOSE	1
?	HA0570	HOSE	1
?	HA8642	HOSE	2
?	WB1300	CLAMP, CUSHIONED - 5/8"	1
?	58E-60-11301	HOSE	1
?	58E-60-20061	HOSE	1
?		NOTE: (1) TORQUE TO 45-50 FT-LBS.	-1

Komatsu AFE57-KE 830E-1AC S/N A41140 - A41141 KBI parts catalog PDF

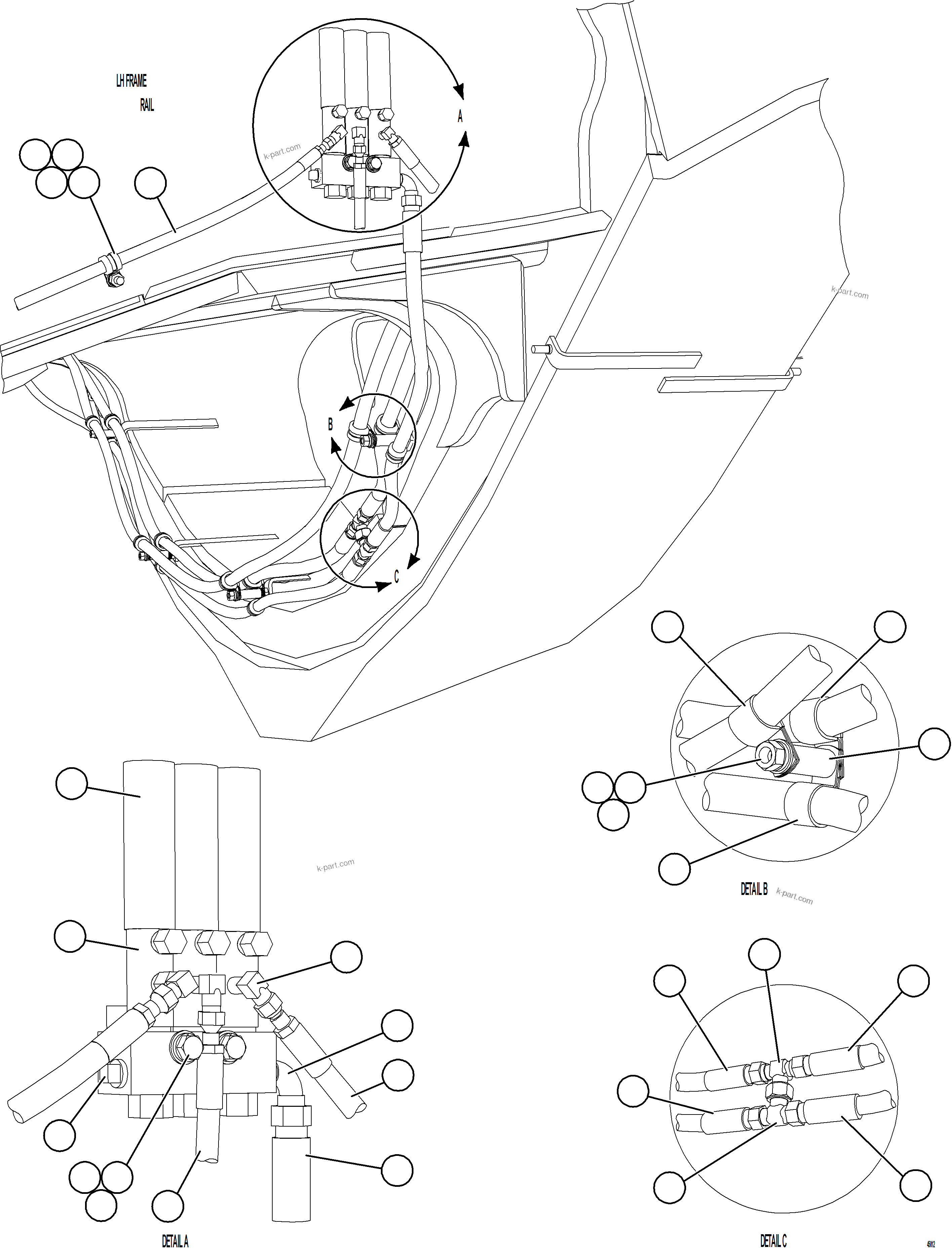

AUTOMATIC LUBRICATION - LH FRAME RAIL PIPE 1/2 (45012) in AFE57-KE 830E-1AC S/N A41140 - A41141 KBI. Diagram image and parts list.
