AFE57-KE 830E-1AC S/N A41140 - A41141 KBI

1 26 9 8 12 11 10 7 6 4 36 2 24 23 7 11 10 9 12 14 25 4 22 23 7 5 18 17 19 11 9 12 21 20 16 15 11 12 14 10 3 13 27 29 28 30 30 31 29 1 31 32 33 32 31 18 35 31 18 34

#	Part Number	Partname	Quantity
1	GE1379	PLUG	8
2	XA4249	BUS BAR	4
3	GE1402	BUS BAR	1
4	XA5277	BUS BAR	1
5	XA5279	BUS BAR	1
6	GE0756	LINK SENSOR, AC-DC	1
7	PB3348	INSULATOR	35
8	XA3143	STUD	30
9	VE3030	FLAT WASHER - 1 1/4" OD	-1
10	VE4519	FLAT WASHER - 1/2"	-1
11	VE4699	LOCKWASHER - 1/2"	-1
12	VE4698	NUT - 1/2" - 13NC	-1
13	GE1399	BUS BAR	1
14	XA4254	CAPSCREW - 1/2" - 13NC X 2 1/4"	-1
15	GE1396	BUS BAR	1
16	XA5278	BUS BAR	1
17	XA4255	CAPSCREW - 3/8" - 16NC X 2"	13
18	VE4516	WASHER	12
19	VE4515	FLAT WASHER - 3/8"	-1
20	GE1394	BUS BAR, INSULATED	1
21	VE5061	CAPSCREW - 1/2" - 13NC X 2 1/2"	4
22	TR4731	CAPSCREW - 5/16" - 18NC X 1"	2
23	GE0579	STUD	10
24	GE1415	BRACKET	4
25	GE1401	BUS BAR	1
26	GE1406	BUS BAR	4
27	GE1416	GROMMET	1
28	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
29	WA0720	FLAT WASHER, HARDENED - 3/8"	10
30	VE3918	FLAT WASHER	-1
31	VE4687	LOCKWASHER - 3/8"	-1
32	VE4700	NUT - 3/8" - 16NC	-1
33	XA4255	CAPSCREW - 3/8" - 16NC X 2"	-1
34	GE1420	CAPSCREW - 3/8" - 16NC X 2 1/2"	4
35	VE4500	CAPSCREW - 3/8" - 16NC X 1 3/4"	-1
36	VS9008	CONNECTOR	4

Komatsu AFE57-KE 830E-1AC S/N A41140 - A41141 KBI parts catalog PDF

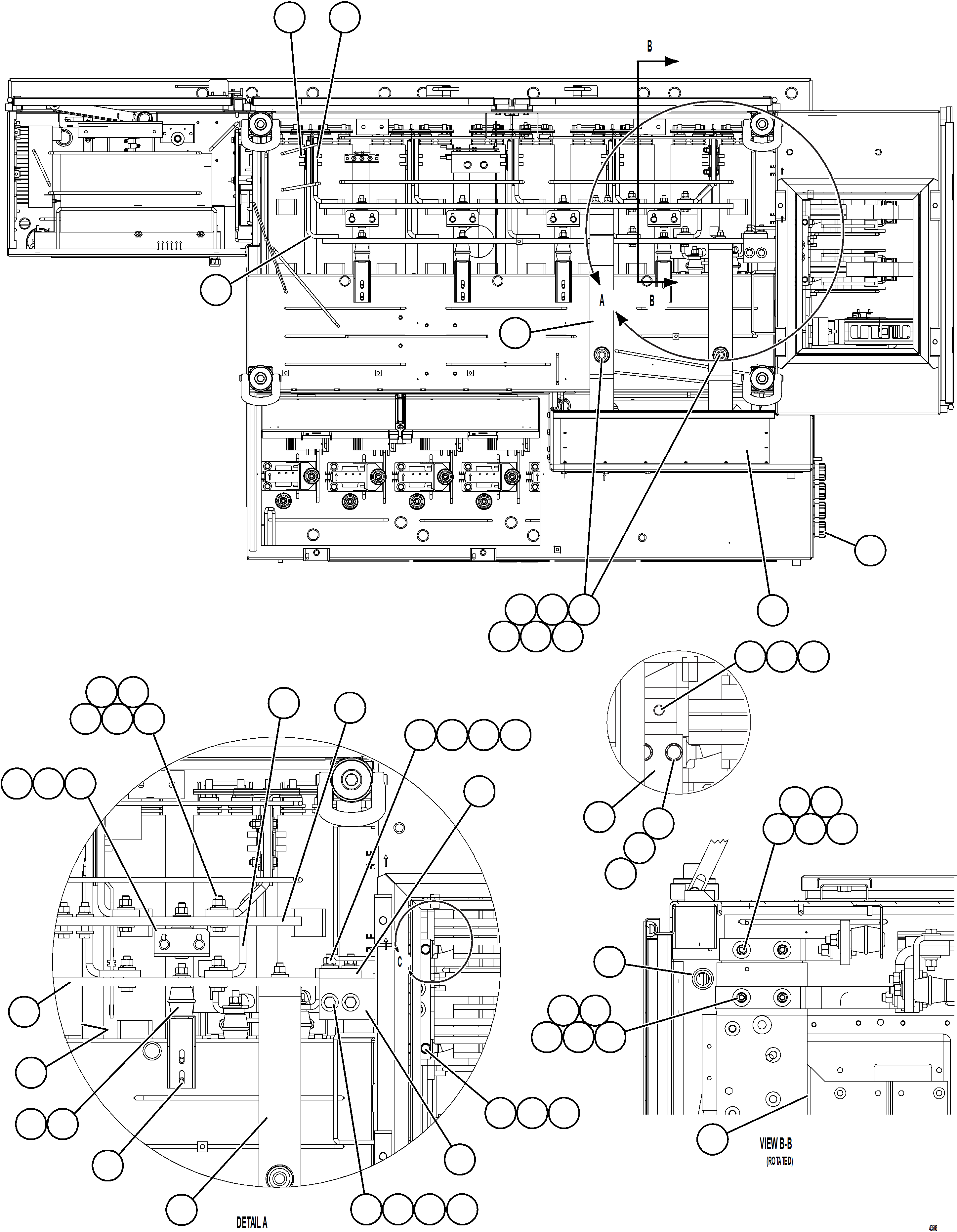

CONTROL CABINET - TOP VIEW 58E-43-00022 (43508) in AFE57-KE 830E-1AC S/N A41140 - A41141 KBI. Diagram image and parts list.
