AFE57-KE 830E-1AC S/N A41140 - A41141 KBI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
?	C0312	LOCKWASHER - 3/8"	2
?	TM9278	PROTECTOR	1
?	TZ8637	PLUG, SENSOR	1
?	TY8879	PLUG, VENT (1)	1
?	VN9140	CAPSCREW - 3/4" - 10NC X 4"	48
?	WA0362	FLAT WASHER - 3/4"	48
?	R1073	DRIVE SCREW - #6 X 3/16"	8
?	WA2892	PLATE, DANGER	2
?	H2981	BALL, STEEL (1)	4
?	VD5076	GASKET, FLAT (2)	1
?	58E-50-00220	HOUSING	1
?	58E-50-50090	RING, BACKUP (1)	4
?	PC0627	SEAL, WIPER - 14" (1)	1
?	PC0625	SEAL, ROD DOUBLE LIP - 14" (1)	1
?	PC0626	SEAL, ROD BUFFER - 14" (1)	1
?	58E-50-10400	RETAINER, BEARING - LOWER	1
?	58E-50-50080	O-RING (1)	4
?	VW4451	NUT, WHEEL	1
?	VC2629	PIN (1)	1
?	EH6529	STOP, PISTON	1
?	EH6536	KEY, SQUARE	1
?	58E-50-00011	BEARING RETAINER, UPPER	1
?	PC2871	BEARING, UPPER	1
?	VN9096	CAPSCREW - 7/8" - 9NC X 2 3/4"	12
?	WA0363	FLAT WASHER, HARDENED - 7/8"	12
?	EH7326	CAP, SUSPENSION	1
?	PC2880	BEARING, LOWER	1
?	PB2194	CHARGING VALVE ASSEMBLY (2)	1
?	58E-50-00130	PISTON ASSEMBLY	1
?	58E-50-00140	PISTON	1
?	WA0439	O-RING (1)	1
?	WA1439	RING, BACKUP (1)	1
?	XB4388	PLUG, PISTON	1
?	XB4389	RING, RETAINER	3
?	XB4390	PLATE, RETAINER	1
?	VN9032	CAPSCREW - 1/2" - 13NC X 1"	1
?	WA0360	FLAT WASHER, HARDENED - 1/2"	1
?	VM0314	PLUG (1)	1
?	58B-50-00900	BOSS, PISTON	4
?		NOTE: NS = NOT SHOWN	-1
?	WA3925	DECAL, HYDRAIR II	1
?	AK4063	SUSPENSION OIL MIXTURE - 5 GAL	-1
?	AK4064	SUSPENSION OIL MIXTURE - 55 GAL	-1
?	58E-FS-AK010	NOTE: (1) INCLUDED IN 58E-FS-AK010 SEAL KIT.	-1
?	RK1887	(2) INCLUDED IN RK1887 CHARGING VALVE REPAIR KIT.	-1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1

Komatsu AFE57-KE 830E-1AC S/N A41140 - A41141 KBI parts catalog PDF

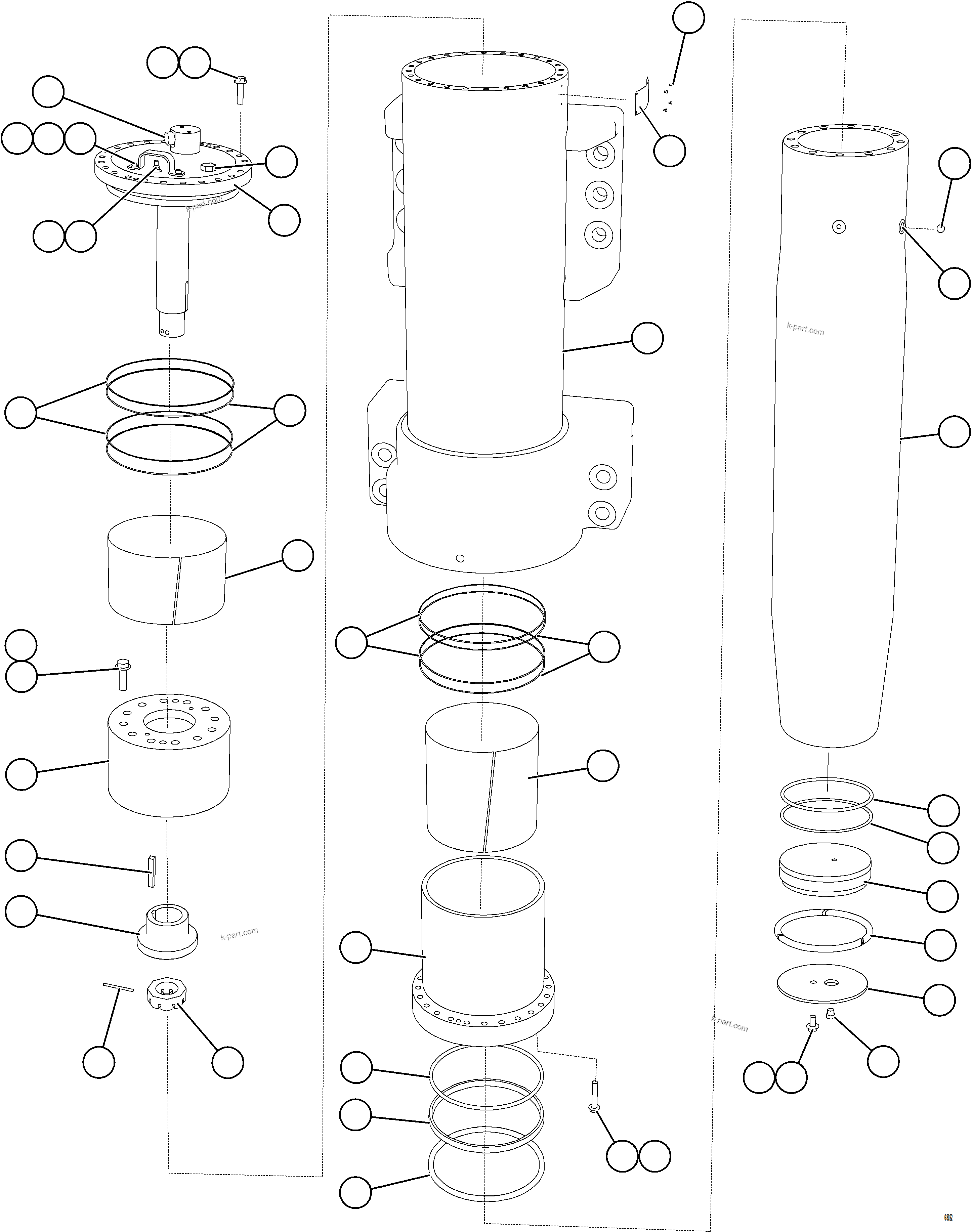

FRONT SUSPENSION 58E-50-00501 (68022) in AFE57-KE 830E-1AC S/N A41140 - A41141 KBI. Diagram image and parts list.
