AFE77-BL 830E-5 S/N A50167 - A50168 CONUMA COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-41-00100	STEERING CYLINDER ASSEMBLY	1
?	EH5933	HOUSING	1
?	VL7694	LOCKNUT, NYLON - 1 3/4" - 5NC (1)	1
?	VL7699	BEARING (1)	1
?	PC0585	PISTON SEAL ASSEMBLY (1)	1
?	EH5932	PISTON	1
?	SL8048	O-RING (1)	1
?	WA1433	RING, BACKUP (1)	1
?	PB9518	BEARING (1)	1
?	58E-60-00610	GLAND	1
?	TD7882	CAPSCREW - 3/4" - 10NC X 1 3/4" (1)	4
?	58E-41-00010	SEAL, BUFFER - 3" (1)	1
?	PC0557	SEAL, ROD (1)	1
?	PB8937	WIPER, ROD (1)	1
?	TD8516	CAPSCREW - 3/4" - 10NC X 3 1/4" (1)	2
?	EL7953	ROD	1
?	WA2702	FLANGE, COVER (1)	2
?	H8524	CAPSCREW - 3/8" - 16NC X 5/8" (1)	8
?	VM0313	PLUG	3
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	16
?	TC1231	LOCKWASHER - 3/8"	16
?	EK3384	RETAINER, ANTI-ROTATION	2
?	PC1682	BEARING, SPHERICAL	2
?	58E-SC-AK031	NOTE: (1) INCLUDED IN 58E-SC-AK031 STEERING CYLINDER KIT.	-1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1

Komatsu AFE77-BL 830E-5 S/N A50167 - A50168 CONUMA COAL parts catalog PDF

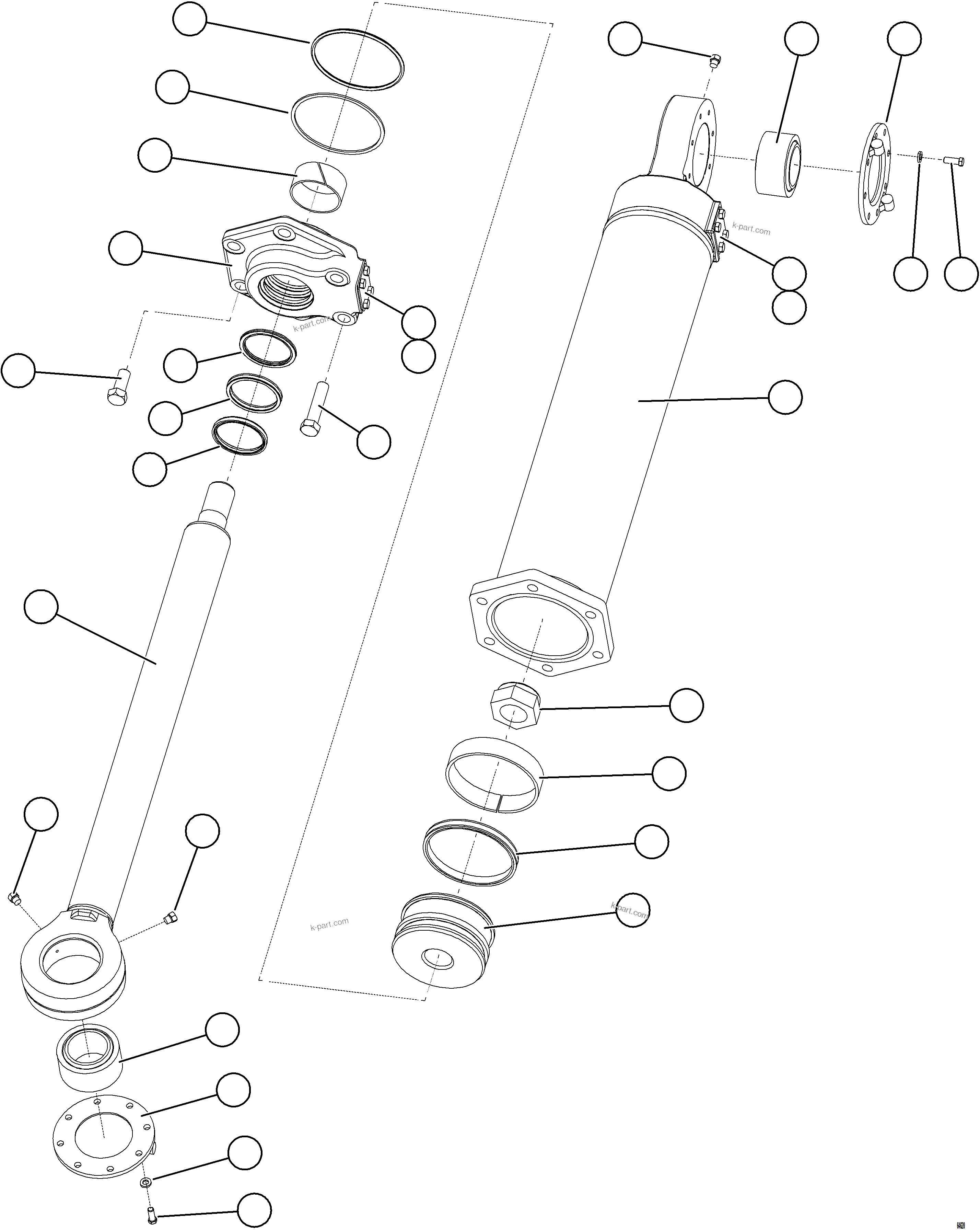

STEERING CYLINDER W/ BEARINGS 58E-41-00110 (64620) in AFE77-BL 830E-5 S/N A50167 - A50168 CONUMA COAL. Diagram image and parts list.
