AFE77-BL 830E-5 S/N A50167 - A50168 CONUMA COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PC3290	DIPSTICK	1
?		O-RING (1)	1
?	BF5489	SCREW, SELF-TAPPING	6
?		GASKET (1)	6
?	PC3292	COVER, HOUSING	1
?		GASKET, COVER (1)	1
?	58F-98-40710	HOUSING, PUMP	1
?		SEAL, SHAFT (1)	1
?	58F-98-40430	BEARING, BALL	1
?	58F-98-40470	RING, RETAINING	1
?	58F-98-40640	SHAFT, PUMP	1
?		O-RING (1)	1
?	58F-98-40480	RING, RETAINING	1
?	58F-98-40420	BEARING, BALL	1
?	58F-98-40490	RING, RETAINING	1
?		O-RING (1)	1
?	58F-98-40390	COVER, BEARING	1
?	58F-98-40280	LOCKWASHER	1
?	58F-98-40440	SCREW	4
?	58F-98-40300	PLUG, DRAIN	1
?		WASHER, BACKUP (1)	2
?		O-RING (1)	2
?		O-RING (1)	2
?	BF5502	NUT	2
?	BF5503	BEARING, BRONZE	1
?		O-RING (1)	1
?		WASHER, BACKUP (1)	1
?		O-RING (1)	1
?	58F-98-40690	TUBE, HOUSING	1
?	58F-98-40650	RING, RETAINING	1
?	BF5505	PLUG, SHOVEL	1
?	BF5506	RING, RETAINING	1
?	58F-98-40740	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
?		58F-98-40740 SEAL KIT.	-1

Komatsu AFE77-BL 830E-5 S/N A50167 - A50168 CONUMA COAL parts catalog PDF

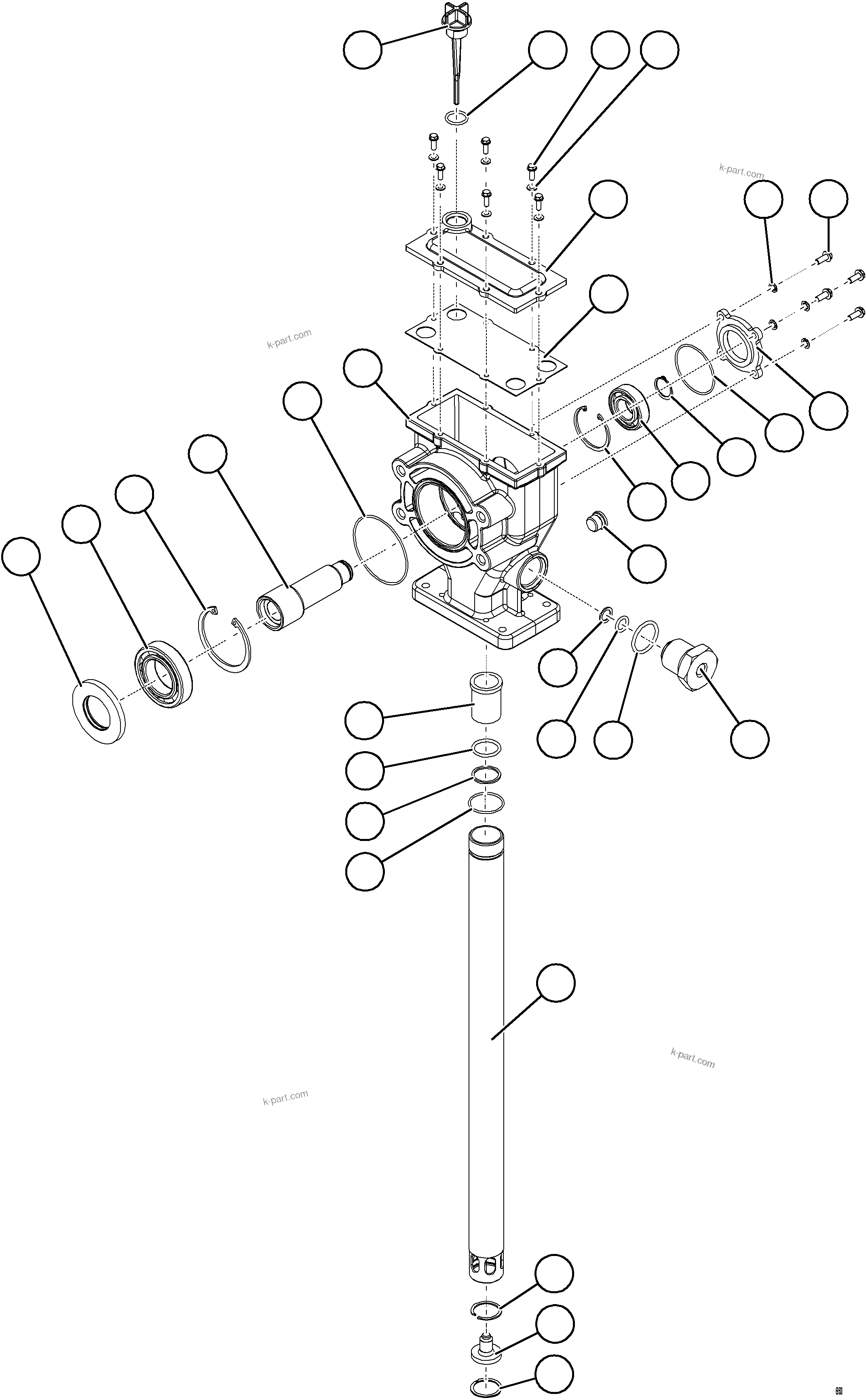

LUBE PUMP ASSEMBLY 1/3 58F-98-40240 (69500) in AFE77-BL 830E-5 S/N A50167 - A50168 CONUMA COAL. Diagram image and parts list.
