SAA4D107E-1 S/N 26527701-UP (For PC160LC-8)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	01435-00825	Bolt, Flanged	6	SN: 26626843-UP
?	01435-60825	Bolt, Flanged	2	SN: 26626843-UP
?	01435-60850	Bolt, Flanged	2	SN: 26626843-UP
?	6754-71-5340	Connector	1	SN: 26626843-UP
?	6751-71-1210	Common Rail Assembly	1	SN: 26626843-UP
?	6754-72-1212	Sensor, Pressure	1	SN: 26626843-UP
?	6754-72-1221	Valve	1	SN: 26626843-UP
?	3977726	Common Rail	1	SN: 26626843-UP
?	6754-71-5220	Tube	1	SN: 26626843-UP
?	6754-71-5230	Tube	1	SN: 26626843-UP
?	6754-71-5240	Tube	1	SN: 26626843-UP
?	6751-71-5220	Tube	1	SN: 26626843-UP
?	6754-71-5350	Seal, Washer	1	SN: 26626843-UP
?	6754-21-1191	Nozzle, Piston Cooling	4	SN: 26626843-UP
?	6754-21-1180	Joint	4	SN: 26626843-UP
?	6737-32-3121	Rod Assembly	4	SN: 26626843-UP
?	6732-31-3320	Screw	2	SN: 26626843-UP
?	6732-31-3132	Bushing	1	SN: 26626843-UP \| SCC: C3
?	6754-31-3410	Bearing	4	SN: 26626843-UP
?	6754-39-3410	Bearing, Upper, Undersize, 0.25mm	4	SN: 26626843-UP
?	6754-38-3410	Bearing, Upper, Undersize, 0.50mm	4	SN: 26626843-UP
?	6754-37-3410	Bearing, Upper, Undersize, 0.75mm	4	SN: 26626843-UP
?	6754-36-3410	Bearing, Upper, Undersize, 1.00mm	4	SN: 26626843-UP
?	6732-31-3420	Bearing	4	SN: 26626843-UP
?	6738-39-3400	Bearing, Lower, Undersize, 0.25mm	4	SN: 26626843-UP
?	6738-38-3400	Bearing, Lower, Undersize, 0.50mm	4	SN: 26626843-UP
?	6738-37-3400	Bearing, Lower, Undersize, 0.75mm	4	SN: 26626843-UP
?	6738-36-3400	Bearing, Lower, Undersize, 1.00mm	4	SN: 26626843-UP
?	6751-41-1100	Camshaft Assembly	1	SN: 26626843-UP
?	6751-41-1110	Camshaft Assembly	1	SN: 26626843-UP
?		Cam	1	SN: 26626843-UP \| SCC: C1
?	6732-21-6150	Pin, Dowel	1	SN: 26626843-UP
?	6754-41-1120	Pin, Dowel	1	SN: 26626843-UP
?	6754-41-1130	Bolt	2	SN: 26626843-UP
?	6751-41-1140	Ring	1	SN: 26626843-UP
?	6754-41-1150	Gear	1	SN: 26626843-UP
?	6754-11-3102	Injector	4	SN: 26626843-UP
?	6754-11-3130	Gasket	1	SN: 26626843-UP \| KIT-FLAG: S
?	6754-11-3140	O-ring	1	SN: 26626843-UP \| KIT-FLAG: S
?	6742-01-2630	Bolt	8	SN: 26626843-UP
?	6754-71-5541	Retainer	4	SN: 26626843-UP
?	6754-71-5511	Connector Assembly	4	SN: 26626843-UP
?	6754-11-3110	Clamp	4	SN: 26626843-UP
?	6754-41-1161	Support	1	SN: 26626843-UP
?	01435-60816	Bolt, Flanged	2	SN: 26626843-UP
?	6754-31-2410	Pin	4	SN: 26626843-UP
?	6732-31-2420	Ring	8	SN: 26626843-UP
?	6754-31-2112	Piston	4	SN: 26640550-UP
?	6754-31-2111	Piston	4	SN: 26626843-26640549 \| SCC: A1
?	6754-31-2330	Ring, Oil	4	SN: 26626843-UP
?	6754-31-2310	Ring, Top	4	SN: 26626843-UP
?	6754-31-2320	Ring, Second	4	SN: 26626843-UP
?	6751-11-1050	Head, Cylinder	1	SN: 26664696-UP
?	5361608		1	SN: 26626843-26664695
?	5311253		1	SN: 26626843-26649485 \| SCC: B1
?	6744-11-1020	Collet	32	SN: 26626843-UP
?	6754-41-4210	Valve, Exhaust	8	SN: 26626843-UP
?	6754-41-4110	Valve, Intake	8	SN: 26626843-UP
?	6754-41-4440	Spring	16	SN: 26664696-UP
?	6754-41-4432	Spring	16	SN: 26626843-26664695
?	6754-41-4510	Retainer	16	SN: 26626843-UP
?	6754-41-4540	Seal	16	SN: 26649486-UP
?	6754-41-4541	Seal	16	SN: 26626843-26649485 \| SCC: A1
?	6751-11-1102	Head, Cylinder	1	SN: 26626843-UP
?	6754-11-1150	Plug, Expansion	5	SN: 26626843-UP
?	6735-21-5531	Plug, Expansion	7	SN: 26626843-UP
?	6754-11-1170	Insert	8	SN: 26626843-UP
?	6754-11-1180	Insert	8	SN: 26626843-UP
?	6744-11-1070	Plug, Expansion	1	SN: 26626843-UP
?	6754-11-1160	Plug, Expansion	2	SN: 26626843-UP
?		Head	1	SN: 26626843-UP \| SCC: C1
?	5311250		1	SN: 26626843-UP
?	6754-11-1610	Bolt	18	SN: 26626843-UP
?	6751-11-1810	Gasket	1	SN: 26626843-UP \| KIT-FLAG: S
?		[A1]-This part and the part specified in the line immediately above are interchangeable.	-1	SN: UP
?		[B1]-This shows discontinued part. The part specified in the above line is supplied instead.	-1	SN: UP
?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
?		[C3]-This indicates a part supplied as semi-finished. It requires additional work before installation.	-1	SN: UP

Komatsu SAA4D107E-1 S/N 26527701-UP (For PC160LC-8) parts catalog PDF

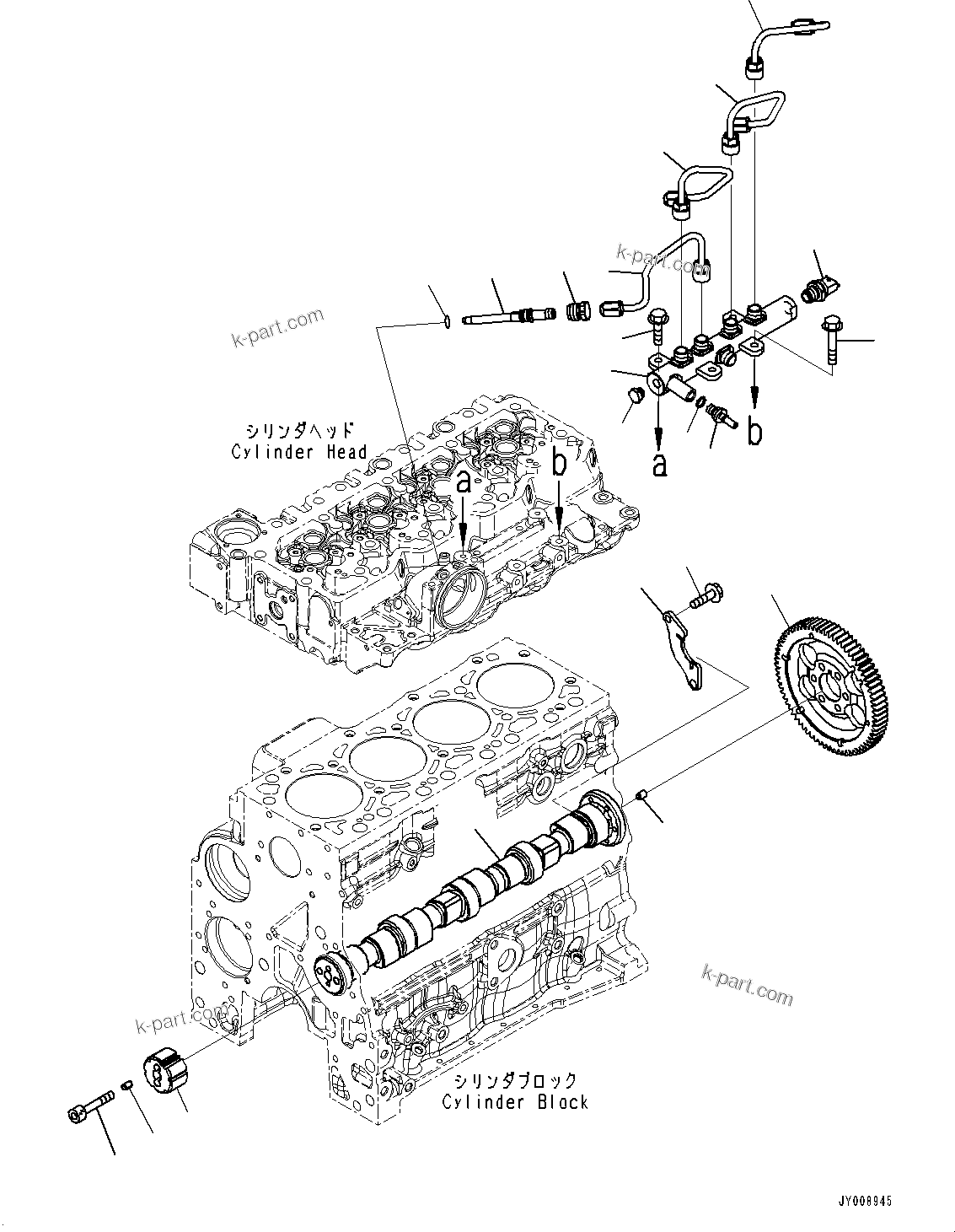

PARTS PERFORMANCE, (#26626843-) (APP10-003001) in SAA4D107E-1 S/N 26527701-UP (For PC160LC-8). Diagram image and parts list.
