SAA4D95LE-7BB S/N 800001-UP (For D39EX-24/D39EXI-24/D39PX-24/D39PXI-24)

1 2 3 4 5 6 7 8 9 10 11 12 13 14

#	Part Number	Partname	Quantity	Options
1	6755-81-1900	Sensor, Pressure	1	SN: 800001-UP
2	01252-60520	Bolt, Hexagon Socket Head	1	SN: 800001-UP
3	01640-20508	Washer	1	SN: 800001-UP
4	6275-81-9620	Bracket	1	SN: 800001-UP
5	01435-01020	Bolt	2	SN: 800001-UP
6	6754-81-2702	Sensor, Temperature and Pressure	1	SN: 800001-UP
6	6754-81-2710	O-ring	1	SN: 800001-UP
7	01252-60416	Bolt, Hexagon Socket Head	1	SN: 800001-UP
8	01640-20408	Washer	1	SN: 800001-UP
9	6271-81-9201	Sensor, Position	1	SN: 800001-UP
9		Sensor, Position	1	SN: 800001-UP \| SCC: C1
9	6271-81-9220	O-ring	1	SN: 800001-UP \| KIT-FLAG: S
10	01435-00820	Bolt	1	SN: 800001-UP
11	6261-81-2902	Sensor Assembly, Position	1	SN: 800001-UP
11		Sensor, Position	1	SN: 800001-UP \| SCC: C1
11	6271-81-9220	O-ring	1	SN: 800001-UP \| KIT-FLAG: S
12	01435-00820	Bolt	1	SN: 800001-UP
13	6261-81-6901	Sensor Assembly, Temperature	1	SN: 800001-UP
13	6216-84-9740	Seal	1	SN: 800001-UP \| KIT-FLAG: S
14	6271-81-1940	Switch, Pressure	1	SN: 800001-UP
14		Switch, Pressure	1	SN: 800001-UP \| SCC: C1
14	6219-81-1990	O-ring	1	SN: 800001-UP

Komatsu SAA4D95LE-7BB S/N 800001-UP (For D39EX-24/D39EXI-24/D39PX-24/D39PXI-24) parts catalog PDF

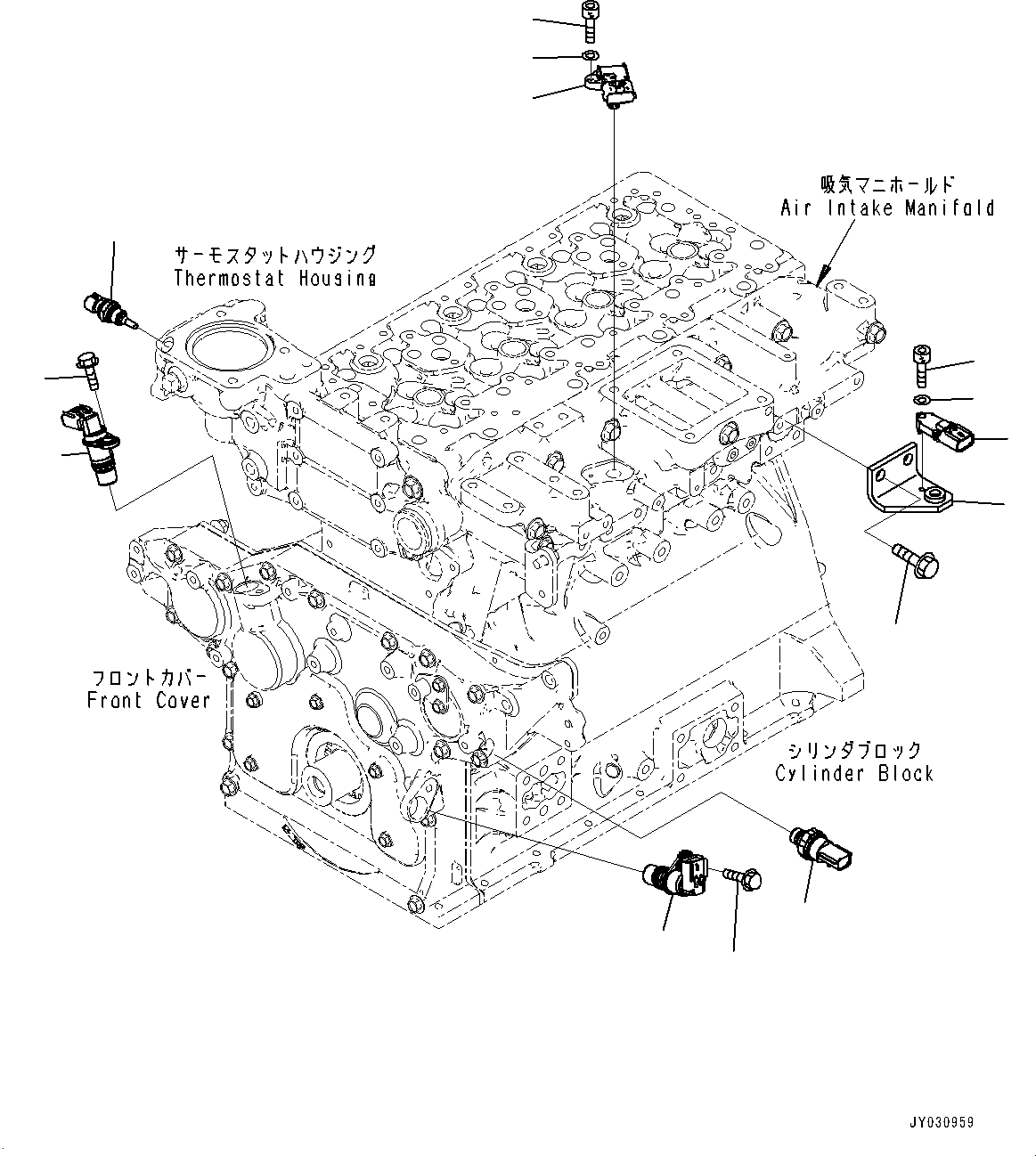

ENGINE CONTROLLER, MODULE (#800001-) (APH00-002002) in SAA4D95LE-7BB S/N 800001-UP (For D39EX-24/D39EXI-24/D39PX-24/D39PXI-24). Diagram image and parts list.
