AFE78-CH 930E-5 S/N A40303 - A40306 BARRICK LUMWANA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58B-06-10940	PLATE	1
?	MM0459	FLAT WASHER - M6	2
?	MM0469	LOCKWASHER - M6	2
?	MM0581	CAPSCREW - M6 X 1.00 X 16	2
?	VD7127	MACHINE SCREW - #4 - 40NC X 1/2"	4
?	VN9717	NUT - #4 - 40NC	4
?	VN9762	FLAT WASHER - #4	4
?	58B-06-20020	BRACKET	3
?	WB1301	CLAMP, CUSHIONED - 1/4"	4
?	TC8757	BUSHING, PIPE - 2" X 1"	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	3
?	MM0178	NUT - M10 X 1.50	2
?	MM0471	LOCKWASHER - M10	2
?	MM0461	FLAT WASHER - M10	2
?	WB3917	NUT, COUPLING	1
?	58F-22-01021	HOSE	1
?	58F-09-00050	BRACKET	1
?	PB5556	ELEMENT, SPIN-ON FILTER	1
?	PB5557	ADAPTER, FILTER	1
?		TAIL LAMP ASSEMBLY (SEE FIG 65243)	1	65243
?	WB0268	FITTING, ELBOW - 90 DEG	1
?	WB1184	NUT, COUPLING	2
?	WB3922	CLAMP, CUSHIONED - 11/16"	4
?	WB3098	CLAMP, CUSHIONED - 3/8"	2
?	EM1398	SPACER	3
?	MM0714	FLAT WASHER, HARDENED - M12	10
?	MM0618	CAPSCREW - M12 X 1.75 X 30	10
?	VZ3370	VENT, BREATHER	1
?	WB0324	FITTING	1

Komatsu AFE78-CH 930E-5 S/N A40303 - A40306 BARRICK LUMWANA parts catalog PDF

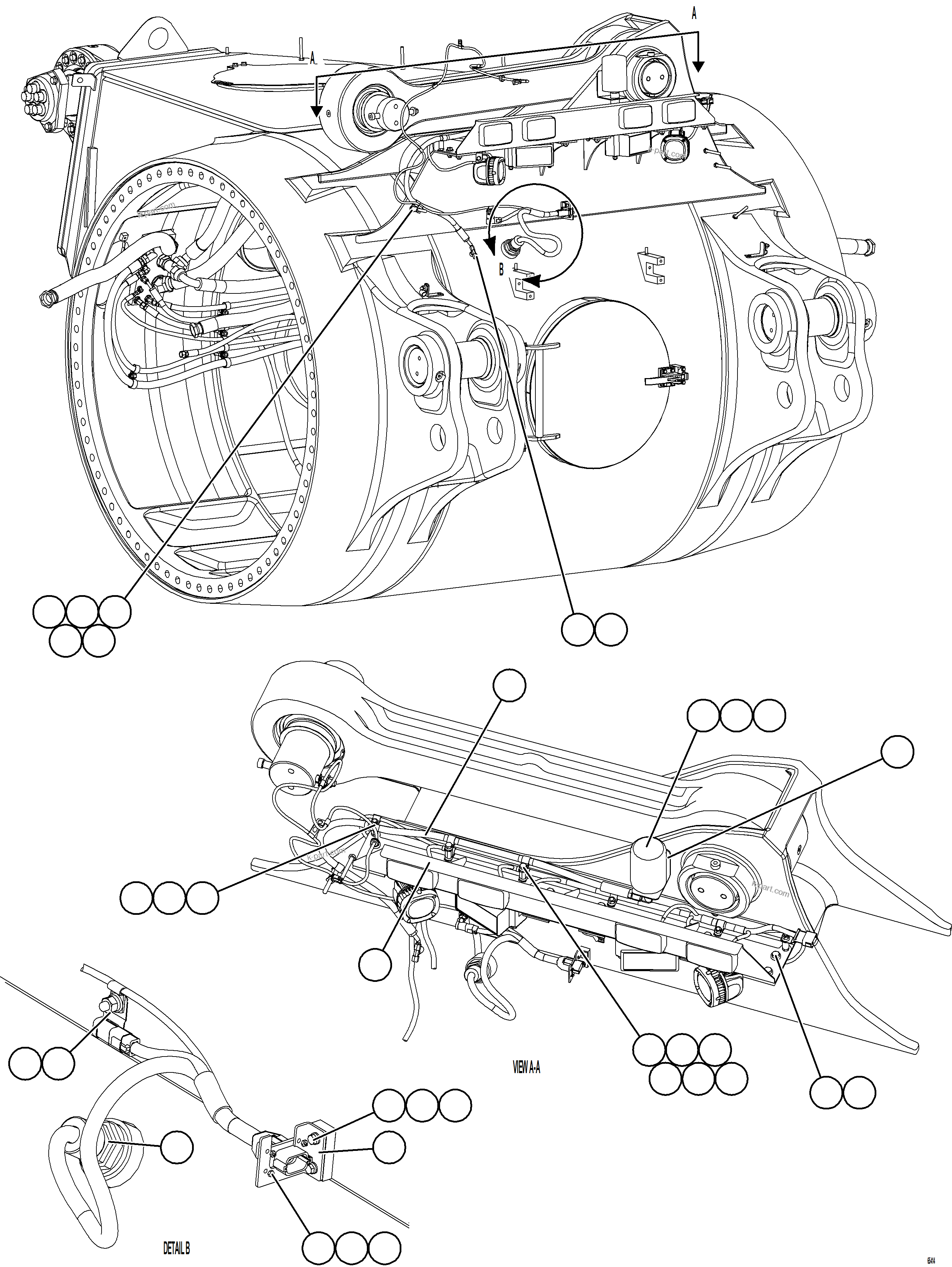

REAR AXLE BLOWER PRESSURE SWITCH INSTALLATION 2/2 (65414) in AFE78-CH 930E-5 S/N A40303 - A40306 BARRICK LUMWANA. Diagram image and parts list.
