AFE78-CH 930E-5 S/N A40303 - A40306 BARRICK LUMWANA

10 5 6 1 1 3 2 8 9 10 2 2 3 4 14 14 14 10 10 7 13 14 14 13 11 12 14 14

#	Part Number	Partname	Quantity
1	BF2839	VALVE, NEEDLE	2
1	BF2864	O-RING (1)	2
1	BF2860	O-RING (1)	2
1	BF2863	RING, BACKUP (1)	4
2	BF2840	VALVE, CHECK	3
2	BF2860	O-RING (2)	3
2	BF2864	O-RING (2)	3
2	BF2865	RING, BACKUP (2)	3
3	BF2842	VALVE, SOLENOID	2
4	XA3396	COIL	1
5	58B-60-52500	VALVE, PRESSURE REDUCING	1
5	BF2860	O-RING (4)	1
5	BF2866	O-RING (4)	1
5	BF2864	O-RING (4)	1
5	BF2872	RING, BACKUP (4)	1
5	BF2863	RING, BACKUP (4)	2
6	BF2851	DISC, ORIFICE	1
7	BF2845	PLUG, CAVITY	1
8	BF2850	DISC, ORIFICE	1
9	BF2841	VALVE, PILOT	1
9	BF2860	O-RING (5)	1
9	BF2866	O-RING (5)	1
9	BF2867	O-RING (5)	1
9	BF2864	O-RING (5)	1
9	BF2863	RING, BACKUP (5)	1
9	BF2868	RING, BACKUP (5)	2
9	XA6420	RING, BACKUP (5)	2
10	BF3260	PLUG, PORT	7
11	58F-60-52360	CARTRIDGE, LOAD SHUTTLE	1
11	BF2860	O-RING (3)	1
11	BF2866	O-RING (3)	1
11	BF2864	O-RING (3)	1
11	BF2863	RING, BACKUP (3)	1
11	BF2868	RING, BACKUP (3)	2
12	BF4312	CARTRIDGE, HOT OIL	1
12	BF2860	O-RING (6)	1
12	BF2864	O-RING (6)	1
12	BF2865	RING, BACKUP (6)	2
13	BF3261	PLUG, PORT	2
14	58F-60-52350	PLUG, CAVITY	16
NS\|41	BF2853	NOTE: (1) INCLUDED IN BF2853 SEAL KIT.	-1
NS\|42	BF2854	(2) INCLUDED IN BF2854 SEAL KIT.	-1
NS\|43	BF2856	(3) INCLUDED IN BF2856 SEAL KIT.	-1
NS\|44	BF2857	(4) INCLUDED IN BF2857 SEAL KIT.	-1
NS\|45	BF2855	(5) INCLUDED IN BF2855 SEAL KIT.	-1
NS\|46	BF2858	(6) INCLUDED IN BF2858 SEAL KIT.	-1

Komatsu AFE78-CH 930E-5 S/N A40303 - A40306 BARRICK LUMWANA parts catalog PDF

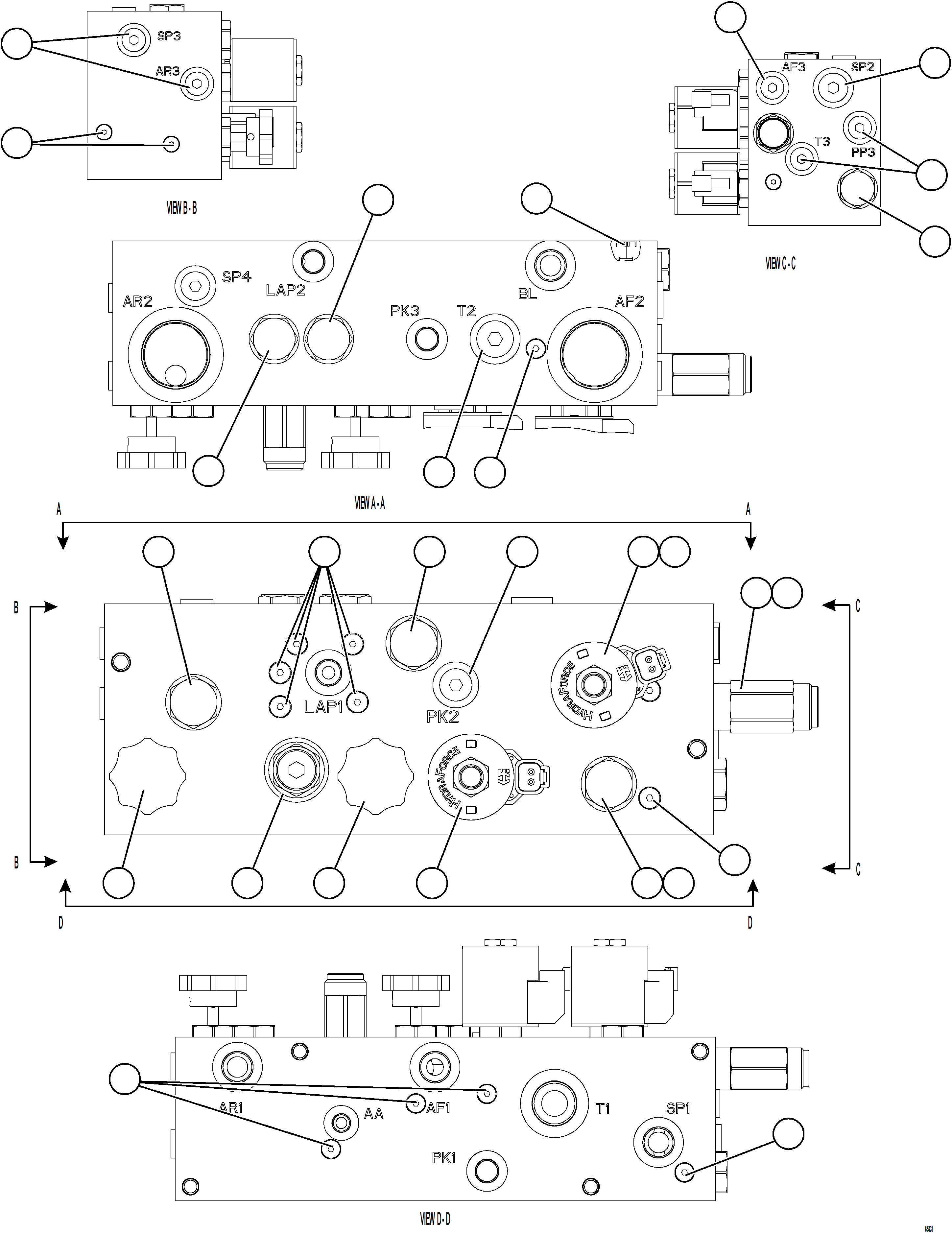

BRAKE MANIFOLD 58F-60-51750 (65331) in AFE78-CH 930E-5 S/N A40303 - A40306 BARRICK LUMWANA. Diagram image and parts list.
