AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58F-03-02190	NUT - 5/16" - 18NC	11
?	E3735	FLAT WASHER - 3/8"	42
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	5
?	VE3460	CAPSCREW, HEAVY DUTY - 1/2" - 13NC X 1"	5
?	VE3461	NUT - 1/2" - 13NC	21
?	C1540	LOCKWASHER - 1/2"	20
?	VE4440	WASHER - 1/2"	28
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	43
?	C1521	NUT - 3/8" - 16NC	31
?	VE8559	LOCKWASHER - 3/8"	29
?	58F-03-02180	FLAT WASHER - 5/16"	2
?	BF3625	GAUGE, SIGHT	1
?	XA2800	HOSE, OVERFLOW	1
?	BF4460	HOSE	3
?	58F-03-02110	RADIATOR, AFTERCOOLER (SEE FIG 68027)	1	68027
?	XA3794	CLAMP, HOSE	4
?	XA5363	U-BOLT - 5/16" - 18NC	1
?	BF4464	FITTING, NIPPLE	2
?	VE8326	BUSHING, REDUCER	2
?	XA3793	FITTING	1
?	58F-03-02160	HOSE	1
?	VE1223	CLIP	7
?	BF4461	ELBOW	4
?	BF4462	SWIVEL	6
?	BF4463	ADAPTER	2
?	VE1474	CAP - 14 PSI	1
?	BF4201	U-BOLT ASSEMBLY	1
?	XA3766	NIPPLE	2
?	VE4441	ELBOW	1
?	XA3516	RING, FAN	1
?	58F-03-02130	TANK, SURGE	1
?	58F-03-02120	SHROUD, FAN	1
?	58F-03-02100	RADIATOR, JACKET WATER (SEE FIG 68465)	1	68465

Komatsu AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN parts catalog PDF

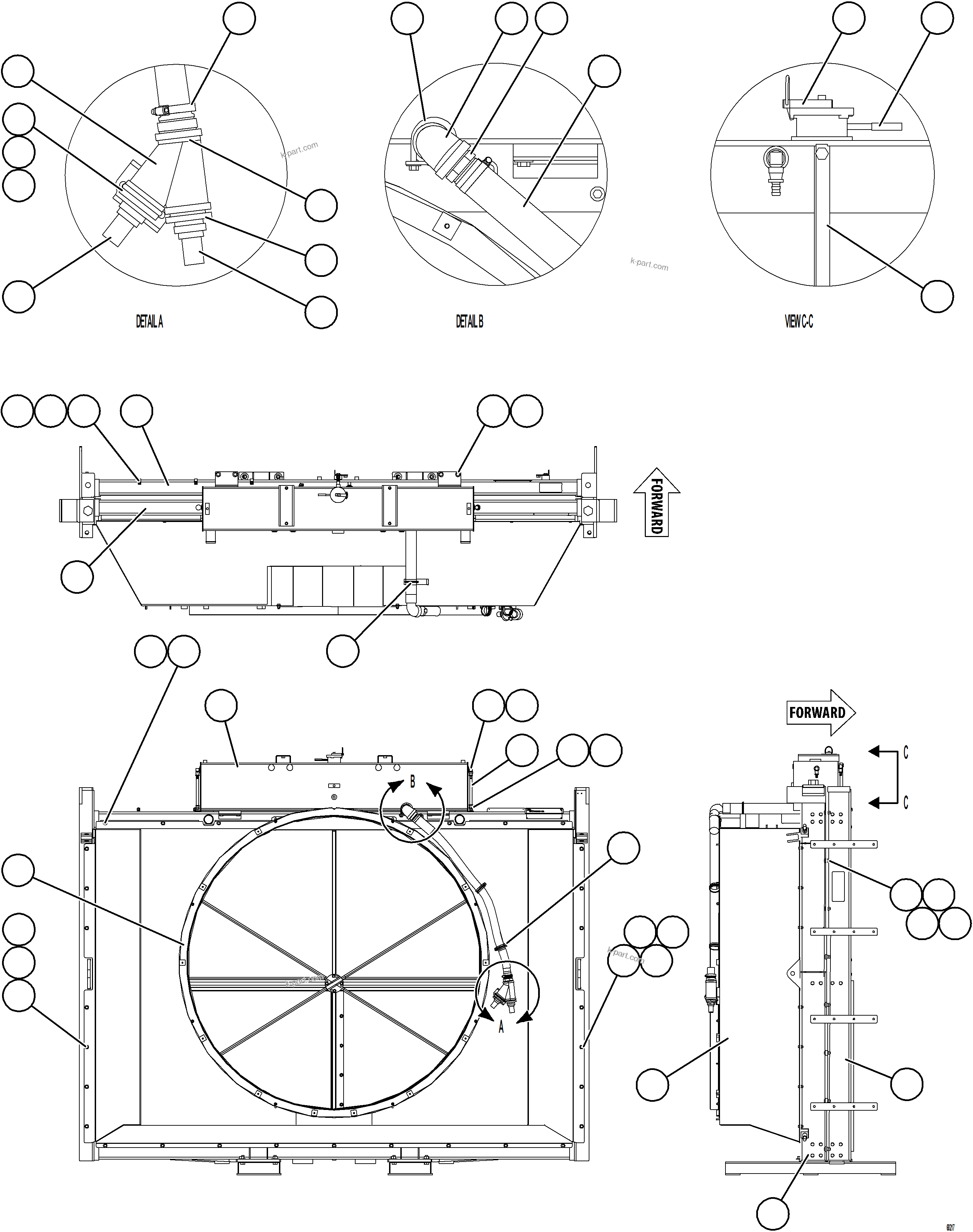

RADIATOR & SHROUD ASSEMBLY 58F-03-40000 (68217) in AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN. Diagram image and parts list.
