AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-54-30646	DOOR - RH	1
?	58E-54-23430	BOLT - M8 X 20	11
?	58E-54-08372	DOOR, HINGE	1
?	58E-54-10101	WINDOW ASSEMBLY	1
?	58E-98-10500	CHANNEL, GLASS	1
?	58E-98-10510	COVER, SCREW	1
?	58E-98-10520	WIPE, GLASS	1
?	58E-98-10530	FILLER	1
?	58E-98-10720	GLASS	1
?	SM2406	SCREW, SELF-TAPPING - #6 - 32NC X 3/8"	18
?	58E-54-31172	LATCH, DOOR - RH	1
?	58E-54-31430	SEAL, WINDOW	1
?	58E-54-30663	DOOR, GRAB HANDLE - RH	1
?	58E-54-09392	BRACKET, WINDOW LIFT	1
?	SD4235	LOCKWASHER, EXTERNAL TOOTH - 1/4"	4
?	58E-09-10180	SCREW, TRUSS	3
?	58E-09-00180	SCREW, TRUSS	1
?	58E-09-00440	CAPSCREW - #6 - 32NC X 5/16"	6
?	MM0358	MACHINE SCREW - M6 X 1.00 X 16	2
?	MM0582	CAPSCREW - M6 X 1.00 X 20	6
?	58E-54-09452	BRACKET, WINDOW STOPPER	1
?	58E-54-23371	BRACKET, REGULATOR UPPER	1
?	XB0815	PLATE	1
?	58E-54-22680	SCREW - M6 X 20	3
?	SM2261	GASKET	2
?	58E-54-31710	REGULATOR, WINDOW - RH	1
?	58E-54-09173	SEAL, DOOR	1
?	58E-54-31461	PLATE	1
?	MM0469	LOCKWASHER - M6	15
?	58E-54-21420	WASHER, FENDER - M6	19
?	MM0579	CAPSCREW - M6 X 1.00 X 12	11
?	EM7654	BUSHING, NYLON	4
?	58E-54-23360	BRACKET, REGULATOR MOTOR	1
?	58E-54-23511	BRACKET, REGULATOR LOWER	1
?	58E-54-09131	HANDLE, PUSH BUTTON	1
?	58E-98-10070	GASKET	1
?	58E-98-10080	KEY, DOOR	1
?	58E-98-10090	HANDLE	1
?	MM0176	NUT - M6 X 1.00	1
?	MM0582	CAPSCREW - M6 X 1.00 X 20	1

Komatsu AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN parts catalog PDF

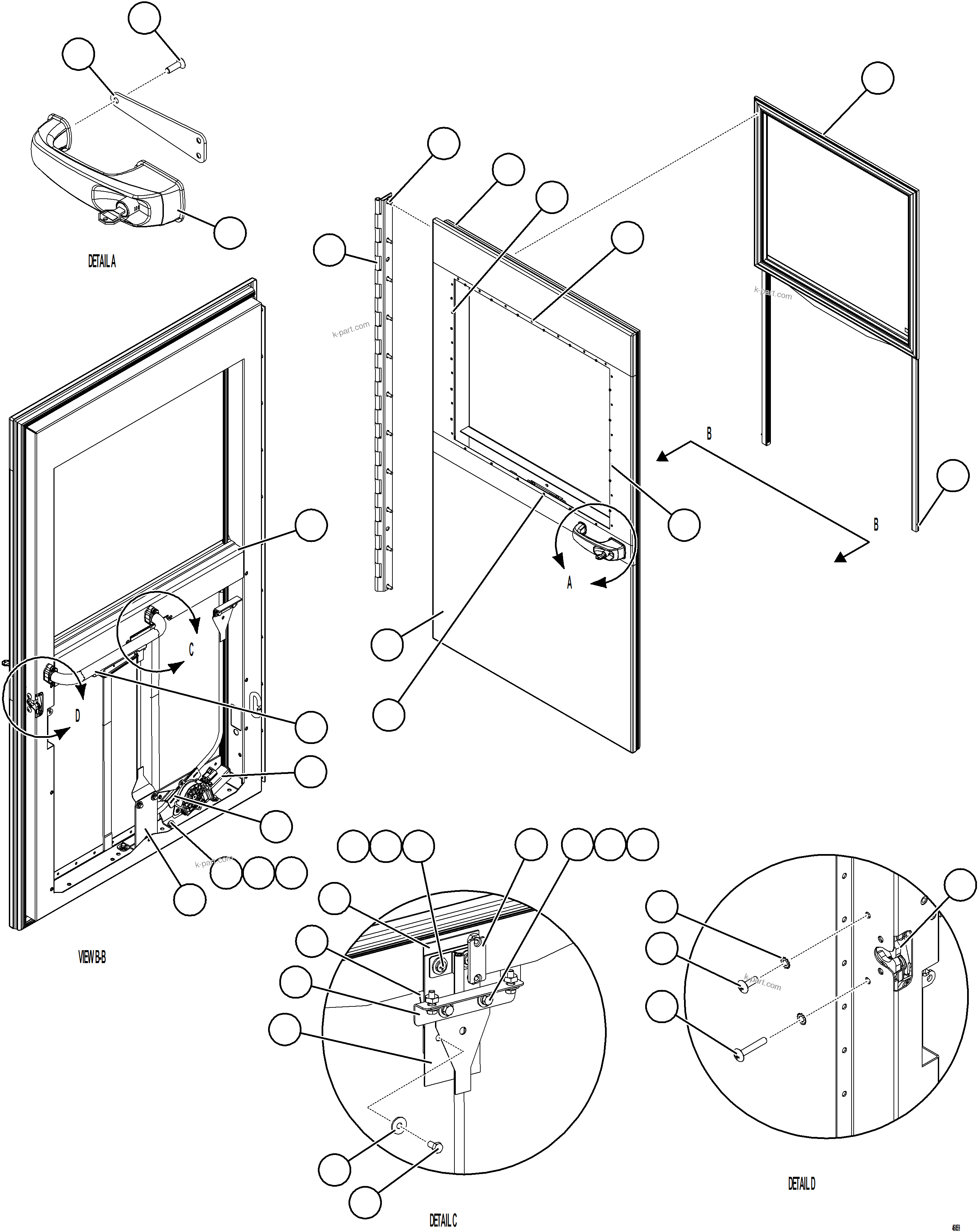

DOOR ASSEMBLY - RH 58E-54-30636 (46059) in AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN. Diagram image and parts list.
