AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	09632-61480	PLATE, SAFETY	2
?	58B-02-00591	VALVE, FAST FILL - DEF	1
?	58B-02-01940	O-RING	1
?	58F-02-50860	FITTING, ELBOW - 90 DEG	1
?	58E-80-20920	BRACKET	1
?	58F-02-02200	HOSE	1
?	58F-06-05330	HARNESS, WIRING - LH DEF FILL	1
?	58F-90-00320	CLAMP, CUSHIONED - 2 5/8"	3
?	58F-93-00320	PLATE, DIESEL SULFUR	2
?	58F-93-00410	PLATE, DECAL	2
?	HA5597	HOSE	1
?	58F-80-06030	BOX, FUEL	1
?	MM0178	NUT - M10 X 1.50	3
?	MM0460	FLAT WASHER - M8	1
?	MM0461	FLAT WASHER - M10	11
?	MM0462	FLAT WASHER - M12	3
?	MM0471	LOCKWASHER - M10	7
?	MM0472	LOCKWASHER - M12	3
?	MM0593	CAPSCREW - M8 X 1.25 X 20	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	2
?	MM0605	CAPSCREW - M10 X 1.50 X 25	5
?	MM0618	CAPSCREW - M12 X 1.75 X 30	3
?	PB2020	CAP	1
?	PB2154	RECEIVER	1
?	SP8417	FLAT WASHER - 1/4"	6
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	6
?	WB0303	FITTING, ELBOW - 45 DEG	1
?	WB1196	CLAMP, HYDRA ZORB	1
?	WB3098	CLAMP, CUSHIONED - 3/8"	5
?	WB3858	CLAMP, CUSHIONED - 1 13/16"	10
?	WB3917	NUT, COUPLING	1
?	58E-02-11160	FITTING, STRAIGHT	2
?	WA2571	FITTING, CAP NUT	1

Komatsu AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN parts catalog PDF

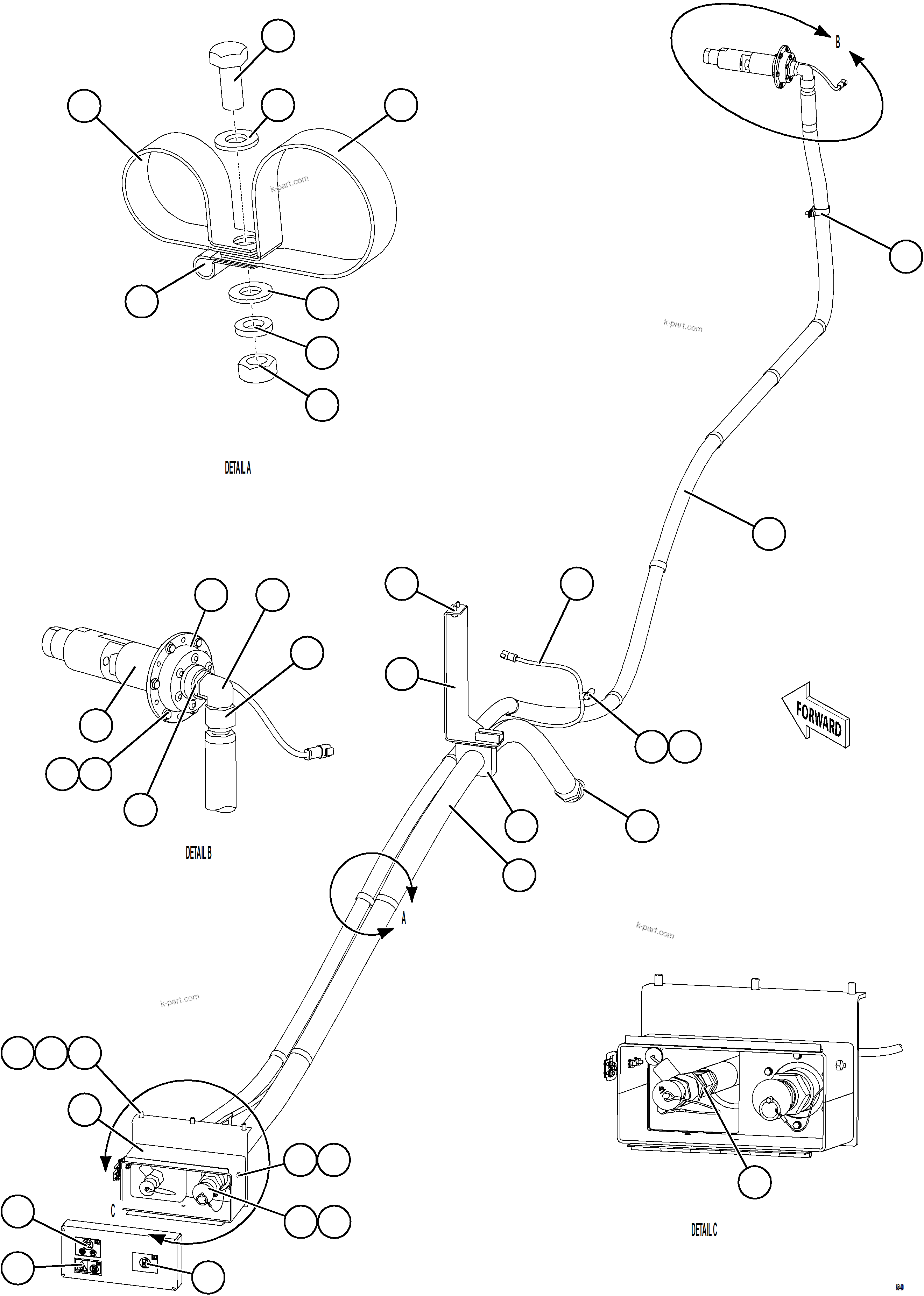

FUEL TANK/DEF TANK REMOTE FILL - LH 1/2 (65440) in AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN. Diagram image and parts list.
