AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN

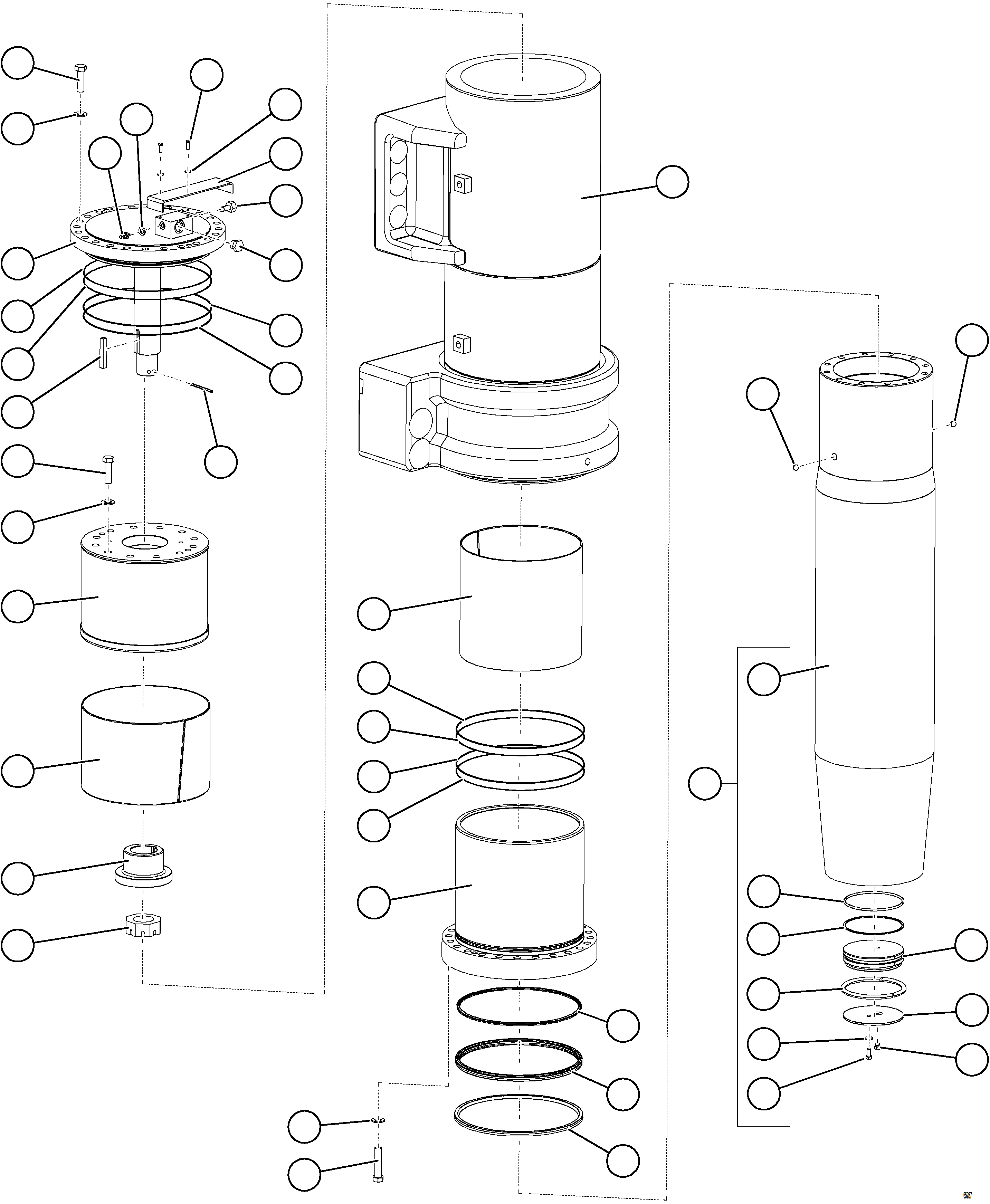

12 12 1 37 3 26 27 31 32 30 29 28 5 11 6 4 3 7 8 9 10 36 6 5 2 14 13 16 17 18 20 21 3 25 23 5 5 6 24 33 34 35 6 22 19 15

#	Part Number	Partname	Quantity
1	58F-50-40100	HOUSING	1
2	EH6541	CAP, SUSPENSION	1
3	WA0363	FLAT WASHER, HARDENED - 7/8"	60
4	VN9105	CAPSCREW - 7/8" - 9NC X 3"	12
5	58F-50-50910	RING, BACKUP (1)	4
6	58F-50-50900	O-RING (1)	4
7	58F-50-00210	RETAINER, UPPER BEARING	1
8	PC2413	BEARING, UPPER	1
9	EH6529	STOP, PISTON	1
10	VW4451	NUT, WHEEL	1
11	VC2629	PIN (1)	1
12	H2981	BALL, STEEL (1)	4
13	58F-50-00200	PISTON ASSEMBLY	1
14	58F-50-00300	PISTON	1
14	58B-50-00900	BOSS, PISTON	4
15	EM3159	PLUG, PISTON	1
16	WA0443	O-RING (1)	1
17	WA1443	RING, BACKUP (1)	1
18	EM1585	RING, RETAINER	3
19	EM1600	PLATE, RETAINER	1
20	WA0360	FLAT WASHER, HARDENED - 1/2"	1
21	VN9032	CAPSCREW - 1/2" - 13NC X 1"	1
22	VM0314	PLUG (1)	1
23	58F-50-50310	RETAINER, LOWER BEARING	1
24	PC2414	BEARING, LOWER	1
25	VN9141	CAPSCREW - 7/8" - 9NC X 4"	24
26	PB2194	CHARGING VALVE ASSEMBLY (1)/(2)	1
26	TR9993	CAP, VALVE	1
26	TD7179	CORE, VALVE	1
26	TF1144	O-RING, HOUSING	1
26	WA0052	O-RING, VALVE STEM	1
27	VD5076	GASKET, FLAT (1)/(2)	1
28	TY8879	PLUG, VENT (1)	1
29	TZ8637	PLUG, SENSOR	1
30	EM9996	COVER, PROTECTOR (3)	1
31	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
32	DF3042	FLAT WASHER - 3/8"	2
33	PC1627	SEAL, BUFFER (1)	1
34	PC0469	SEAL, DOUBLE LIP (1)	1
35	PC0471	SEAL, WIPER (1)	1
36	EH6536	KEY, SQUARE	1
37	VN9161	CAPSCREW - 7/8" - 9NC X 4"	24
NS\|43		NOTE: NS = NOT SHOWN	-1
NS\|44	AK4065	SUSPENSION OIL MIXTURE - COLD WEATHER - 5 GAL	6
NS\|45	AK4066	SUSPENSION OIL MIXTURE - COLD WEATHER - 55 GAL	1
NS\|46	58F-FS-AK020	NOTE: (1) INCLUDED IN 58F-FS-AK020 FRONT SUSPENSION	-1
NS\|47		OVERHAUL KIT.	-1
NS\|48	RK1887	(2) INCLUDED IN RK1887 CHARGING VALVE KIT.	-1
NS\|49		(3) USED FOR SHIPPING AND STORAGE ONLY.	-1

Komatsu AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN parts catalog PDF

FRONT SUSPENSION ASSEMBLY - CW 58F-50-50201 (65287) in AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN. Diagram image and parts list.
