AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WA4779	PLUG, O-RING	1
?	MM0471	LOCKWASHER - M10	20
?	MM0461	FLAT WASHER - M10	8
?	MM0178	NUT - M10 X 1.50	3
?	WB3098	CLAMP, CUSHIONED - 3/8"	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	5
?	58E-60-12010	MANIFOLD ASSEMBLY (SEE INDEX)	1	64461
?	EM1398	SPACER	4
?	58B-06-20020	BRACKET	2
?	56B-06-15610	SWITCH, PROXIMITY	2
?	VY0876	GROMMET	2
?	58E-06-08400	HORN	1
?	MM0583	CAPSCREW - M6 X 1.00 X 25	2
?	MM0469	LOCKWASHER - M6	2
?	MM0711	FLAT WASHER, HARDENED - M6	2
?	08193-21012	CLIP	1
?	58F-54-40260	PIN	2
?	WB0505	FITTING, ELBOW - 90 DEG	1
?	WB0582	FITTING, STRAIGHT	1
?	WB0536	FITTING, ELBOW - 45 DEG	1
?	WB0557	FITTING, TEE	1
?	58F-60-00500	CYLINDER (1)	1
?	PB6770	COUPLING, MALE QUICK DISCONNECT	3
?	162144	CAP, DUST	3
?	TF5194	O-RING	3
?	WA4780	PLUG, O-RING	2
?	WB0581	FITTING, STRAIGHT	1
?	MM0619	CAPSCREW - M12 X 1.75 X 35	3
?	MM0472	LOCKWASHER - M12	3
?	MM0462	FLAT WASHER - M12	3
?	WB1303	CLAMP, CUSHIONED - 3/4"	1
?	WB1304	CLAMP, CUSHIONED - 9/16"	1
?	MM0713	FLAT WASHER, HARDENED - M10	1
?	58F-60-41200	NOTE: (1) USE 58F-60-41200 SEAL KIT FOR SERVICE.	-1

Komatsu AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN parts catalog PDF

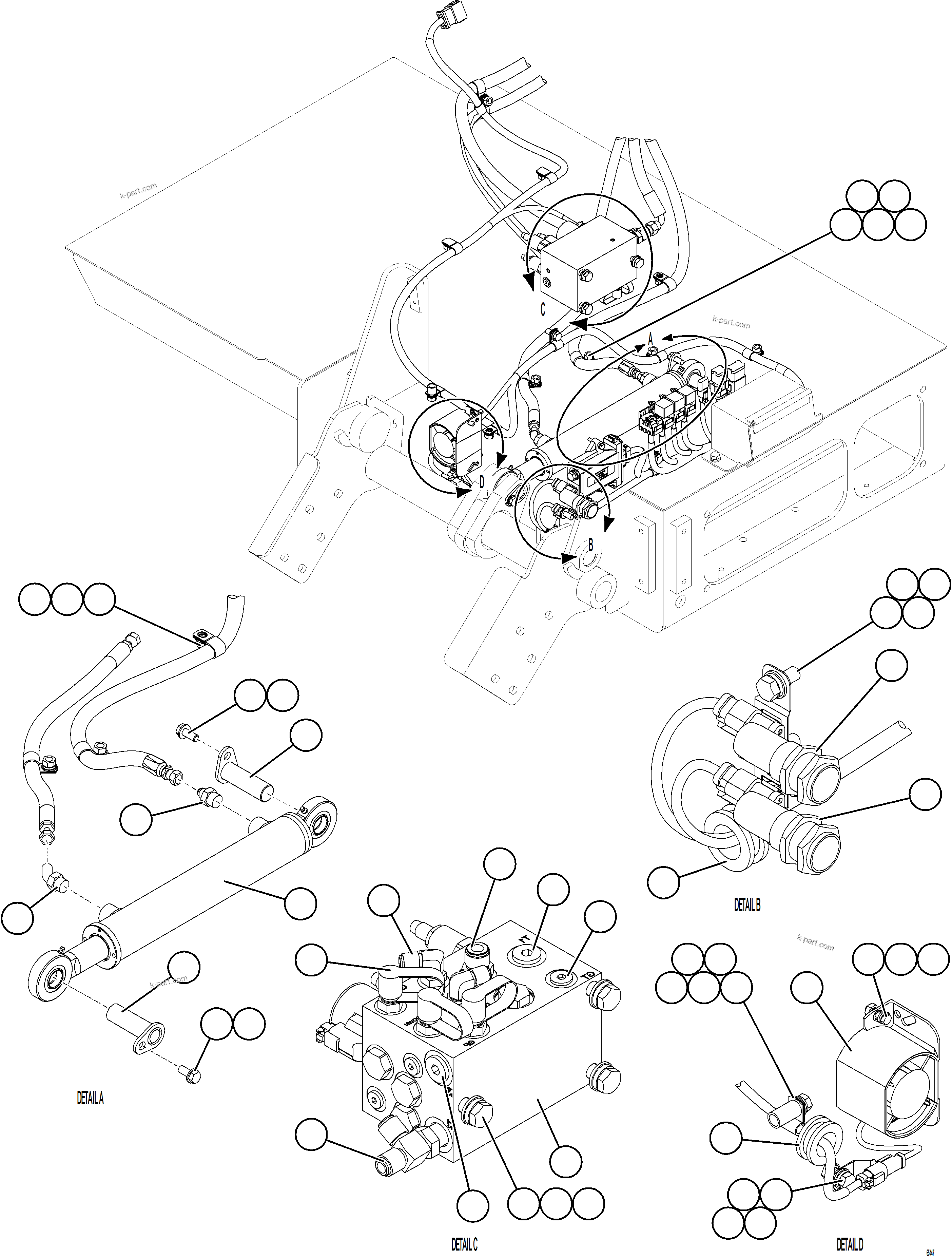

PLATFORM ASSEMBLY 3/3 58E-54-60941 (65447) in AFE78-CB 930E-5 S/N A40282 - A40283 BOLIDEN. Diagram image and parts list.
