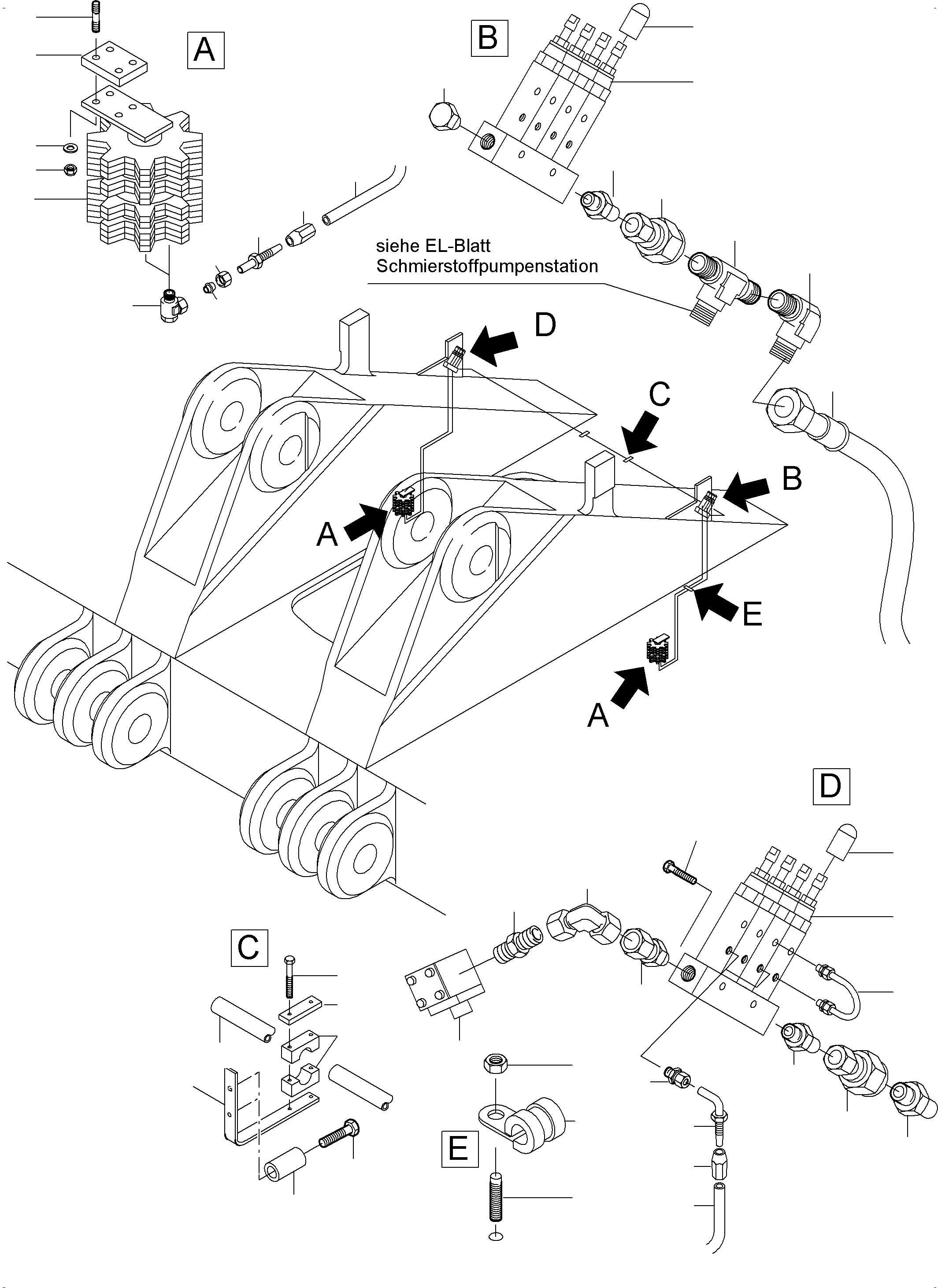

GEAR GREASING BY PINION | PC4000-11 S/N 08312 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		METERING VALVE	2	assembly: 991-0091 \| assemblytitle: METERING VALVE	991-0091
02	94093840	LUBE PINION	2	vendorcode: KOMATSU \| visiblepartno: 94093840
03	36094040	CONNECTING TUBE	4	vendorcode: KOMATSU \| visiblepartno: 36094040
04	34175440	ULTIMATE PRESSURE CONTROL	1	vendorcode: KOMATSU \| visiblepartno: 34175440
05	65413040	PROTECTION CAP	8	vendorcode: KOMATSU \| visiblepartno: 65413040
06	51581798	BOLT	8	vendorcode: KOMATSU \| visiblepartno: 51581798
07	33460099	NUT	8	vendorcode: KOMATSU \| visiblepartno: 33460099
08	34046799	WASHER	8	vendorcode: KOMATSU \| visiblepartno: 34046799
09	00691298	UNION	4	vendorcode: KOMATSU \| visiblepartno: 00691298
10	30855499	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30855499
13	51227398	SOCKET	2	vendorcode: KOMATSU \| visiblepartno: 51227398
14	51588598	SOCKET	1	vendorcode: KOMATSU \| visiblepartno: 51588598
15	50014598	UNION	1	vendorcode: KOMATSU \| visiblepartno: 50014598
16	51595198	UNION	2	vendorcode: KOMATSU \| visiblepartno: 51595198
17	51624898	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51624898
18	51683498	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51683498
19	90698140	UNION	12	vendorcode: KOMATSU \| visiblepartno: 90698140
20	95410840	CONNENCTING PLATE	2	vendorcode: KOMATSU \| visiblepartno: 95410840
21	57616040	CABLE PROTECTION HOSE	-1	docwarecomment: * \| vendorcode: KOMATSU \| visiblepartno: 57616040
22	51502840	SLEEVE	8	vendorcode: KOMATSU \| visiblepartno: 51502840
23	51502940	SOCKET	4	vendorcode: KOMATSU \| visiblepartno: 51502940
24	51502740	SOCKET	4	vendorcode: KOMATSU \| visiblepartno: 51502740
25	51600098	HOSE ASSY. DN 20x2350	1	vendorcode: KOMATSU \| visiblepartno: 51600098
26	00630398	CLAMP	12	vendorcode: KOMATSU \| visiblepartno: 00630398
27	32394540	THREAD PIN	12	vendorcode: KOMATSU \| visiblepartno: 32394540
28	50702598	NUT	12	vendorcode: KOMATSU \| visiblepartno: 50702598
30	51803698	CLAMP PAIR	2	vendorcode: KOMATSU \| visiblepartno: 51803698
31	53400499	COVER PLATE	2	vendorcode: KOMATSU \| visiblepartno: 53400499
32	30858199	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30858199
33	32467240	PLUG	1	vendorcode: KOMATSU \| visiblepartno: 32467240
34	37444399	UNION	1	vendorcode: KOMATSU \| visiblepartno: 37444399
35	51684398	SOCKET	1	vendorcode: KOMATSU \| visiblepartno: 51684398
36	90708040	OLIVE	8	vendorcode: KOMATSU \| visiblepartno: 90708040
37	37125799	NUT	8	vendorcode: KOMATSU \| visiblepartno: 37125799
38	65564940	PROTECTION HOSE	20	vendorcode: KOMATSU \| visiblepartno: 65564940
39	95223240	RETAINER	2	vendorcode: KOMATSU \| visiblepartno: 95223240
40	60749240	ANTI-FATIGUE SLEEVE	4	vendorcode: KOMATSU \| visiblepartno: 60749240
41	30778599	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30778599
\|$38		BULK WARE, STATE LENGTH REQUIRED	-1	docwarecomment: *
