ELECT. PARTS - MOVEM. SIGNAL / MOTOR SWITCH-OFF / WARNING SYSTEM ASSY. | PC4000-11 S/N 08302

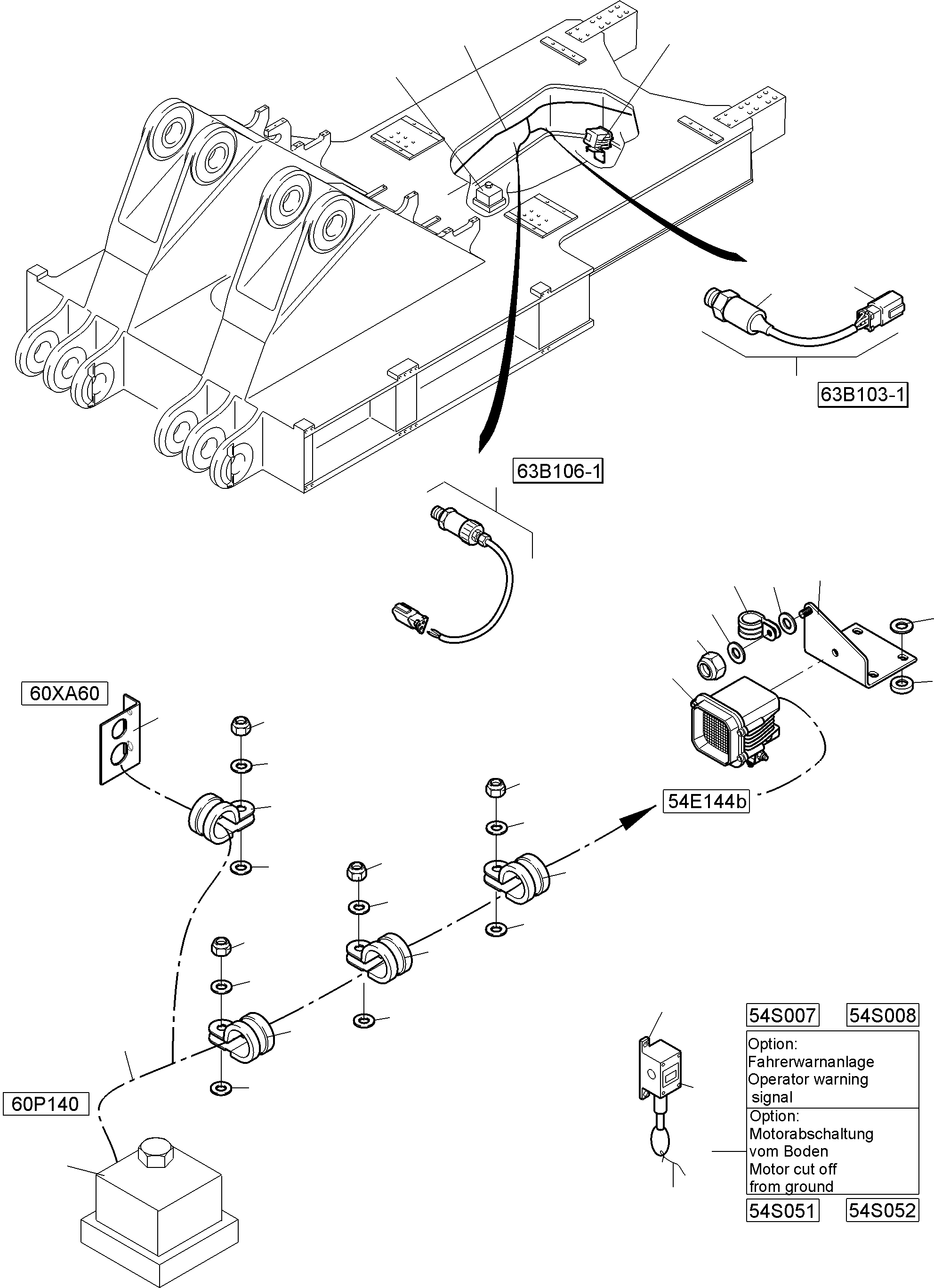

Diagram image 1 of 2

PC4000-11 S/N 08302

01 01 02 03 03 04 05 06 06 07 09 10 10 10 110 111 112 13 14 14 14 14 14 140 15 15 15 15 15 15 16 17 17 17 17 17 60 61 72 73 79 80

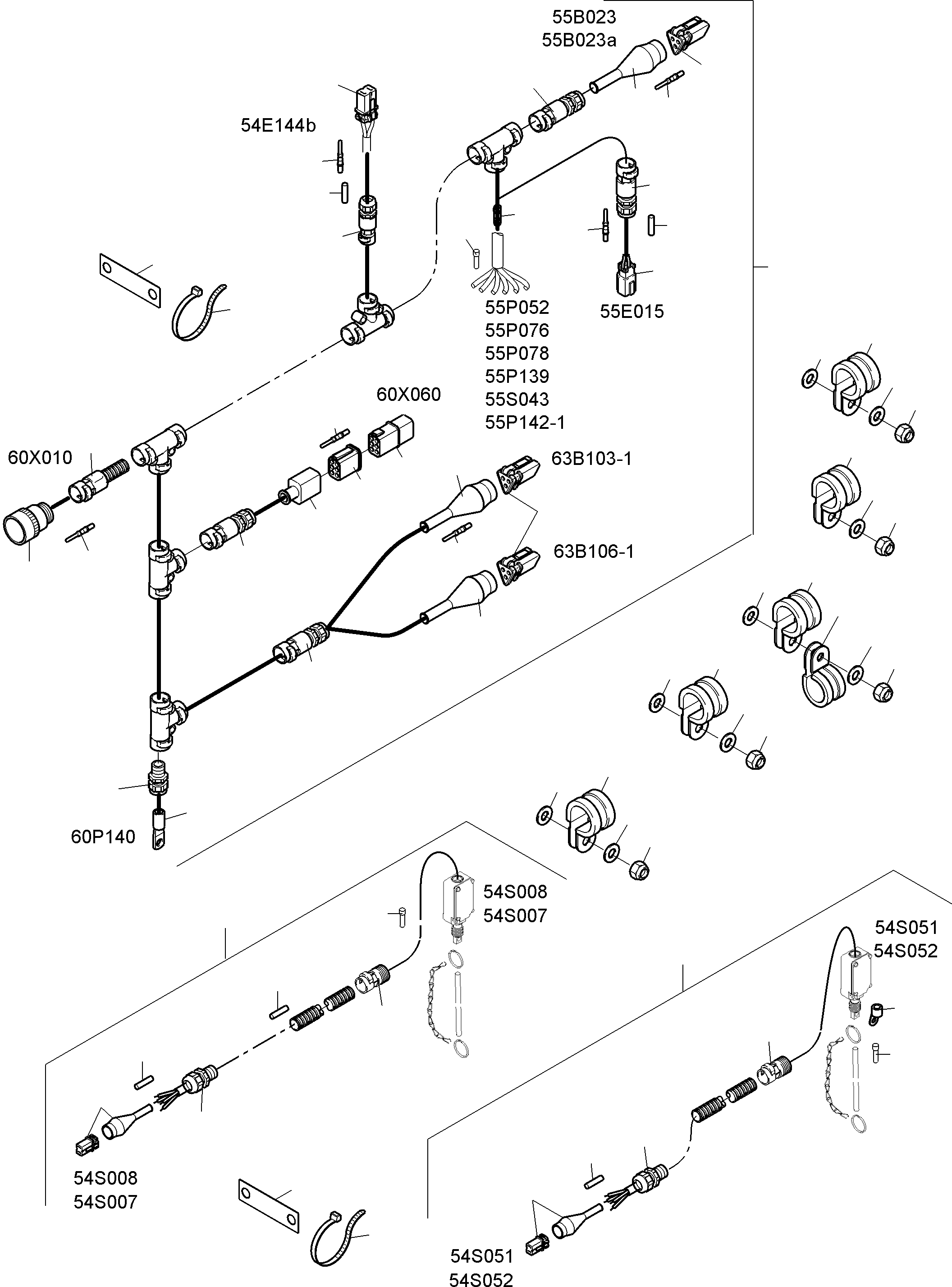

PC4000-11 S/N 08302

01 08 08 10 11 12 120 121 13 130 131 132 133 133 134 134 14 14 14 15 15 15 17 17 21 22 23 23 24 24 25 26 28 29 29 30 31 31 31 31 31 32 33 33 33 34 34 34 35 36 36 36 37 38 38 39 40 41 41 42 42 42 43 44 45 45 46 47 47 48 48 49 50 50 51 51 52 52 52 53 53 54 55 56 57 70 71 74 75 76 76 77 77 78 78 90 91 92 93 93 96

#	Part Number	Partname	Quantity
01	995 487 40	Harness Movement signal/refueling arm	1
02	938 318 40	Level probe assy.	1
03	896 746 40	Horn	1
04	989 228 40	Plate	1
05	975 564 40	Retainer	1
06	950 737 40	Head light assy.	1
07	950 280 40	Sensor with cable and plug	1
08	0819320010	Clip	7
09	0443450510	Clip	1
10	0443451510	Clip Ш 12	10
11	0443451910	Clip Ш 15	8
12	0443452711	Clip Ш 19	5
13	0443453211	Clip Ш 27	2
14	332 113 99	Nut	26
15	518 547 98	Lock washer	26
16	517 122 98	Lock washer	4
17	507 596 98	Washer	26
21	950 112 40	Plug MALE	1
22	56B0611530	Socket	1
23	950 189 40	Plug	1
24	941 880 40	Plug	4
25	950 945 40	Plug	1
26	950 941 40	Housing plug	1
28	950 132 40	Protection cap	1
29	0819105320	Pin contact MALE	23
30	621 698 40	Contact plug 1-2 qmm MALE	1
31	0819105420	Female contact FEMALE	22
32	621 699 40	Female contact 1-2 qmm FEMALE	1
33	940 852 40	Plug	12
34	056 070 40	Cable sleeve	15
35	055 104 40	Cable lug	2
36	896 520 40	End pin	5
37	907 692 40	Fitting	1
38	940 471 40	Fitting	2
39	907 693 40	Fitting	2
40	907 981 40	Fitting	1
41	940 520 40	Fitting	1
42	907 703 40	Cable union	2
43	907 708 40	Cable union	2
44	907 704 40	Cable union	1
45	907 623 40	Cable union	2
46	940 858 40	Union	1
47	081 921 24 00	Wedge	2
48	0819213400	Wedge	6
49	0819218400	Wedge	1
50	941 777 40	Plate	15
51	174 411 40	Cable strap	28
52	941 791 40	Rubber grommet	6
53	950 190 40	Rubber grommet	2
54	951 260 40	Slide protection	1
55	517 322 98	Cable nut	1
56	940 452 40	Fitting	1
57	907 709 40	Cable union	1
60	950 346 40	Level probe	1
61	955 670 40	Plug	1
70	987 413 40	Harness Movement signal 54S007	1
71	987 414 40	Harness Movement signal 54S008	1
72	255 680 40	Pull switch	4
73	985 839 40	Chain kpl. yellow	2
74	0443452110	Clip Ш 21,5	2
75	0443451210	Clip	20
76	340 465 99	Washer	22
77	507 596 98	Washer	22
78	507 037 98	Nut	22
79	319 171 99	Bolt	16
80	340 459 99	Washer	16
90	0819216000	Socket	1
91	0819100770	Pin	4
92	951 509 40	Cover	1
93	0819216300	Wedge	5
96	940 271 40	Union	1
110	472 688 99	Chain	-2
111	098 955 40	Ring	4
112	999 176 40	Shrinkdown tubing, yellow	-2
120	987 415 40	Harness engine shut-off device 54S051	1
121	987 416 40	Harness engine shut-off device 54S052	1
121	985 840 40	Chain, cpl. Red	2
130	999 402 40	Socket assy.	1
131	055 103 40	Cable shoe	8
132	907 705 40	Cable union	1
133	907 972 40	Union	1
134	951 509 40	Protective Housing Socket	2
140	941 210 40	Shrinkdown tubing, red	-2
\|$$84			-2
