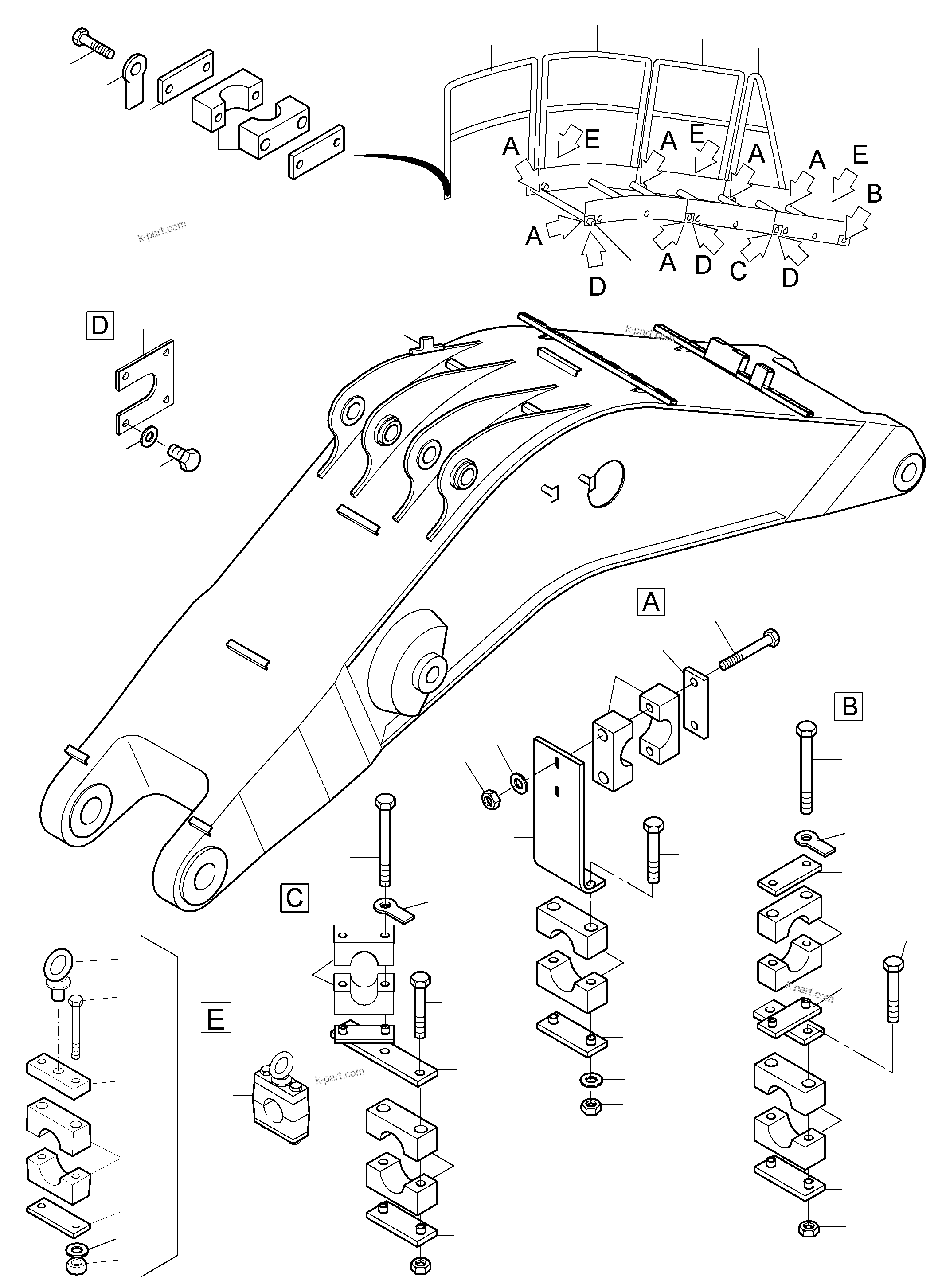

LADDER - BACKHOE BOOM 9,75 M | PC4000-11 S/N 08302

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-11 S/N 08302

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	936 969 40	Stair rail section	1
?	937 658 40	Stair rail section	1
?	936 975 40	Stair rail section	1
?	938 039 40	Stair rail section	1
?	938 041 40	Retainer	1
?	969 979 40	Retainer	6
?	938 038 40	Retainer	1
?	938 044 40	Plate	1
?	936 985 40	Plate	6
?	307 775 99	Bolt	24
?	343 065 99	Washer	24
?	534 009 99	Weld on plate	8
?	504 445 98	Clamp set	8
?	519 066 98	Bolt	16
?	332 353 99	Nut	16
?	504 709 98	Clamp set	9
?	534 004 99	Cover plate	9
?	308 582 99	Bolt	6
?	509 309 98	Locking plate	3
?	534 005 99	Weld on plate	1
?	896 541 40	Vane threaded plug	8
?	307 792 99	Bolt	16
?	332 114 99	Nut	16
?	517 122 98	Washer	16
?	517 118 98	Washer	16
?	964 912 40	Heave point assy.	3
?	963 323 40	Plate	6
?	964 913 40	Cover plate	3
?	500 399 98	Weld on plate	3
?	504 814 98	Clamp set	3
?	950 498 40	Eyebolt	3
?	308 421 99	Bolt	6
?	332 355 99	Nut	6
?	517 123 98	Lock washer	12
