EXHAUST SYSTEM | PC4000-11 S/N 08302 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

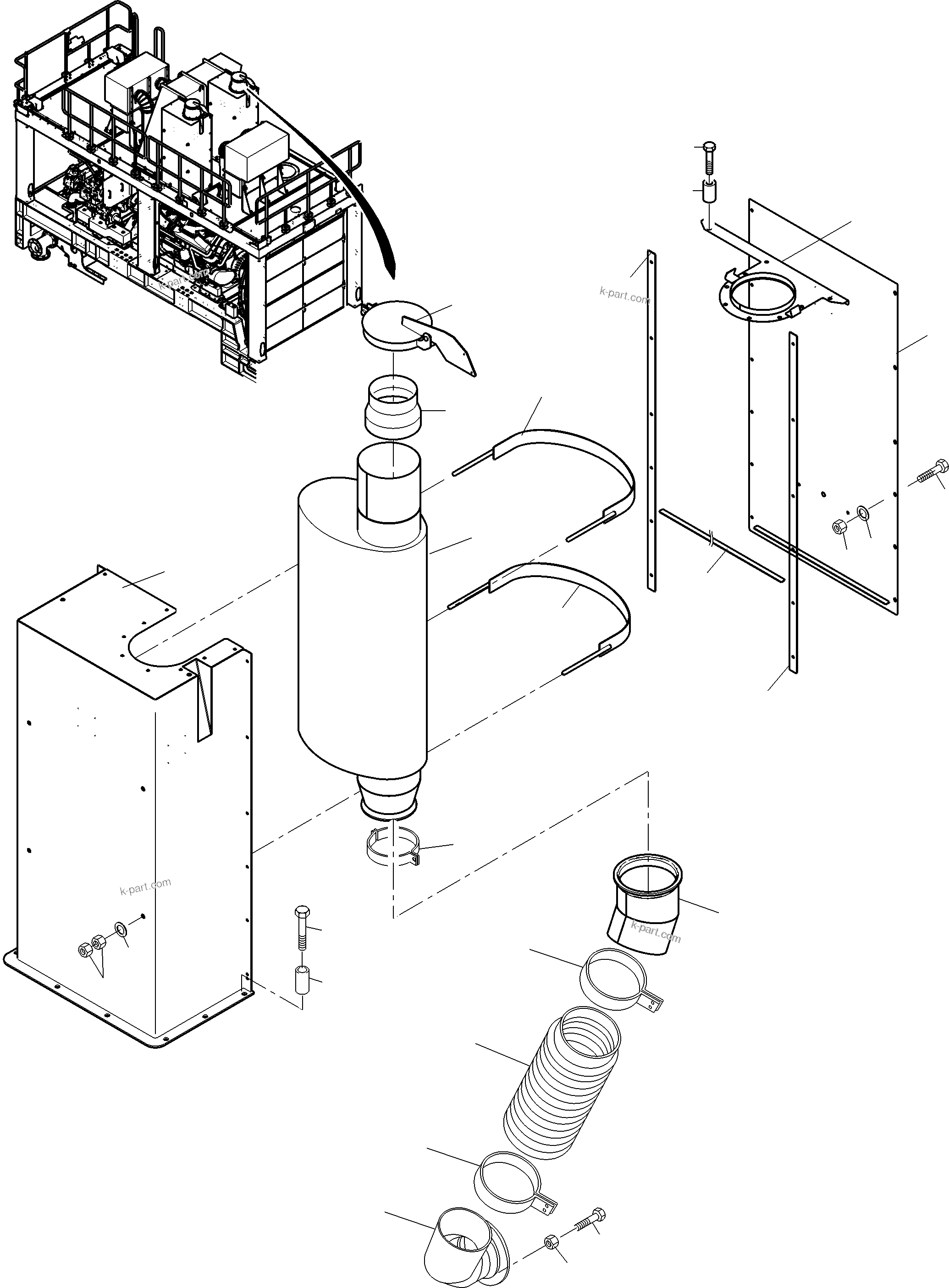

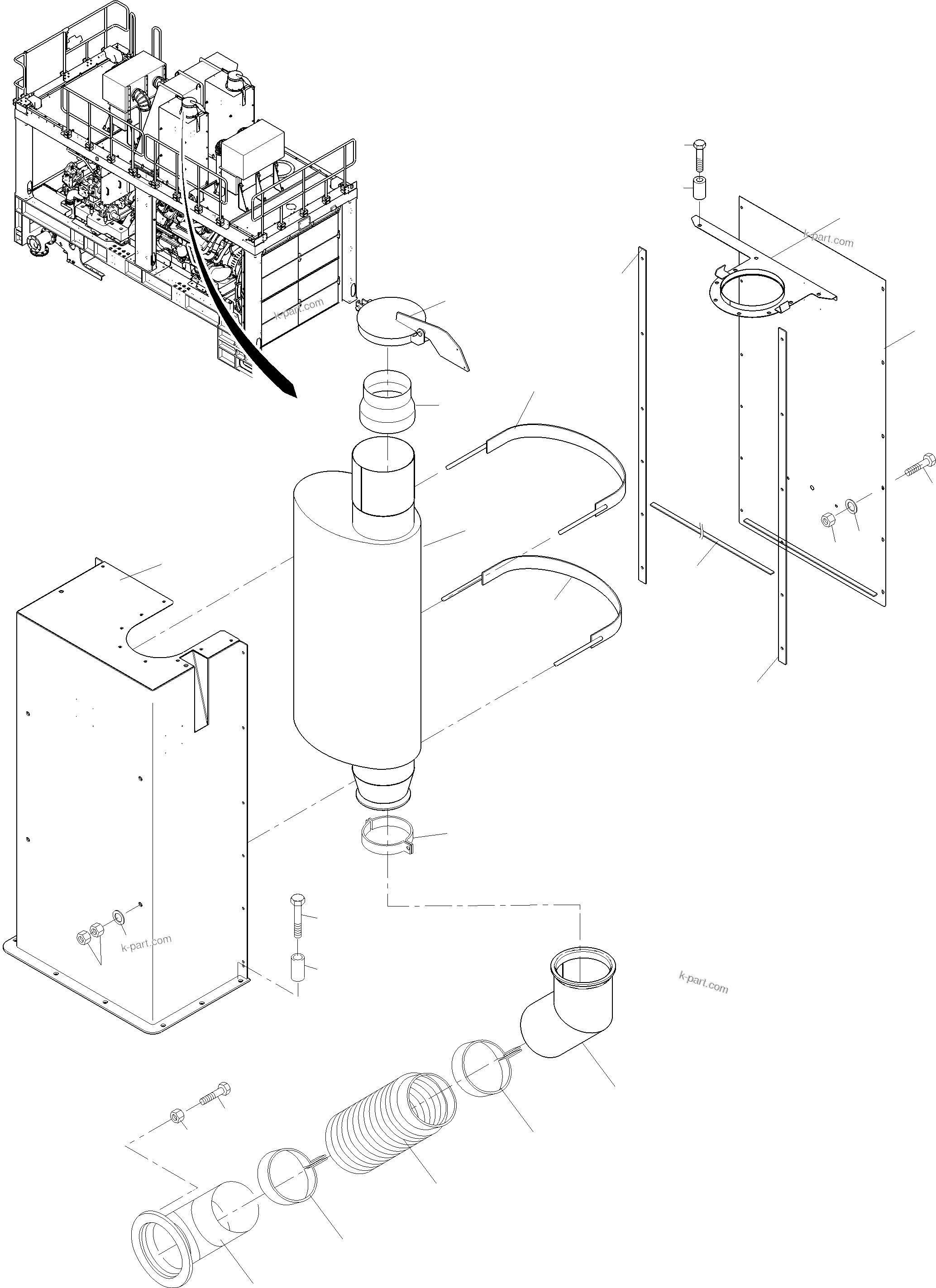

Diagram image 1 of 2

PC4000-11 S/N 08302

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-11 S/N 08302

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	101 249 42	Exhaust pipe	1
?	995 095 40	Exhaust pipe	1
?	936 036 40	Exhaust pipe	1
?	992 697 40	Exhaust pipe	1
?	950 594 40	Strap retainer	2
?	906 474 40	Clamp	4
?	941 850 40	Flex. pipe	2
?	993 807 40	Isolation	1
?	993 804 40	Isolation	1
?	307 829 99	Bolt	16
?	332 336 99	Nut	32
?	995 094 40	Holding device, muffler consist. of fig nos 41-43	2
?	995 091 40	Muffler aasy	2
?	894 258 40	Strap retainer	4
?	941 668 40	Weather protecting cap	2
?	954 035 40	Foam profile	4
?	954 036 40	Foam profile	2
?	510 733 98	Resilient sleeve	64
?	502 434 98	Bolt	40
?	340 688 99	Washer	8
?	307 779 99	Bolt	24
?	340 508 99	Washer	44
?	507 037 98	Nut	44
?	515 274 98	Bolt	18
?	516 142 98	Resilient sleeve	18
?	999 927 40	Insulation Exhaust pipe	2
?	912 486 40	Holding device, muffler	2
?	101 236 42	Cover plate	2
?	101 247 42	Cover plate	2
