GD955-7M0 S/N 31001-UP

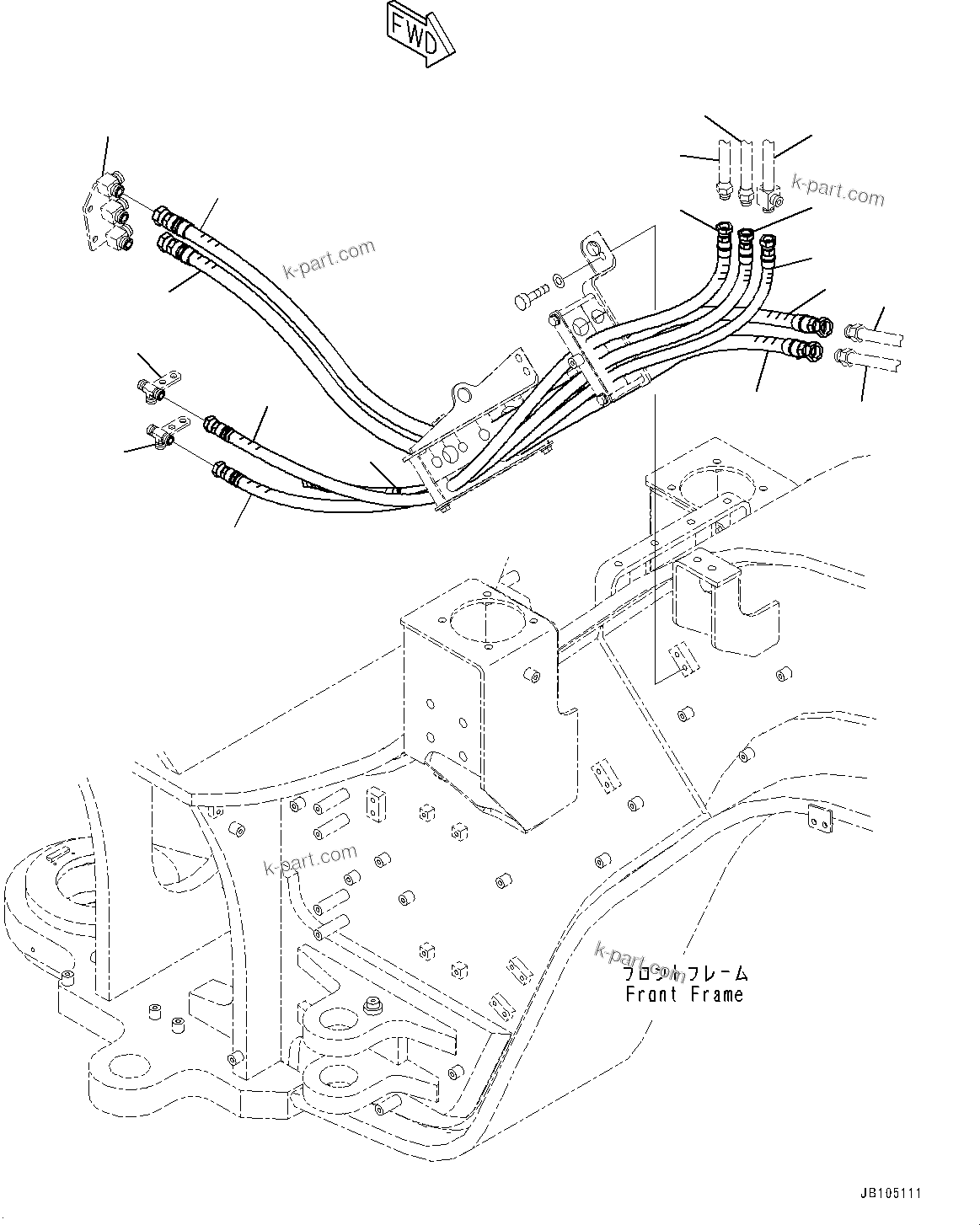

Komatsu parts book diagram for GD955-7M0 S/N 31001-UP: FRONT HYDRAULIC PIPING, CONTROL VALVE PIPING, R.H. (3/3)(#30001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	23J-60-14711	Hose	1	SN: 30001-UP
	?	20Y-62-22850	Band, Green	3	SN: 30001-UP
	?	23J-60-14271	Hose	1	SN: 30001-UP
	?	20Y-62-22790	Band, Red	3	SN: 30001-UP
	?	23J-60-14281	Hose	1	SN: 30001-UP
	?	20Y-62-22830	Band, White	3	SN: 30001-UP
	?	23J-40-12111	Hose	1	SN: 30001-UP
	?	20Y-62-22820	Band, Blue	3	SN: 30001-UP
	?	23J-40-12121	Hose	1	SN: 30001-UP
	?	20Y-62-22810	Band, Yellow	3	SN: 30001-UP
	?	23J-40-11140	Tube(Steering Oil Piping,Piping and Mounting)	-1	SN: UP	H4410-001001
	?	23J-40-11150	Tube(Steering Oil Piping,Piping and Mounting)	-1	SN: UP	H4410-001001
	?	23J-60-13190	Tube(Control Valve,Control Valve Piping)	-1	SN: UP	H0120-001030
	?	23J-60-13161	Tube(Control Valve,Control Valve Piping)	-1	SN: UP	H0120-001030
	?	23J-60-13171	Tube(Control Valve,Control Valve Piping)	-1	SN: UP	H0120-001030
	?	23J-40-11131	Joint(Steering Oil Piping,Piping and Mounting)	-1	SN: UP	H4410-001001
	?	23J-40-11130	Joint(Steering Oil Piping,Piping and Mounting)	-1	SN: UP	H4410-001001
	?	23J-60-13810	Tee(Front Hydraulic Piping,Articulate Cylinder Piping)	-1	SN: UP	H5210-001005
	?	23J-60-13810	Tee(Front Hydraulic Piping,Articulate Cylinder Piping)	-1	SN: UP	H5210-001005
