Manipulator |
1 |
|
991-0237b |
|
|
? |
|
Manipulator |
1 |
|
991-0238b |
|
|
? |
|
Pilot oil unit |
1 |
|
090-0441 |
|
|
? |
|
Pilot oil unit |
1 |
|
090-2863a |
|
|
? |
|
Pilot oil unit |
1 |
|
090-2863a |
|
|
? |
320 214 99
|
Screw |
8 |
|
|
|
|
? |
340 506 99
|
Washer |
11 |
|
|
|
|
? |
377 750 99
|
Bolt |
11 |
|
|
|
|
? |
507 025 98
|
Nut (Bullclam) |
3 |
|
|
|
|
? |
|
Pilot oil unit (Bullclam) |
1 |
|
090-0788 |
|
|
? |
319 418 99
|
Screw (Bullclam |
3 |
|
|
|
|
? |
|

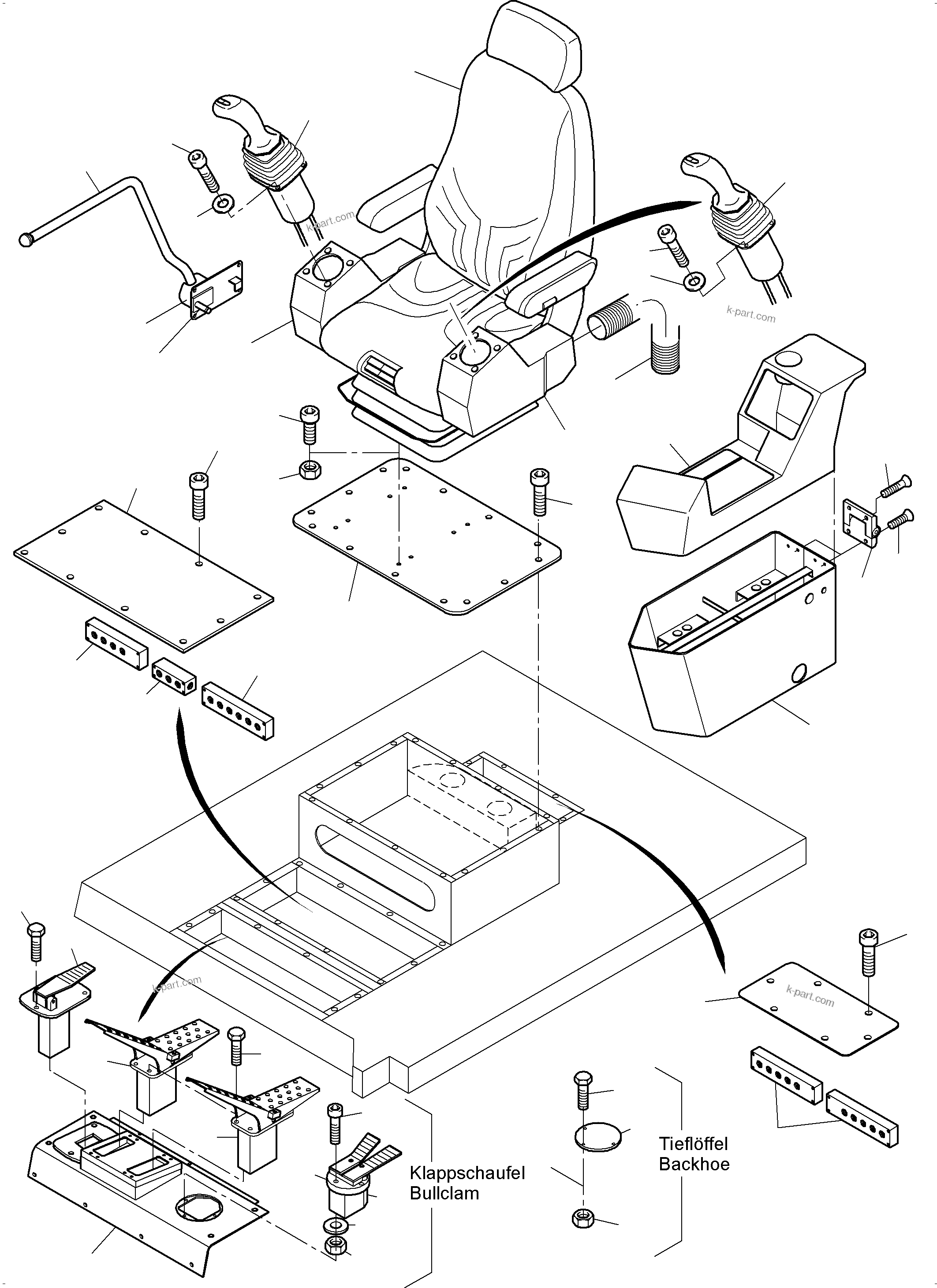

Operator's seat |
1 |
|
991-1397 |
|
|
? |
794 463 73
|
Retainer for pilot oil unit, l.h. |
1 |
|
|
|
|
? |
794 464 73
|
Retainer for pilot oil unit, r.h. |
1 |
|
|
|
|
? |
794 465 73
|
Lever assy. |
1 |
|
|
|
|
? |
794 466 73
|
Pedal cover |
1 |
|
|
|
|
? |
794 467 73
|
Cover |
1 |
|
|
|
|
? |
794 468 73
|
Cover |
1 |
|
|
|
|
? |
794 469 73
|
Pedal cover |
1 |
|
|
|
|
? |
794 470 73
|
Connecting block |
1 |
|
|
|
|
? |
794 471 73
|
Connecting block |
1 |
|
|
|
|
? |
794 472 73
|
Connecting block |
1 |
|
|
|
|
? |
794 473 73
|
Connecting block |
2 |
|
|
|
|
? |
794 474 73
|
Operation panel - base |
1 |
|
|
|
|
? |
794 475 73
|
Operation panel - upper |
1 |
|
|
|
|
? |
794 476 73
|
Hinge |
1 |
|
|
|
|
? |
321 212 99
|
Screw |
6 |
|
|
|
|
? |
321 231 99
|
Screw |
4 |
|
|
|
|
? |
332 332 99
|
Nut |
10 |
|
|
|
|
? |
319 135 99
|
Screw |
20 |
|
|
|
|
? |
504 136 98
|
Screw |
10 |
|
|
|
|
? |
414 272 40
|
Flex. hose DN 80 |
2 |
|
|
|
|
? |
793 758 73
|
Switch |
1 |
|
|
|
|
? |
906 761 40
|
Grommet 30 |
12 |
|
|
|
|
? |
906 760 40
|
Grommet 40 |
3 |
|
|
|
|
? |
907 223 40
|
Grommet 15 |
3 |
|
|
|
|
? |
906 758 40
|
Seal |
1 |
|
|
|
|
? |
906 762 40
|
Shim |
1 |
|
|
|
|
? |
907 105 40
|
Rail |
2 |
|
|
|
|
? |
796 750 73
|
Shaft |
1 |
|
|
|
|
? |
921 523 40
|
Face |
1 |
|
|
|
|
? |
907 104 40
|
Grommet 20 |
6 |
|
|
|
|
? |
935 299 40
|
Sheet |
1 |
|
|
|
|
? |
928 812 40
|
Cover (Backhoe) |
1 |
|
|
|
|
? |
516 414 98
|
Screw (Backhoe) |
3 |
|
|
|
|
? |
507 025 98
|
Nut (Backhoe) |
3 |
|
|
|
|
? |

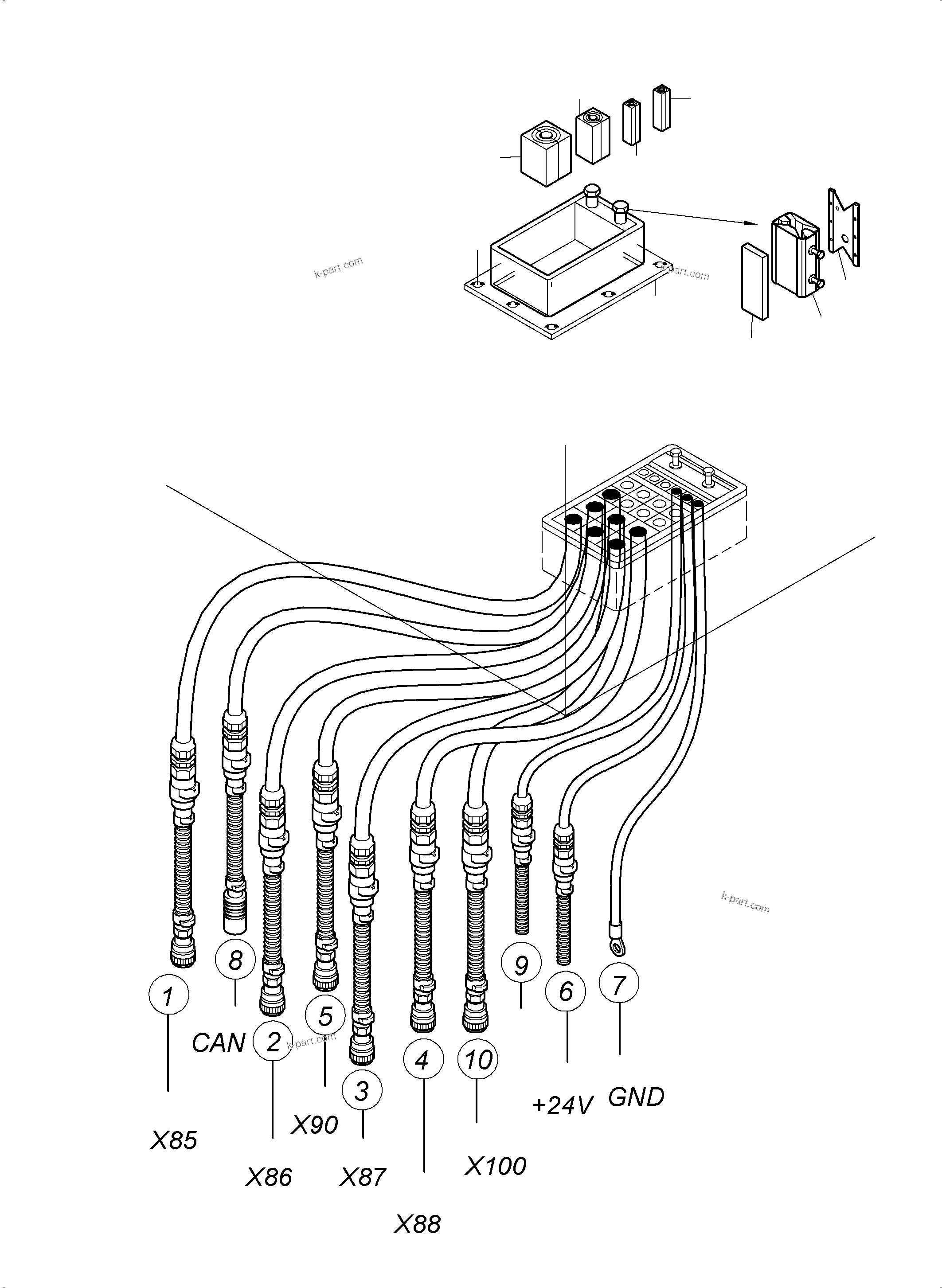

799 640 73
|
Harness 1 - X85 (30x1,5) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 641 73
|
Harness 2 - X86 (30x1,5) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 642 73
|
Harness 3 - X87 (30x1,5) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 643 73
|
Harness 4 - X88 (20x2,5) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 644 73
|
Harness 5 - X90 (20x2,5) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 645 73
|
Harness 6 - +24V (1x16) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 646 73
|
Harness 7 - GND (1x95) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 647 73
|
Harness 8 - CAN (3x1) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 648 73
|
Harness 9 |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
799 649 73
|
Harness 10 - X100 (30x1,5) |
1 |
|
|
|
|
? |
|
On Ordering specify circuit diagram with index, Cabins serial no. and Serial No |
-2 |
|
|
|
|
? |
|
|
