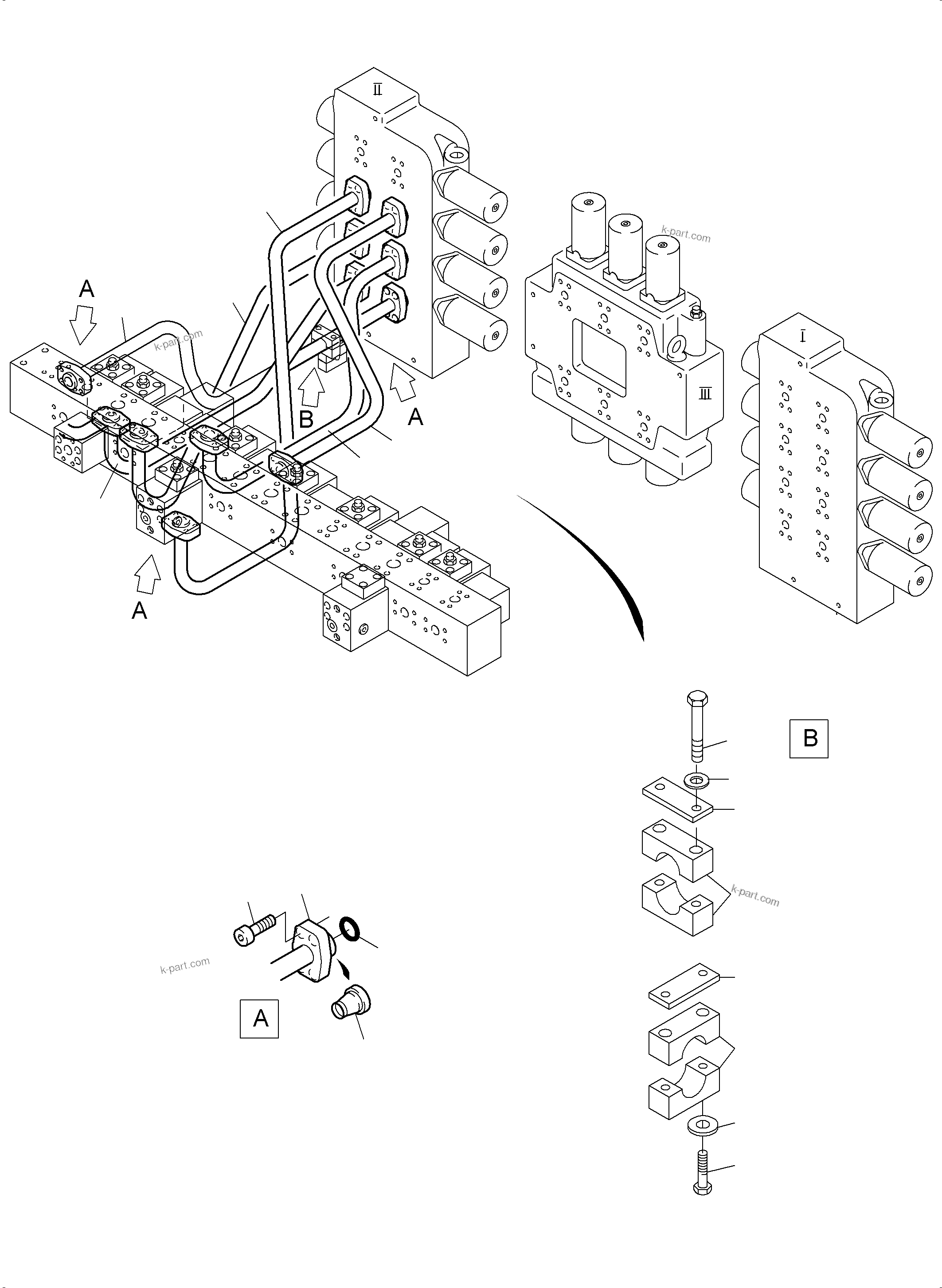

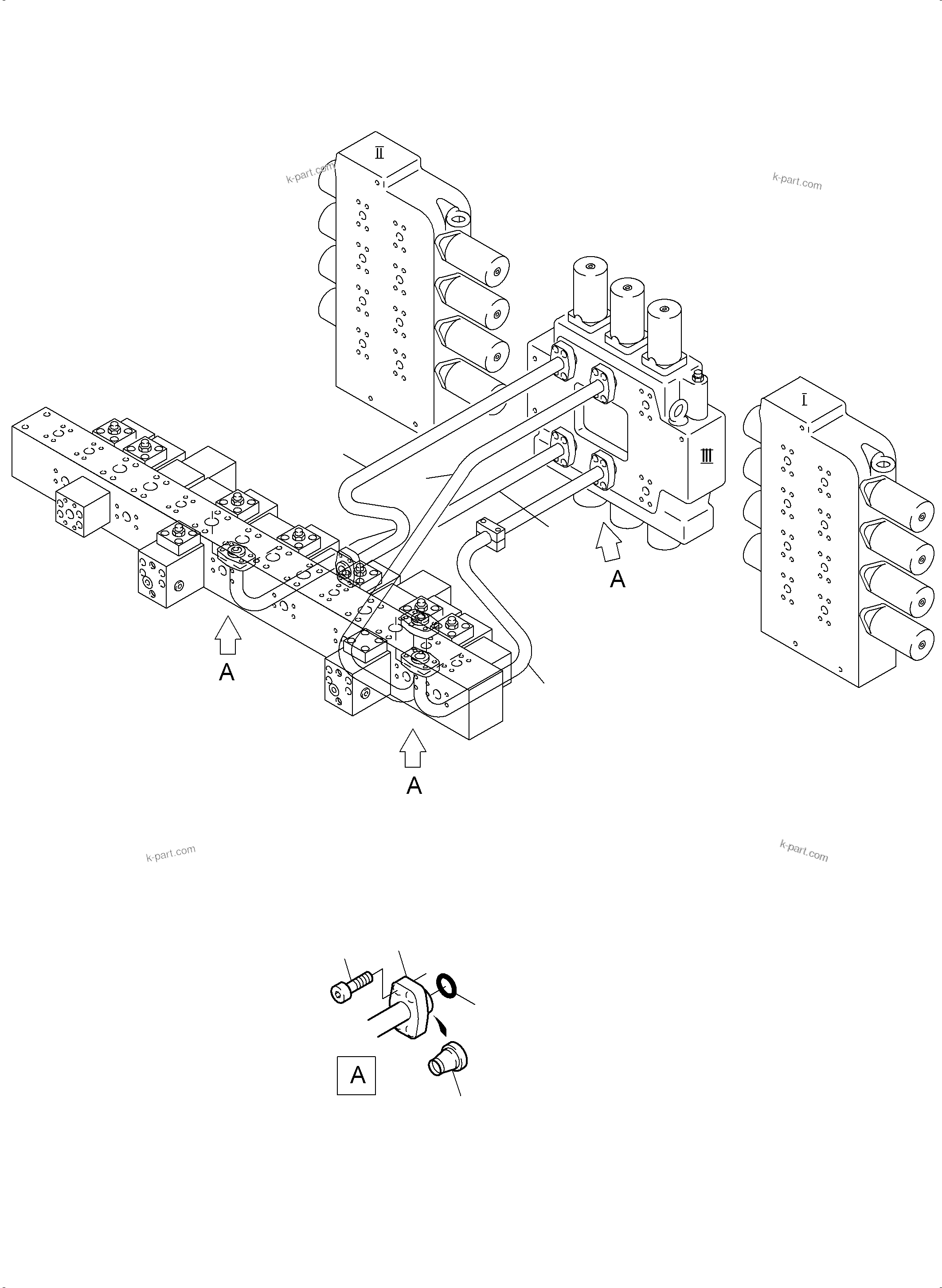

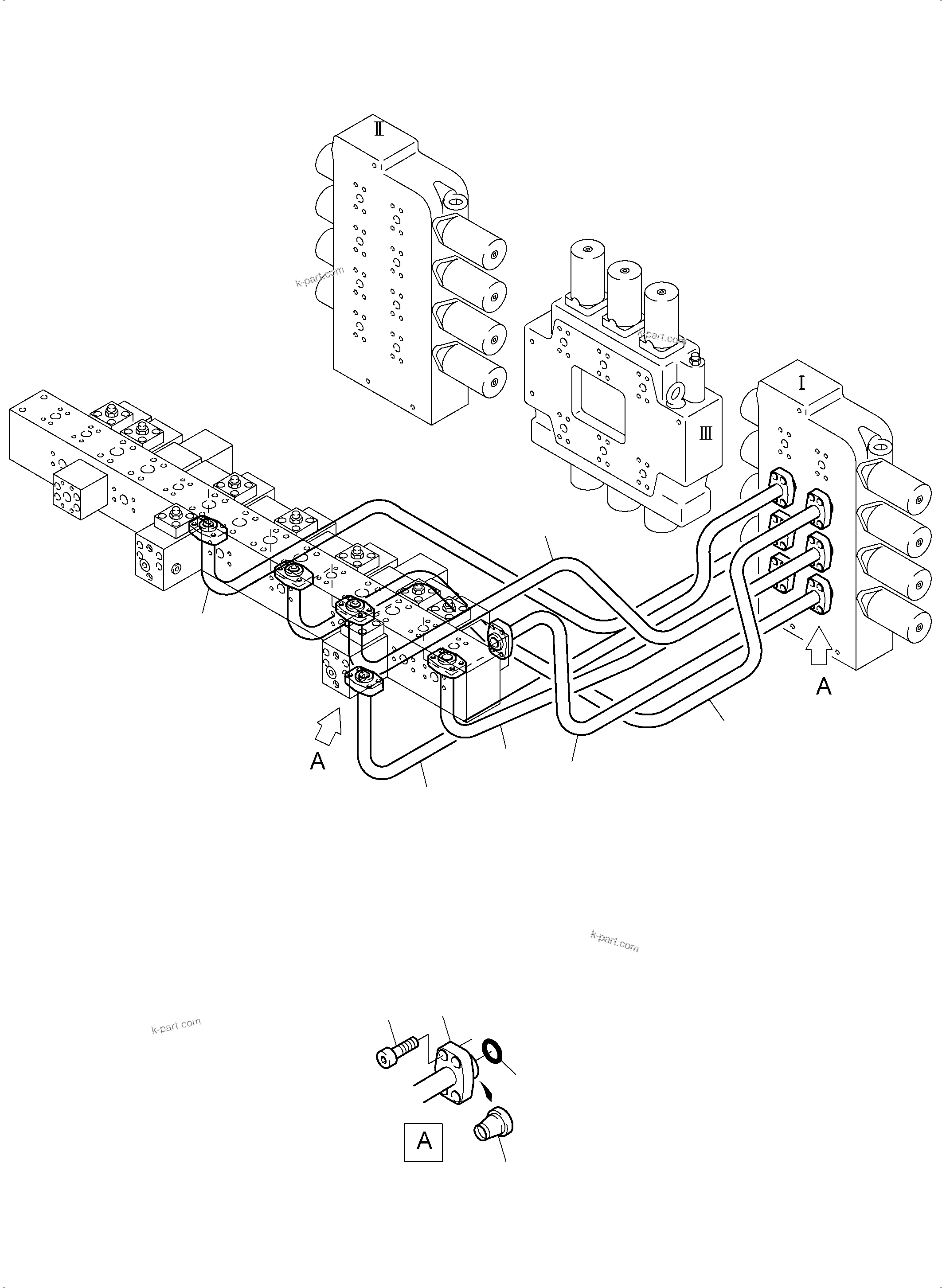

Diagram image 1 of 3

PC3000-6E S/N 06313

? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06313

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06313

? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	793 440 73	Pipe assy. Ш 50	1
?	796 997 73	Pipe assy. Ш 50	1
?	793 442 73	Pipe assy. Ш 50	1
?	793 381 73	Pipe assy. Ш 50	1
?	793 443 73	Pipe assy. Ш 50	1
?	793 444 73	Pipe assy. Ш 50	1
?	793 445 73	Pipe assy. Ш 50	1
?	793 446 73	Pipe assy. Ш 50	1
?	793 447 73	Pipe assy. Ш 50	1
?	796 738 73	Pipe assy. Ш 50	1
?	793 449 73	Pipe assy. Ш 50	1
?	793 450 73	Pipe assy. Ш 50	1
?	793 451 73	Pipe assy. Ш 50	1
?	793 452 73	Pipe assy. Ш 50	1
?	793 453 73	Pipe assy. Ш 50	1
?	793 454 73	Pipe assy. Ш 50	1
?	500 127 98	Flange	32
?	501 898 98	Collar ring	32
?	356 209 40	Flange seal	32
?	319 289 99	Bolt	128
?	512 885 98	Pair of clamps	1
?	534 008 40	Cover plate	1
?	517 118 98	Washer	6
?	308 599 99	Bolt	6
?	518 036 98	Pair of clamps	1
?	534 004 99	Cover plate	1
?	308 581 99	Bolt	2
?	517 122 98	Washer	6
