AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-54-23610	HANDRAIL	1
?	58E-54-70290	GATE ASSEMBLY - RH	1
?	58E-54-23601	HANDRAIL ASSEMBLY	1
?	MM0619	CAPSCREW - M12 X 1.75 X 35	11
?	MM0714	FLAT WASHER, HARDENED - M12	73
?	MM0472	LOCKWASHER - M12	29
?	MM0179	NUT - M12 X 1.75	15
?	MM0620	CAPSCREW - M12 X 1.75 X 40	13
?	MM0462	FLAT WASHER - M12	10
?	58F-09-00410	LOCKNUT - M12 X 1.75	15
?	PC2325	SPRING	1
?	58F-54-05460	PLATE, BENT	1
?	58F-54-05470	SPACER	1
?	58F-54-30000	PLATE, BENT	1
?	MM0613	CAPSCREW - M10 X 1.50 X 80	1
?	MM0012	CAPSCREW - M16 X 2.00 X 25	8
?	MM0706	FLAT WASHER, HARDENED - M16	8
?	EM2742	PLATE	2
?	EM5080	HANDRAIL, STAIR	1
?	MM0618	CAPSCREW - M12 X 1.75 X 30	8
?	EM2731	HANDRAIL, RH VERTICAL LADDER	2
?	MM0624	CAPSCREW - M12 X 1.75 X 70	4
?	MM0471	LOCKWASHER - M10	1
?	MM0461	FLAT WASHER - M10	2
?	MM0178	NUT - M10 X 1.50	1
?	58F-54-05520	HINGE	2
?	MM0616	CAPSCREW - M12 X 1.75 X 20	4
?	MM0623	CAPSCREW - M12 X 1.75 X 60	8

Komatsu AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY parts catalog PDF

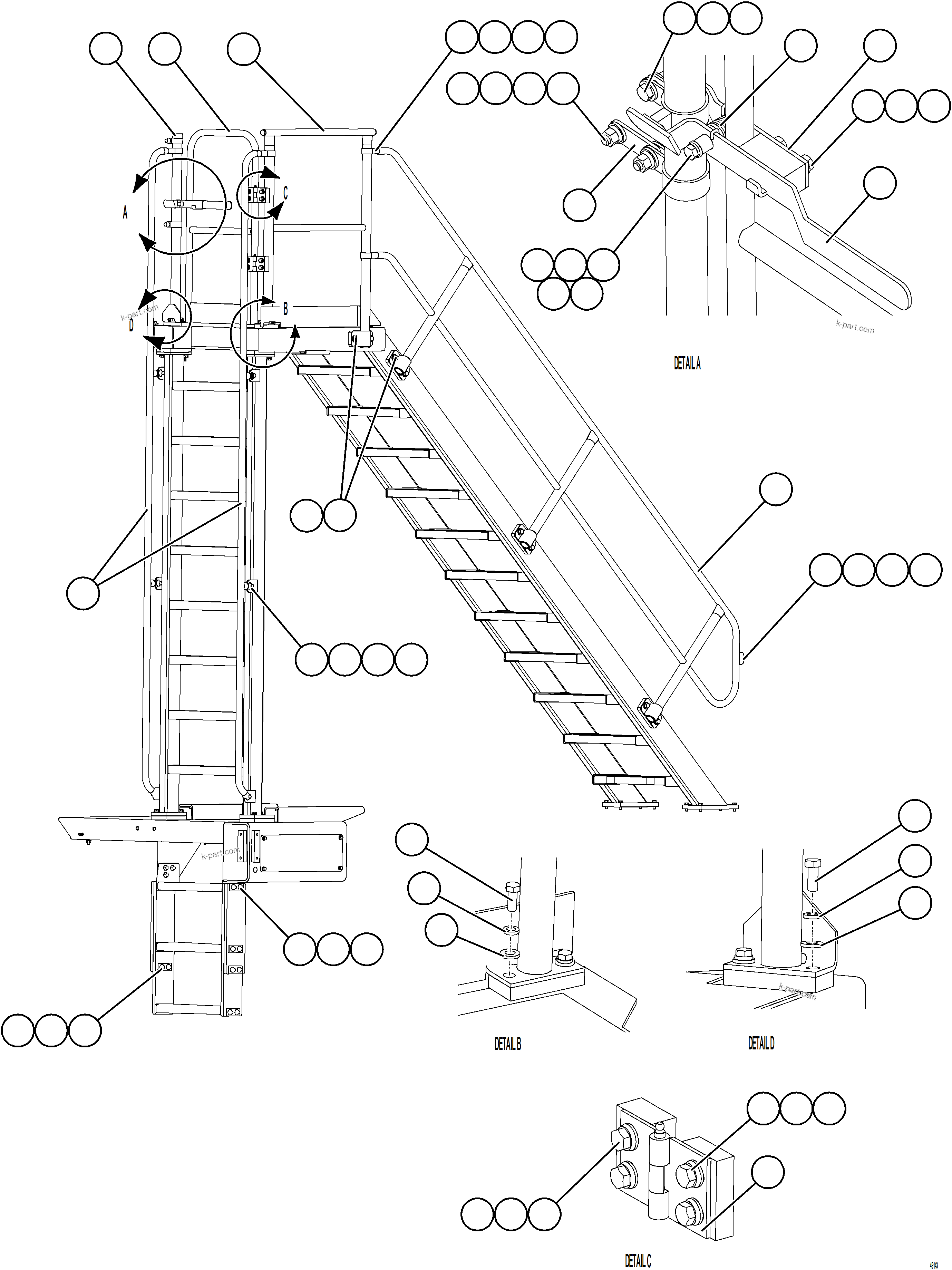

RH & DIAGONAL LADDER HANDRAILS (49143) in AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY. Diagram image and parts list.
