AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY

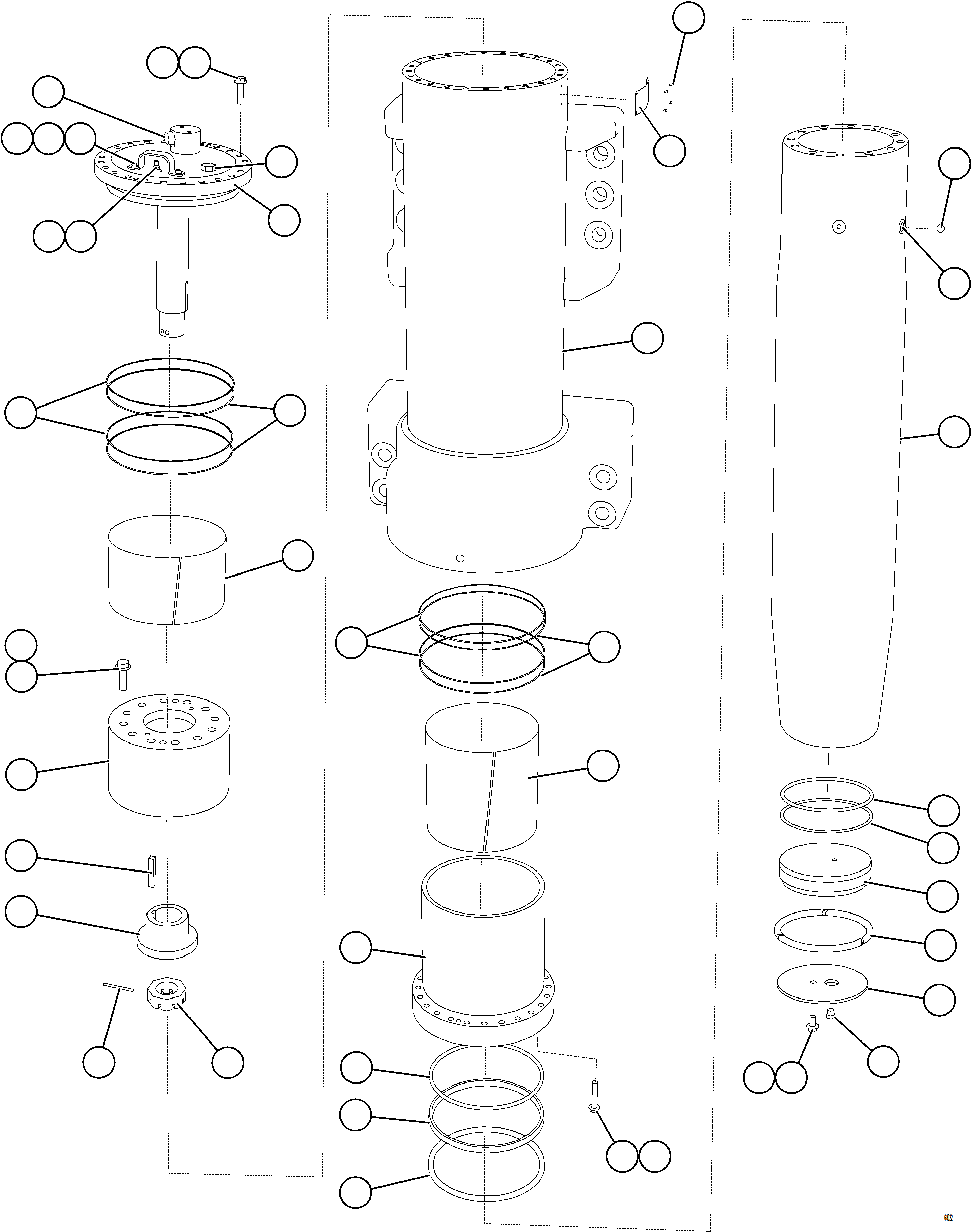

24 23 25 22 19 20 21 11 7 3 2 29 27 13 18 26 7 6 16 15 14 30 17 18 13 12 9 8 10 31 32 33 34 35 36 37 38 28 6 1 4 5 39

#	Part Number	Partname	Quantity
1	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
2	C0312	LOCKWASHER - 3/8"	2
3	TM9278	PROTECTOR	1
4	TZ8637	PLUG, SENSOR	1
5	TY8879	PLUG, VENT (1)	1
6	VN9140	CAPSCREW - 3/4" - 10NC X 4"	48
7	WA0362	FLAT WASHER - 3/4"	48
8	R1073	DRIVE SCREW - #6 X 3/16"	8
9	WA2892	PLATE, DANGER	2
10	H2981	BALL, STEEL (1)	4
11	VD5076	GASKET, FLAT (2)	1
12	58E-50-00220	HOUSING	1
13	58E-50-50090	RING, BACKUP (1)	4
14	PC0627	SEAL, WIPER - 14" (1)	1
15	PC0625	SEAL, ROD DOUBLE LIP - 14" (1)	1
16	PC0626	SEAL, ROD BUFFER - 14" (1)	1
17	58E-50-10400	RETAINER, BEARING - LOWER	1
18	58E-50-50080	O-RING (1)	4
19	VW4451	NUT, WHEEL	1
20	VC2629	PIN (1)	1
21	EH6529	STOP, PISTON	1
22	EH6536	KEY, SQUARE	1
23	58E-50-00011	BEARING RETAINER, UPPER	1
24	PC2871	BEARING, UPPER	1
25	VN9096	CAPSCREW - 7/8" - 9NC X 2 3/4"	12
26	WA0363	FLAT WASHER, HARDENED - 7/8"	12
27	EH7326	CAP, SUSPENSION	1
28	PC2880	BEARING, LOWER	1
29	PB2194	CHARGING VALVE ASSEMBLY (2)	1
30	58E-50-00131	PISTON ASSEMBLY	1
30	58E-50-00140	PISTON	1
31	58F-50-50460	O-RING (1)	1
32	58F-50-50470	RING, BACKUP (1)	1
33	XB4388	PLUG, PISTON	1
34	XB4389	RING, RETAINER	3
35	XB4390	PLATE, RETAINER	1
36	VN9032	CAPSCREW - 1/2" - 13NC X 1"	1
37	WA0360	FLAT WASHER, HARDENED - 1/2"	1
38	VM0314	PLUG (1)	1
39	58B-50-00900	BOSS, PISTON	4
NS\|41		NOTE: NS = NOT SHOWN	-1
NS\|42	WA3925	DECAL, HYDRAIR II	1
NS\|43	AK4063	SUSPENSION OIL MIXTURE - 5 GAL	-1
NS\|44	AK4064	SUSPENSION OIL MIXTURE - 55 GAL	-1
NS\|45	58E-FS-AK010	NOTE: (1) INCLUDED IN 58E-FS-AK010 SEAL KIT.	-1
NS\|46	RK1887	(2) INCLUDED IN RK1887 CHARGING VALVE REPAIR KIT.	-1
NS\|47		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1

Komatsu AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY parts catalog PDF

FRONT SUSPENSION 58E-50-00501 (68022) in AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY. Diagram image and parts list.
