D155AX-8E0 S/N 110001-UP

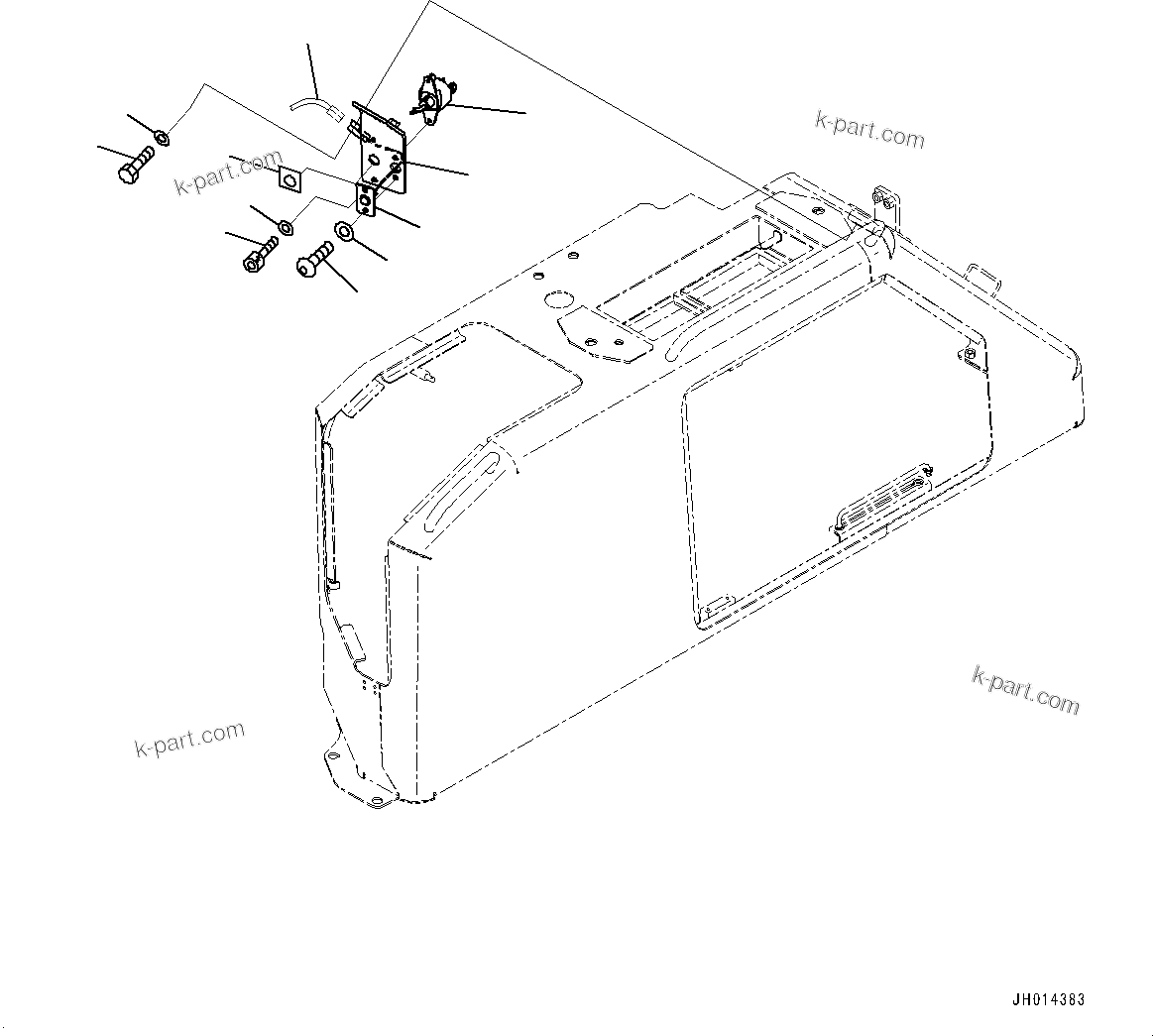

Komatsu parts book diagram for D155AX-8E0 S/N 110001-UP: FENDER RELATED PARTS, DISCONNECT SWITCH(#100048-)

? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	17A-06-62471	Bracket	1	SN: 100352-UP
	?	17A-06-62470	Bracket	1	SN: 100205-100351 \| SCC: A2
	?	17A-06-62451	Bracket	1	SN: 100048-100204 \| SCC: A2
	?	09697-00002	Plate, Battery Disconnect Switch	1	SN: 100205-UP
	?	09697-00001	Plate, Battery Disconnect Switch	1	SN: 100048-100204 \| SCC: A2
	?	08068-00011	Switch, Battery Disconnect	1	SN: 100205-UP
	?	08068-00001	Switch, Battery Disconnect	1	SN: 100048-100204 \| SCC: A2
	?	08068-00012	Key	1	SN: 100048-UP
	?	01252-70825	Bolt, Hexagon Socket Head	2	SN: 100048-UP
	?	01643-30823	Washer	2	SN: 100048-UP
	?	12Y-06-39110	Lamp	1	SN: 100420-UP
	?	08155-02400	Lamp	1	SN: 100048-100419
	?	01245-00825	Screw	2	SN: 100048-UP
	?	01643-70823	Washer	2	SN: 100048-UP
	?	01010-81225	Bolt	2	SN: 100048-UP
	?	01643-31232	Washer	2	SN: 100048-UP
	?	17A-06-61133	Wiring Harness(Fender,Main Wiring Harness)	-1	SN: UP	M2210-011003
	?	17A-06-61133	Wiring Harness(Fender,Main Wiring Harness)	-1	SN: UP	M2210-013003
	?		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu D155AX-8E0 S/N 110001-UP parts catalog PDF

FENDER RELATED PARTS, DISCONNECT SWITCH(#100048-) (M2214-002007) in D155AX-8E0 S/N 110001-UP. Diagram image and parts list.
