D475A-8E0 S/N 51001-UP

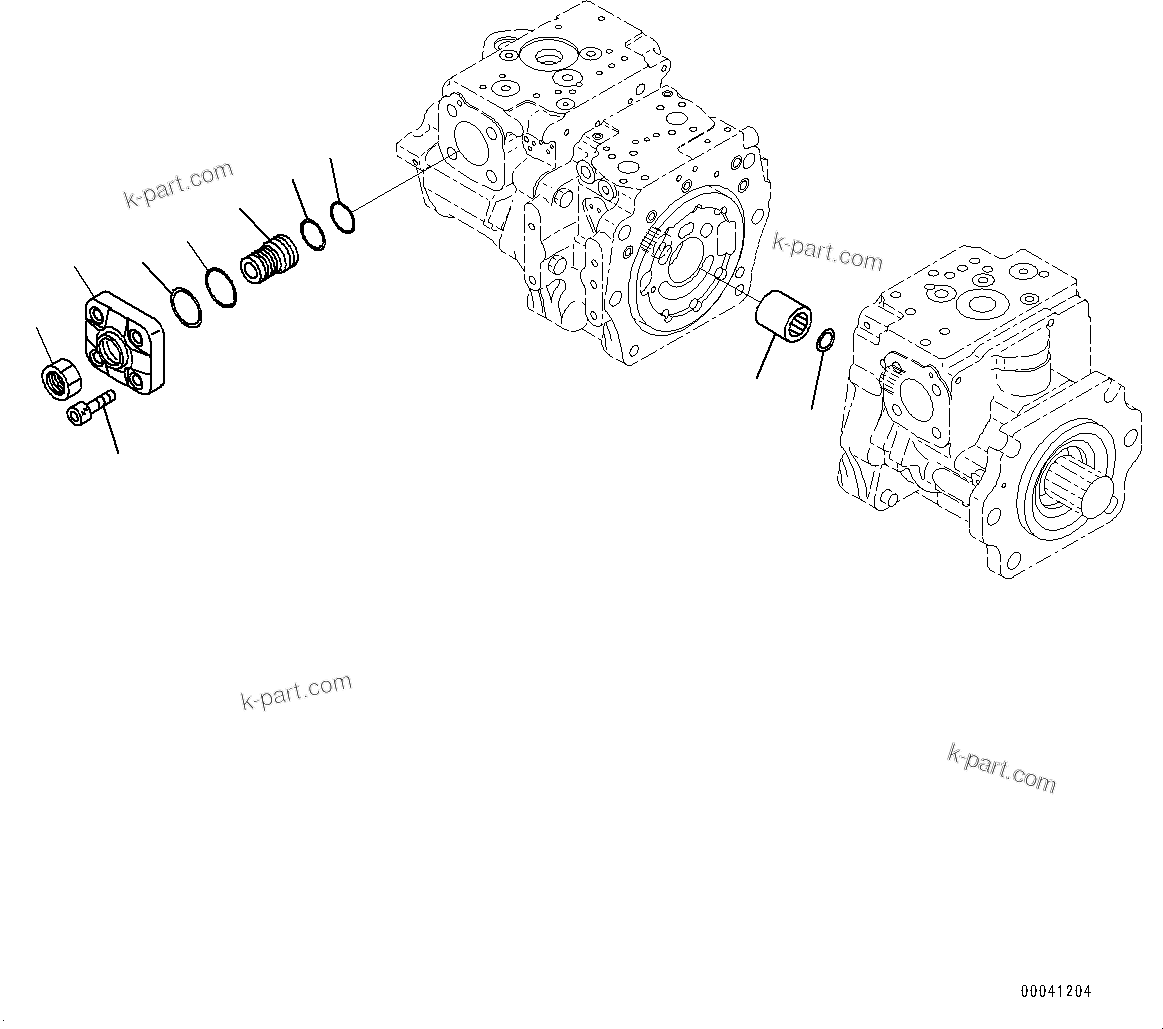

Komatsu parts book diagram for D475A-8E0 S/N 51001-UP: HYDRAULIC PUMP, PISTON PUMP (9/11)(#50001-)

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	708-2G-00540	Pump Assembly	1	SN: 50001-UP
	?		Pump Subassembly	1	SN: 50001-UP \| SCC: C1
	?	708-2G-03480	Cover Assembly, Rear	1	SN: 50001-UP \| SCC: C2
	?		Screw	1	SN: 50001-UP \| SCC: C1
	?	07000-B3038	O-ring	1	SN: 50001-UP \| SCC: C2
	?	708-2G-15230	Ring, Back-up	1	SN: 50001-UP \| SCC: C2
	?	708-2L-35290	Nut	1	SN: 50001-UP \| SCC: C2
	?		Cover	1	SN: 50001-UP \| SCC: C1
	?	07000-B2050	O-ring	1	SN: 50001-UP \| SCC: C2
	?	708-2G-15310	Ring, Back-up	1	SN: 50001-UP \| SCC: C2
	?	01252-61645	Bolt, Hexagon Socket Head	4	SN: 50001-UP \| SCC: C2
	?	708-2G-12130	Coupling	1	SN: 50001-UP \| SCC: C2
	?	708-2F-12420	Ring	1	SN: 50001-UP \| SCC: C2
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
	?		[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu D475A-8E0 S/N 51001-UP parts catalog PDF

HYDRAULIC PUMP, PISTON PUMP (9/11)(#50001-) (H0210-001009) in D475A-8E0 S/N 51001-UP. Diagram image and parts list.
