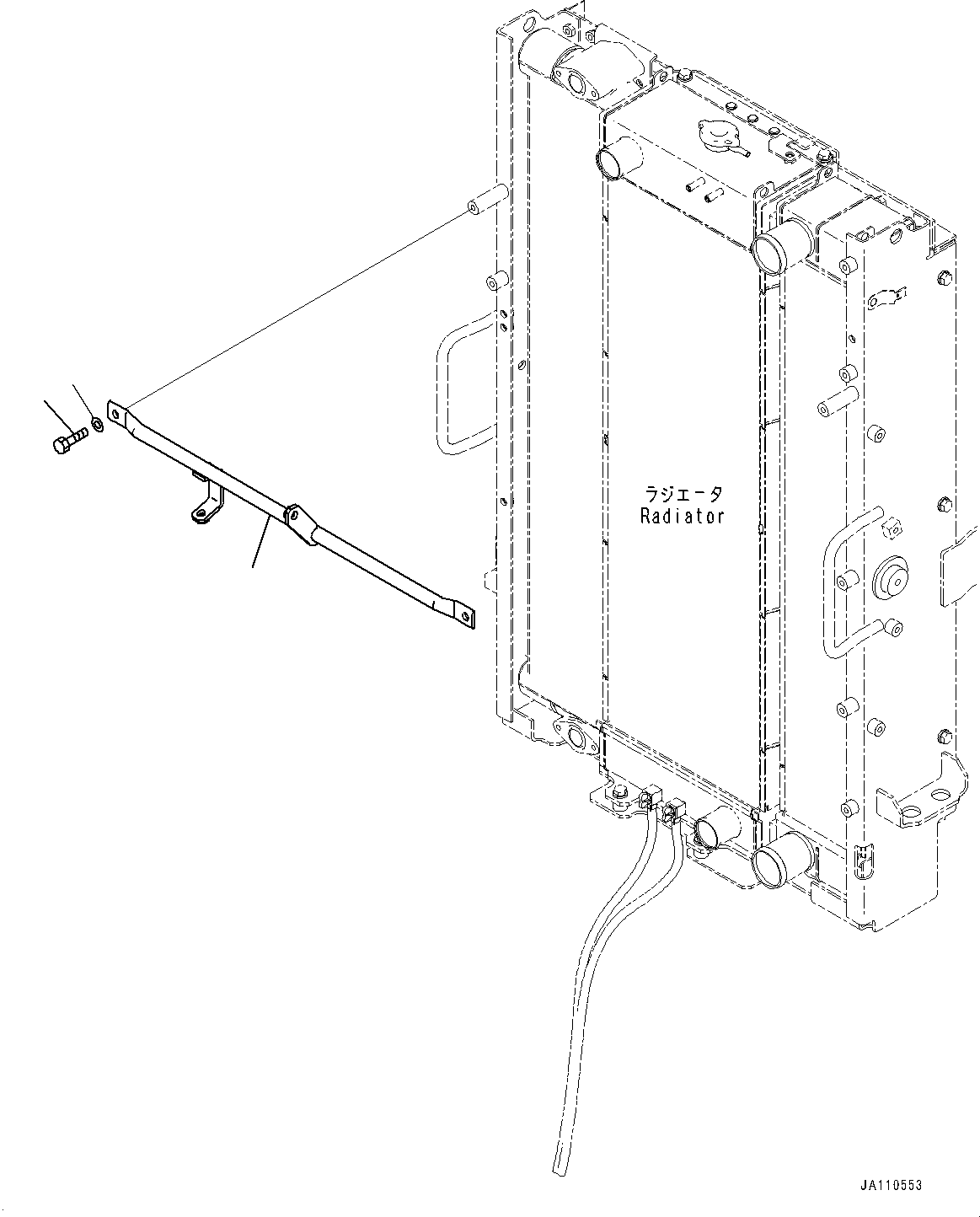

Komatsu parts book diagram for WA200-8 S/N 91001-UP: RADIATOR, PIPING MOUNTING(#87097-)

1 2 3

	#	Part Number	Partname	Quantity	Options	Reference
	1	417-03-63751	Cover	1	SN: 87553-UP
	\|$1	417-03-61890	Frame	1	SN: 87097-87552 \| SCC: A2
	2	01010-81020	Bolt	2	SN: 87553-UP
	\|$3	01010-81025	Bolt	2	SN: 87097-87552
	3	01643-31032	Washer	2	SN: 87097-UP
	\|$5		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu WA200-8 S/N 91001-UP parts catalog PDF

RADIATOR, PIPING MOUNTING(#87097-) (C0110-001008) in WA200-8 S/N 91001-UP. Diagram image and parts list.
