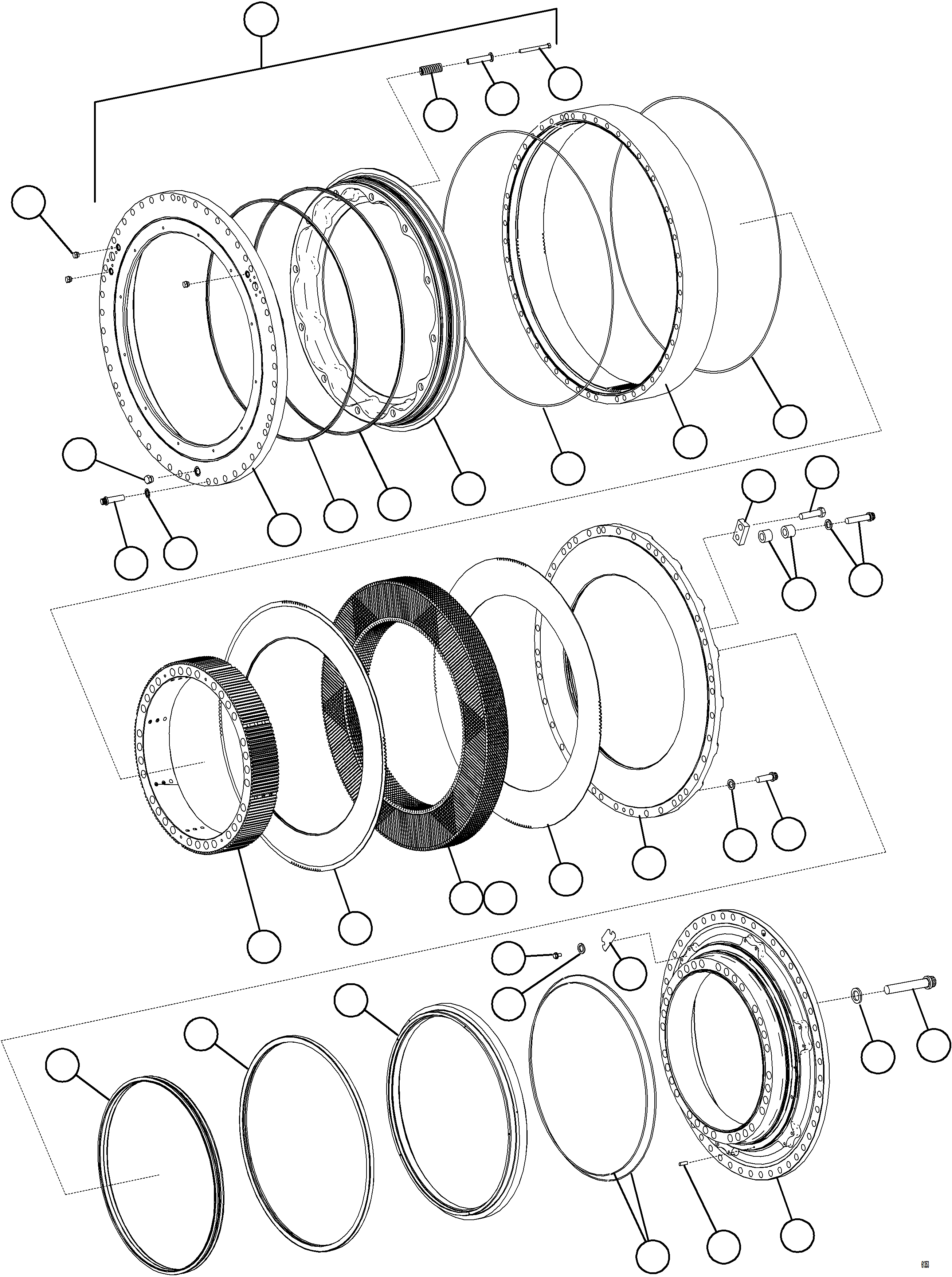

REAR BRAKE ASSEMBLY | AFE75-BC 980E-5 S/N A50221 KCH

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE75-BC 980E-5 S/N A50221 KCH

9 3 13 16 1 4 2 5 8 7 6 10 11 12 10 14 14 15 17 19 18 19 31 20 21 22 23 25 26 27 28 29 30 32 34 33 35 24

#	Part Number	Partname	Quantity
\|$1	58B-33-50050	BRAKE ASSEMBLY - REAR	1
1	NSS	PISTON ASSEMBLY	1
2	EM1140	HOUSING, PISTON	1
3	58B-33-00170	SEAL ASSEMBLY (4)	1
4	58B-33-00180	SEAL ASSEMBLY (4)	1
5	EJ5849	PISTON	1
6	EJ6986	SPRING, COMPRESSION	12
7	EJ6985	GUIDE, SPRING	12
8	VN9149	CAPSCREW - 1/2" - 13NC X 4 1/2"	12
9	VM0317	PLUG	1
10	EM8371	DAMPER (1)	2
11	EM8365	DISC, SEPARATOR (1)	10
12	EM8366	DISC, FRICTION (1)	11
13	EK3514	GEAR, INNER	1
14	EH7197	O-RING (4)	2
15	58B-33-40010	GEAR, OUTER	1
16	VM0315	PLUG	3
17	58B-33-40120	PLATE, BACK	1
18	WA0908	CAPSCREW - 1" - 8NC X 3"	39
19	WA4174	FLAT WASHER - 1"	42
20	PC1431	SEAL, OIL (4)	1
21	PC0651	SEAL ASSEMBLY (4)	1
22	58B-33-20010	CARRIER, SEAL	1
23	EH7195	O-RING (2)/(4)	2
24	TV7355	PIN, DOWEL	2
25	58B-33-20000	ADAPTER, HUB	1
26	WB1231	CAPSCREW - 1 1/4" - 12NF X 8"	32
27	58B-09-50080	FLAT WASHER, HARDENED - 1 1/4"	32
28	C1612	CAPSCREW - 1/2" - 13NC X 1"	12
29	WA0360	FLAT WASHER, HARDENED - 1/2"	12
30	ED3755	SHIM - .020"	-2
30	ED3756	SHIM - .010"	-2
31	EJ6997	CAPSCREW - 1" - 8NC X 3 1/2"	6
32	EK5266	PLATE (3)	3
33	C1670	CAPSCREW - 1" - 8NC X 4" (3)	3
34	EK5265	SPACER (3)	6
35	VN6848	CAPSCREW, SOCKET HEAD - 1" - 8NC X 5 1/2" (3)	3
35	WA4174	FLAT WASHER - 1" (3)	6
\|$39			-1
KT\|40	58B-BK-AK060	NOTE: (1) INCLUDED IN 58B-BK-AK060 BRAKE DISC KIT.	-1
KT\|41	58B-MH-AK030	(2) INCLUDED IN 58B-MH-AK030 REAR BRAKE	-1
		MOUNTING KIT.	-1
		(3) USED FOR ASSEMBLY AND STORAGE ONLY.	-1
		REMOVE WHEN INSTALLED ON THE TRUCK.	-1
KT\|45	58B-BK-AK070	(4) INCLUDED IN 58B-BK-AK070 REAR BRAKE	-1
		OVERHAUL KIT.	-1
