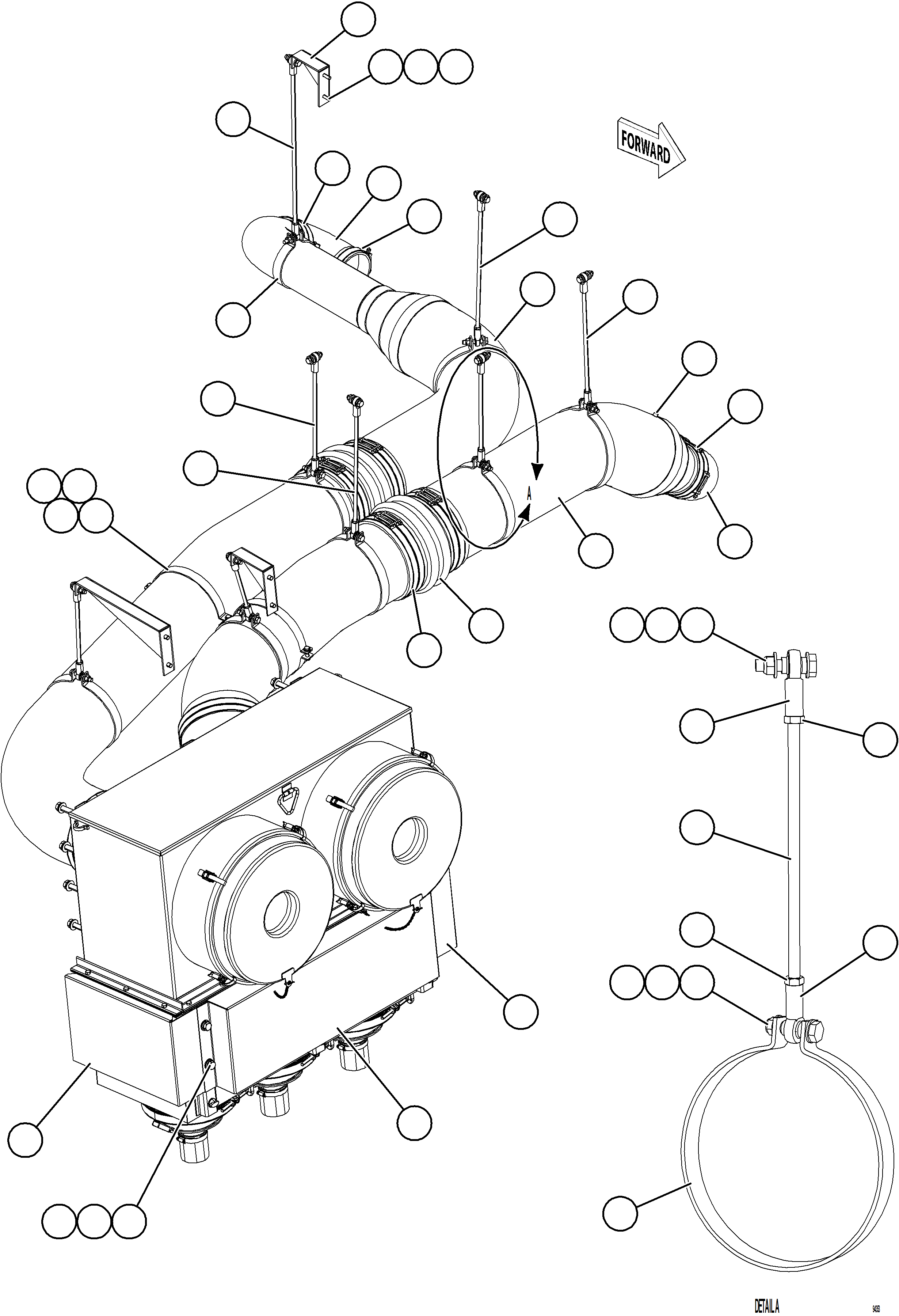

AIR CLEANER PIPING & INSTALLATION - RH 1/2 | AFE77-CN 830E-5 S/N A50294 - A50295 SMS

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE77-CN 830E-5 S/N A50294 - A50295 SMS

21 11 36 12 19 18 20 31 10 32 33 14 30 29 34 37 33 9 35 34 13 4 38 3 2 8 25 26 27 28 15 16 17 1 5 6 5 6 7 22 24 23

#	Part Number	Partname	Quantity
1	MM0624	CAPSCREW - M12 X 1.75 X 70	6
2	58B-09-01200	JAM NUT - M12 X 1.75	6
3	58B-09-00340	ROD END, FEMALE	6
4	58B-09-00440	ROD END, FEMALE	6
5	58F-09-00410	LOCKNUT - M12 X 1.75	11
6	MM0714	FLAT WASHER, HARDENED - M12	27
7	MM0622	CAPSCREW - M12 X 1.75 X 50	5
8	EJ9909	CLAMP	6
9	58F-09-00750	ROD, THREADED - M12 X 330	1
10	58B-09-01220	ROD, THREADED - M12 X 360	1
11	58B-09-00880	ROD, THREADED - M12 X 410	1
12	58F-09-00620	ROD, THREADED - M12 X 445	1
13	58B-09-00890	ROD, THREADED - M12 X 435	1
14	58E-09-00640	ROD, THREADED - M12 X 615	1
15	TR2961	CAPSCREW - 5/8" - 11NC X 1"	4
16	VC1390	LOCKWASHER - 5/8"	4
17	TR9082	FLAT WASHER - 5/8"	4
18	TB1406	RAIN GUARD, FRONT	1
19	TB1018	RAIN GUARD, SIDE	1
20	TB1019	RAIN GUARD, SIDE	1
21	58E-54-52071	BRACKET	1
22	MM0607	CAPSCREW - M10 X 1.50 X 35	2
23	MM0471	LOCKWASHER - M10	2
24	MM0461	FLAT WASHER - M10	2
25	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	3
26	HE5611	LOCKNUT - 3/8" - 16NC	3
27	WA4726	FLAT WASHER, HARDENED - 3/8"	6
28	EG7576	CLAMP, DOUBLE	2
29	WB1177	CLAMP, T-BOLT	8
30	PC1115	HOSE, DOUBLE HUMP	2
31	58E-02-50070	TUBE, INTAKE	1
32	58E-02-50041	TUBE, INTAKE	1
33	WB1170	CLAMP, T-BOLT	4
34	PC0858	ELBOW, REDUCING - 90 DEG	2
35	WB1169	CLAMP, T-BOLT	2
36	58E-02-50100	CLAMP - 6"	1
37	C5768	PLUG, PIPE - 1/8"	1
38	58B-09-01300	JAM NUT - M12 X 1.75	6
