SPINDLE, HUB AND BRAKE ASSEMBLY 2/2 | AFE78-EM 930E-5 S/N A40502 - A40505 KSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE78-EM 930E-5 S/N A40502 - A40505 KSA

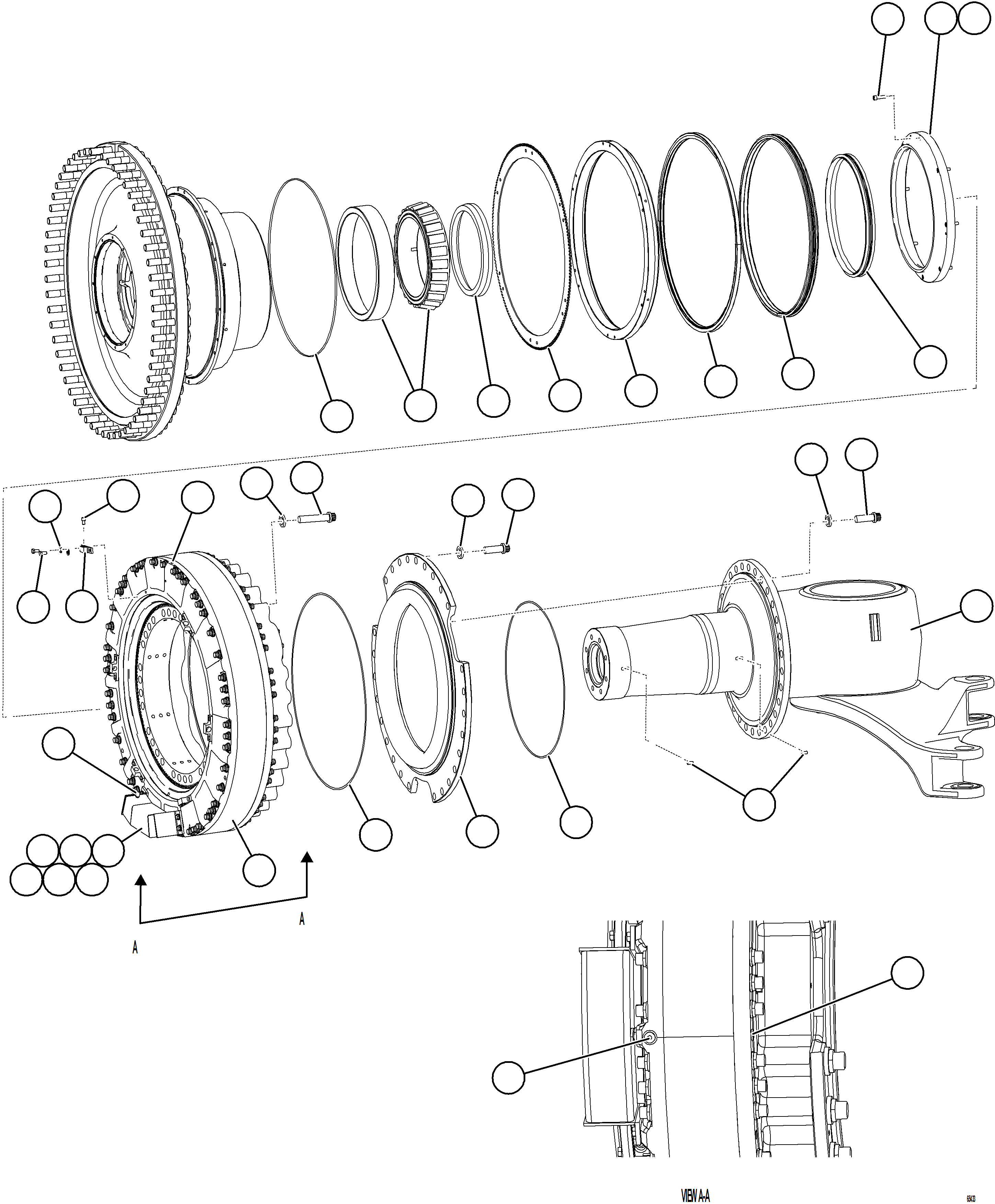

1 31 29 6 2 31 29 16 15 14 3 8 4 5 9 7 24 28 25 17 21 18 27 32 19 23 22 26 28 12 13 11 10 31 30 20 20

#	Part Number	Partname	Quantity	Reference
\|$1	58F-32-50072	SPINDLE, HUB AND BRAKE ASSEMBLY	1
1	EH7195	O-RING (1)	1
2	EJ7475	GEAR, SPEED SENSOR	1
3	58F-32-00202	SPINDLE	1
4	PC3059	BEARING ASSEMBLY, INNER (1)	1
5	562-22-32290	PIN (1)	2
6	ED3772	SPACER, BEARING	1
7	EH7194	O-RING (1)	1
8	EH7196	O-RING (1)	1
9	ED3775	ADAPTER, BRAKE	1
10	58F-32-50010	FRONT BRAKE ASSEMBLY (SEE FIG 65352)	1	65352
11	569-33-81241	ADAPTER	1
12	58C-32-00452	TANK, CATCHMENT	1
13	07002-52034	O-RING (1)	1
14	58F-32-40110	SEAL ASSEMBLY, FLOATING (2)	1
15	PC1431	SEAL, OIL (1)/(2)	1
16	58F-32-40030	CARRIER, SEAL	1
17	58F-32-40051	BRACKET, MOUNTING	6
18	58F-32-50030	SEAL ASSEMBLY, FLOATING (1)	1
19	58F-32-00161	CARRIER, FLOATING SEAL	1
20	WA4780	PLUG, O-RING	2
21	58F-22-00850	VENT, BREATHER (1)	2
22	07000-52018	O-RING (1)	1
23	58F-32-00180	O-RING (1)	1
24	D2930	CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 3/4"	6
25	C1612	CAPSCREW - 1/2" - 13NC X 1"	12
26	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
27	DF6928	CAPSCREW - 1/2" - 13NC X 1 3/4"	8
28	WA0360	FLAT WASHER, HARDENED - 1/2"	28
29	WA5669	CAPSCREW, 12 PT - 1 1/4" - 12NF X 3 1/2"	57
30	WB1231	CAPSCREW - 1 1/4" - 12NF X 8"	32
31	58B-09-50080	FLAT WASHER, HARDENED - 1 1/4"	75
32	H8402	PLUG - 3/8"	1
\|$34			-1
KT\|35	58F-SM-AK110	NOTE: (1) INCLUDED IN 58F-SM-AK110 SPINDLE	-1
		MAINTENANCE KIT. BALANCE OF PARTS ON PREVIOUS PAGE.	-1
KT\|37	58F-BK-AK071	(2) INCLUDED IN 58F-BK-AK071 FRONT BRAKE	-1
		SEAL KIT.	-1
		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1
