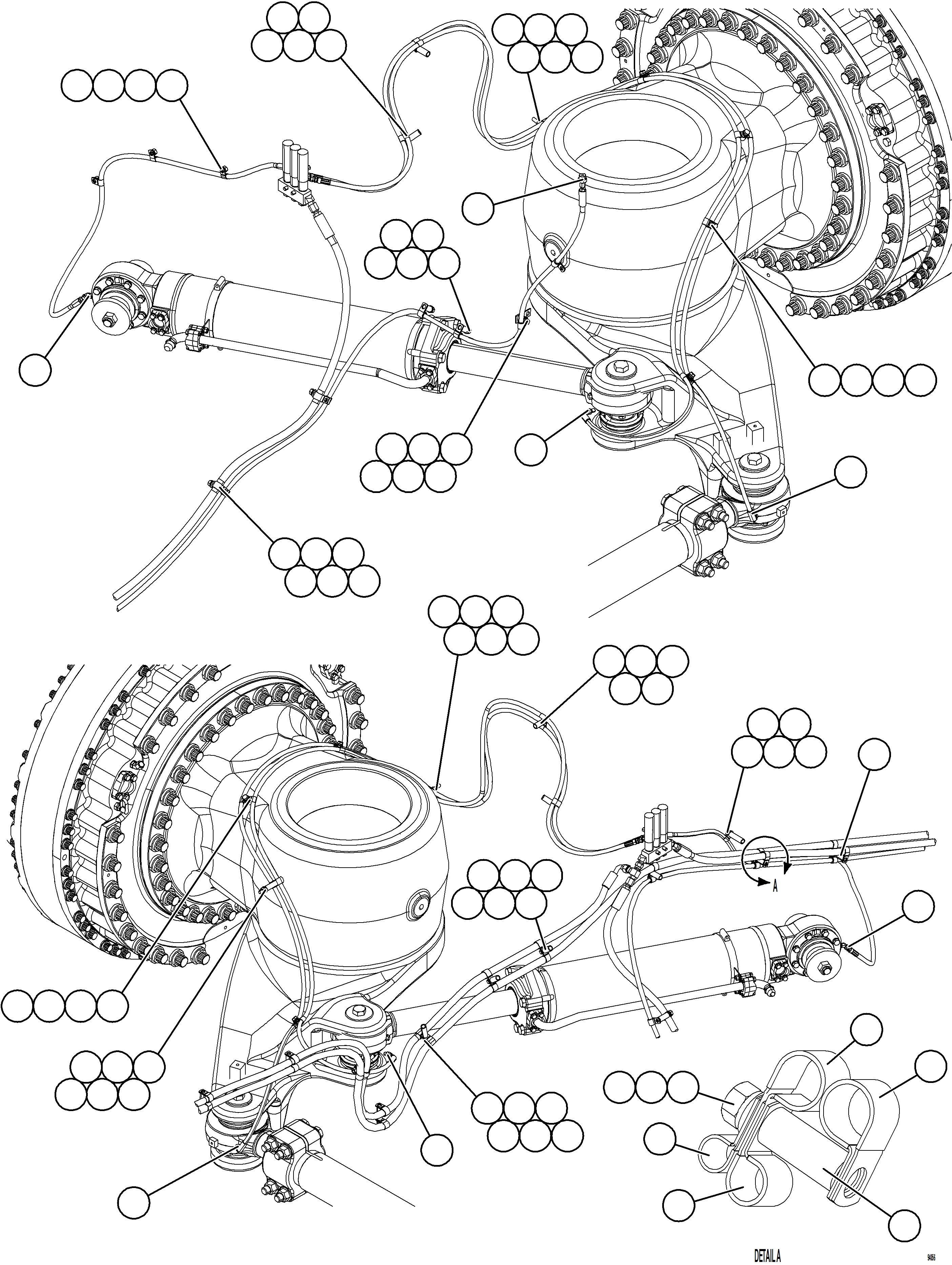

AUTOMATIC LUBRICATION SYSTEM PIPING - FRONT 2/4 | AFE78-EM 930E-5 S/N A40502 - A40505 KSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE78-EM 930E-5 S/N A40502 - A40505 KSA

14 5 2 3 4 9 4 5 1 2 3 4 9 2 3 4 12 13 1 1 2 3 4 10 5 1 7 1 1 17 2 3 11 18 2 3 4 1 2 3 4 10 1 2 3 4 10 12 1 2 3 4 10 12 1 5 1 2 3 13 14 15 2 3 6 14 15 2 3 10 11 15 2 3 11 16 17 19 2 3 11 10 15 7 13 1 2 3 4 8

#	Part Number	Partname	Quantity
1	MM0178	NUT - M10 X 1.50	25
2	MM0471	LOCKWASHER - M10	32
3	MM0461	FLAT WASHER - M10	32
4	WB3097	CLAMP, CUSHIONED - 1/2"	34
5	WB0574	FITTING, STRAIGHT	4
6	TY8375	SPACER	2
7	WB0531	FITTING, ELBOW - 45 DEG	2
8	EM7532	SPACER	1
9	MM0604	CAPSCREW - M10 X 1.50 X 20	7
10	EM1393	SPACER	14
11	WB1300	CLAMP, CUSHIONED - 5/8"	13
12	EL6380	ROD, THREADED	3
13	EK9883	SPACER	4
14	WB3855	CLAMP, CUSHIONED - 13/16"	7
15	WB3092	CLAMP, CUSHIONED - 7/8"	12
16	426-06-11570	BRACKET	1
17	WB0577	FITTING, STRAIGHT	1
18	EM1398	SPACER	2
19	MM0605	CAPSCREW - M10 X 1.50 X 25	1
