WA485-11E0 S/N H35051-UP

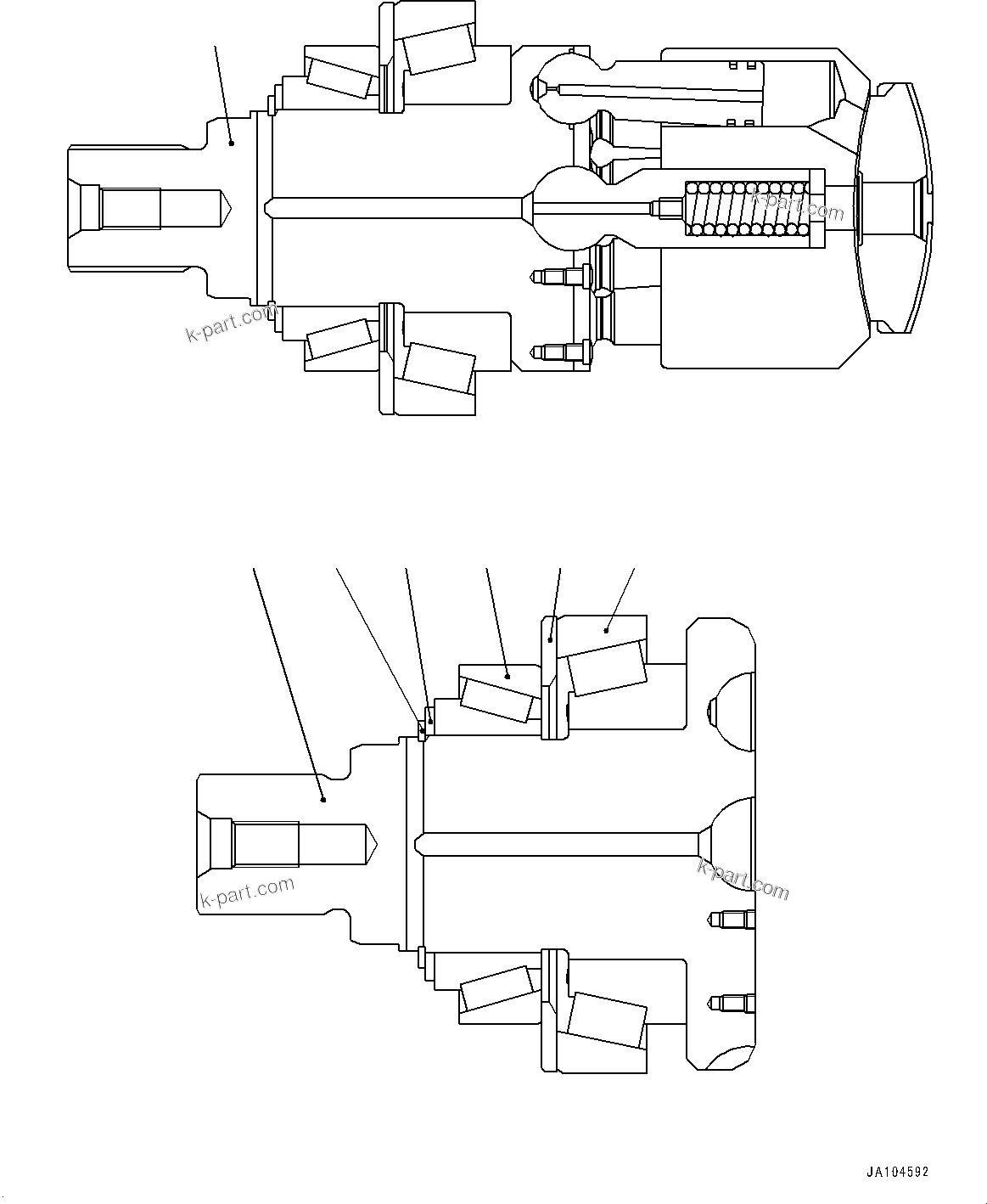

Komatsu parts book diagram for WA485-11E0 S/N H35051-UP: HYDROSTATIC TRANSMISSION (HST) MOTOR, INNER PARTS, HST MOTOR 1 (3/6)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	421-18-71201	Motor	1	SN: H35051-UP
	?	RER902149110	Rotary Group	1	SN: H35051-UP
	?	RER902149111	Drive Shaft Assembly	1	SN: H35051-UP
	?		Shaft, Drive	1	SN: H35051-UP \| SCC: C1
	?		Ring	1	SN: H35051-UP \| SCC: C1
	?	RER902077202	Disc Assembly	1	SN: H35051-UP
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Disc	1	SN: H35051-UP \| SCC: C1
	?		Ring	1	SN: H35051-UP \| SCC: C1
	?		Bearing, Taper Roller	1	SN: H35051-UP \| SCC: C1
	?		Bearing, Taper Roller	1	SN: H35051-UP \| SCC: C1
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1

Komatsu WA485-11E0 S/N H35051-UP parts catalog PDF

HYDROSTATIC TRANSMISSION (HST) MOTOR, INNER PARTS, HST MOTOR 1 (3/6) (F2430-001003) in WA485-11E0 S/N H35051-UP. Diagram image and parts list.
