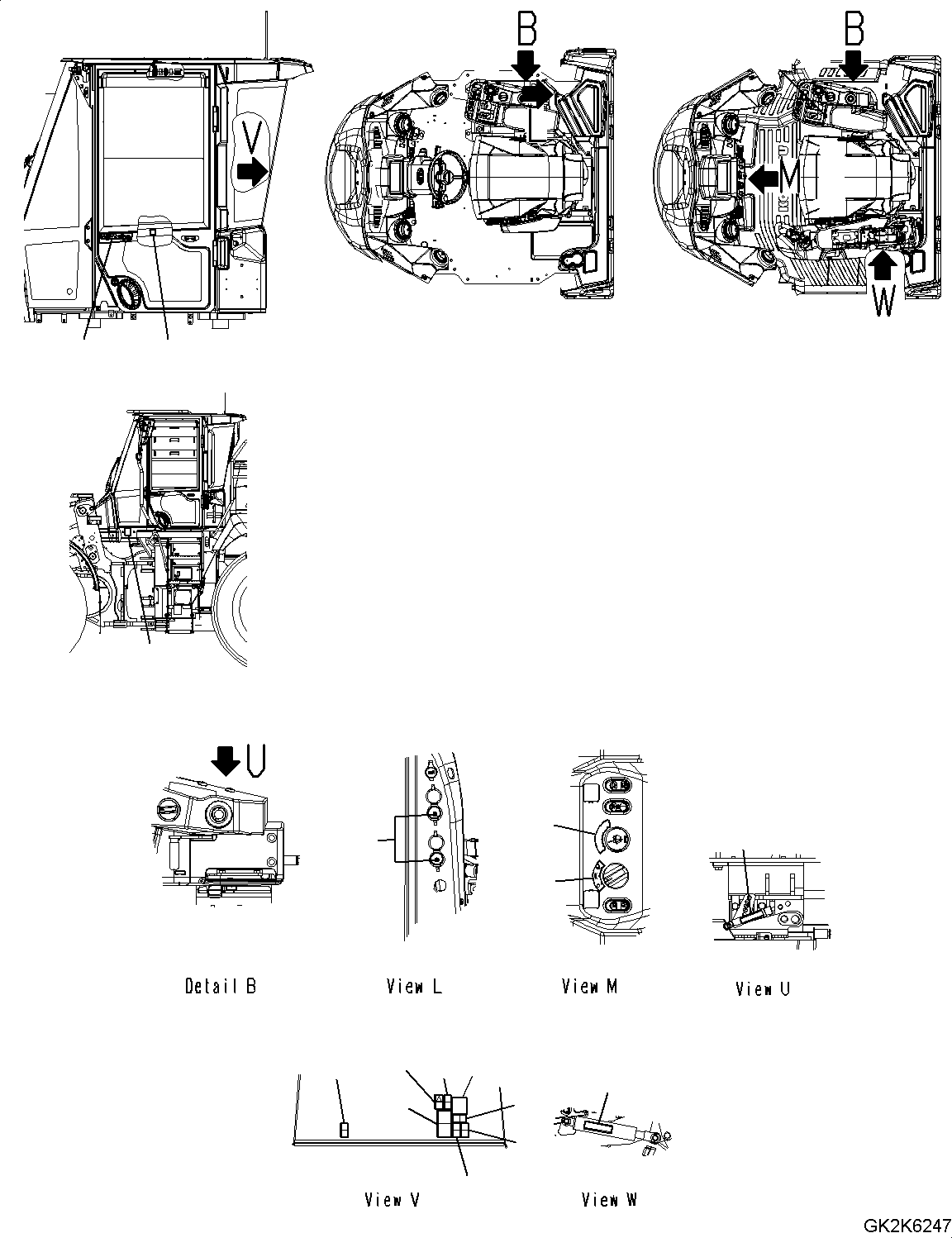

Komatsu parts book diagram for WA485-11E0 S/N H35051-UP: DECAL, COMMON PARTS, INTERIOR (2/2)

10 8 15 11 14 13 12 3 6 2 9 16 4 1 5 7

	#	Part Number	Partname	Quantity	Options	Reference
	1	09651-A0481	Plate, Warning, Read Manual Before Operating	1	SN: H35051-UP
	2	09801-C0481	Plate, Danger, High Voltage Hazard	1	SN: H35051-UP
	3	09848-A0480	Plate, Warning, Seat Belt Wearing	1	SN: H35051-UP
	4	09802-D0880	Plate, Warning, Before Operating and Traveling	1	SN: H35051-UP
	5	09833-C0881	Plate, Warning, Traveling In Reverse	1	SN: H35051-UP
	6	421-93-82920	Plate, Warning, Before Leaving Seat	1	SN: H35051-UP
	7	09845-00480	Plate, Caution, Blast Site	1	SN: H35051-UP
	8	421-93-71611	Plate, Komatsu Logo	1	SN: H35051-UP
	9		Plate, Noise Level, for EU, Operator Ear Noise	1	SN: H35051-UP \| SCC: C1
	10		Plate, Noise Level, for EU	1	SN: H35051-UP \| SCC: C1
	11	22U-00-21511	Plate, 12volt Socket	2	SN: H35051-UP
	12	09659-B057B	Plate, Warning, Explosion Hazard	1	SN: H35051-UP
	\|$13	425-93-52320	Plate	1	SN: H35051-UP
	13		Plate, Wiper Switch	1	SN: H35051-UP \| SCC: C1
	14		Plate, Headlamp Switch	1	SN: H35051-UP \| SCC: C1
	15	425-93-51140	Plate, Emergency Exit	1	SN: H35051-UP
	16	09659-B057B	Plate, Warning, Explosion Hazard	1	SN: H35051-UP
	\|$18		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1

Komatsu WA485-11E0 S/N H35051-UP parts catalog PDF

DECAL, COMMON PARTS, INTERIOR (2/2) (U0100-001003) in WA485-11E0 S/N H35051-UP. Diagram image and parts list.
