D85PX-18E0 S/N 26001-UP

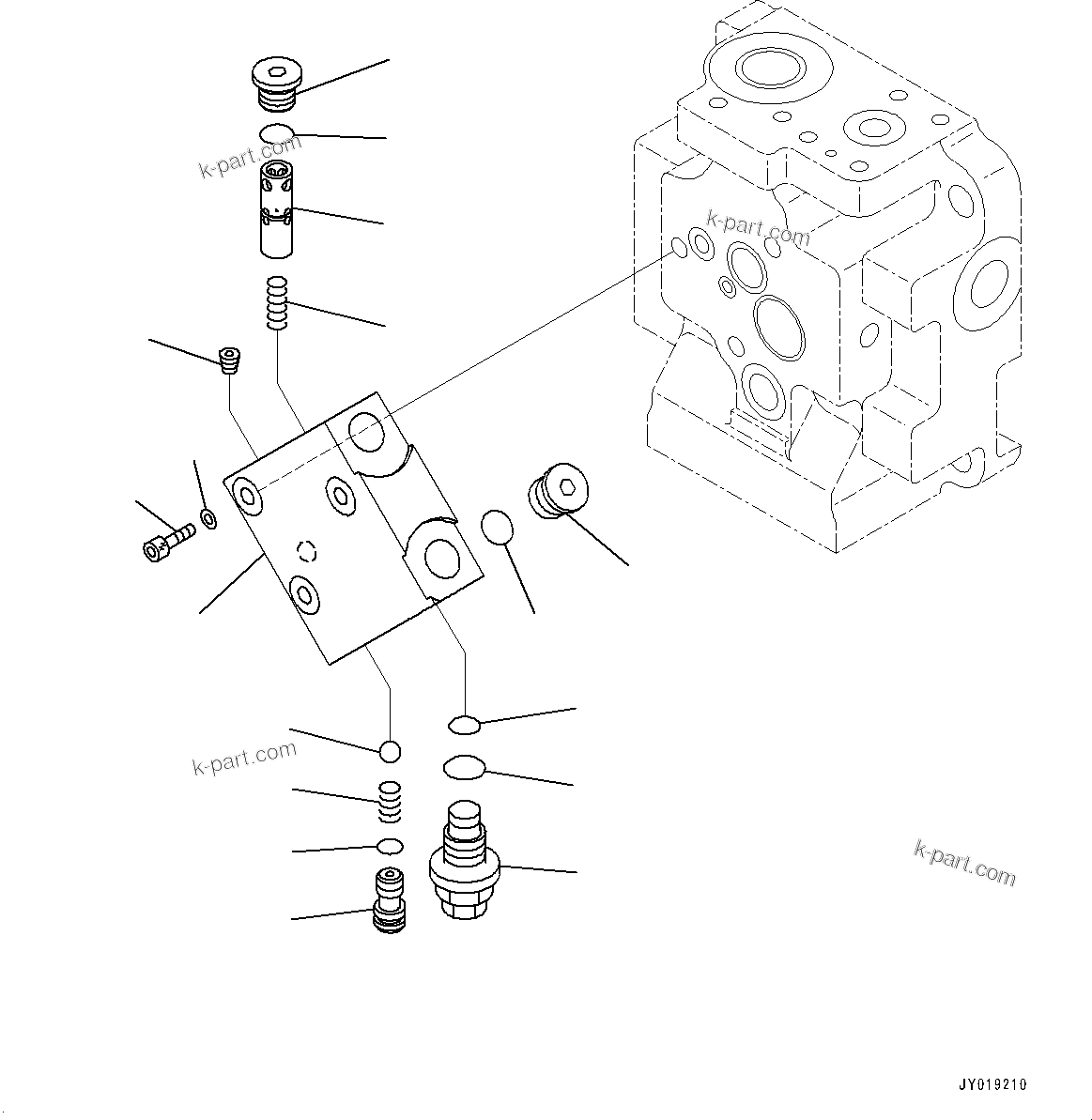

Komatsu parts book diagram for D85PX-18E0 S/N 26001-UP: POWER TRAIN OIL COOLER PIPING, FAN PUMP (6/6)(#22001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	708-1T-00630	Pump Assembly	1	SN: 22001-UP
	?	723-40-72200	Valve Assembly	1	SN: 22001-UP
	?		Valve, Relief	1	SN: 22001-UP \| SCC: C1
	?	702-16-57270	O-ring	1	SN: 22001-UP
	?		O-ring	1	SN: 22001-UP \| SCC: C1
	?		Block	1	SN: 22001-UP \| SCC: C1
	?		Spool	1	SN: 22001-UP \| SCC: C1
	?	702-21-55640	Spring	1	SN: 22001-UP
	?	702-21-55620	Plug	2	SN: 22001-UP
	?		O-ring	2	SN: 22001-UP \| SCC: C1
	?		Seat	1	SN: 22001-UP \| SCC: C1
	?		Spring	1	SN: 22001-UP \| SCC: C1
	?		Ball	1	SN: 22001-UP \| SCC: C1
	?		O-ring	1	SN: 22001-UP \| SCC: C1
	?		Plug, Stocking	2	SN: 22001-UP \| SCC: C1
	?	01252-61040	Bolt, Hexagon Socket Head	3	SN: 22001-UP
	?	01643-51032	Washer	3	SN: 22001-UP
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu D85PX-18E0 S/N 26001-UP parts catalog PDF

POWER TRAIN OIL COOLER PIPING, FAN PUMP (6/6)(#22001-) (F2720-001017) in D85PX-18E0 S/N 26001-UP. Diagram image and parts list.
