D85PX-18E0 S/N 26001-UP

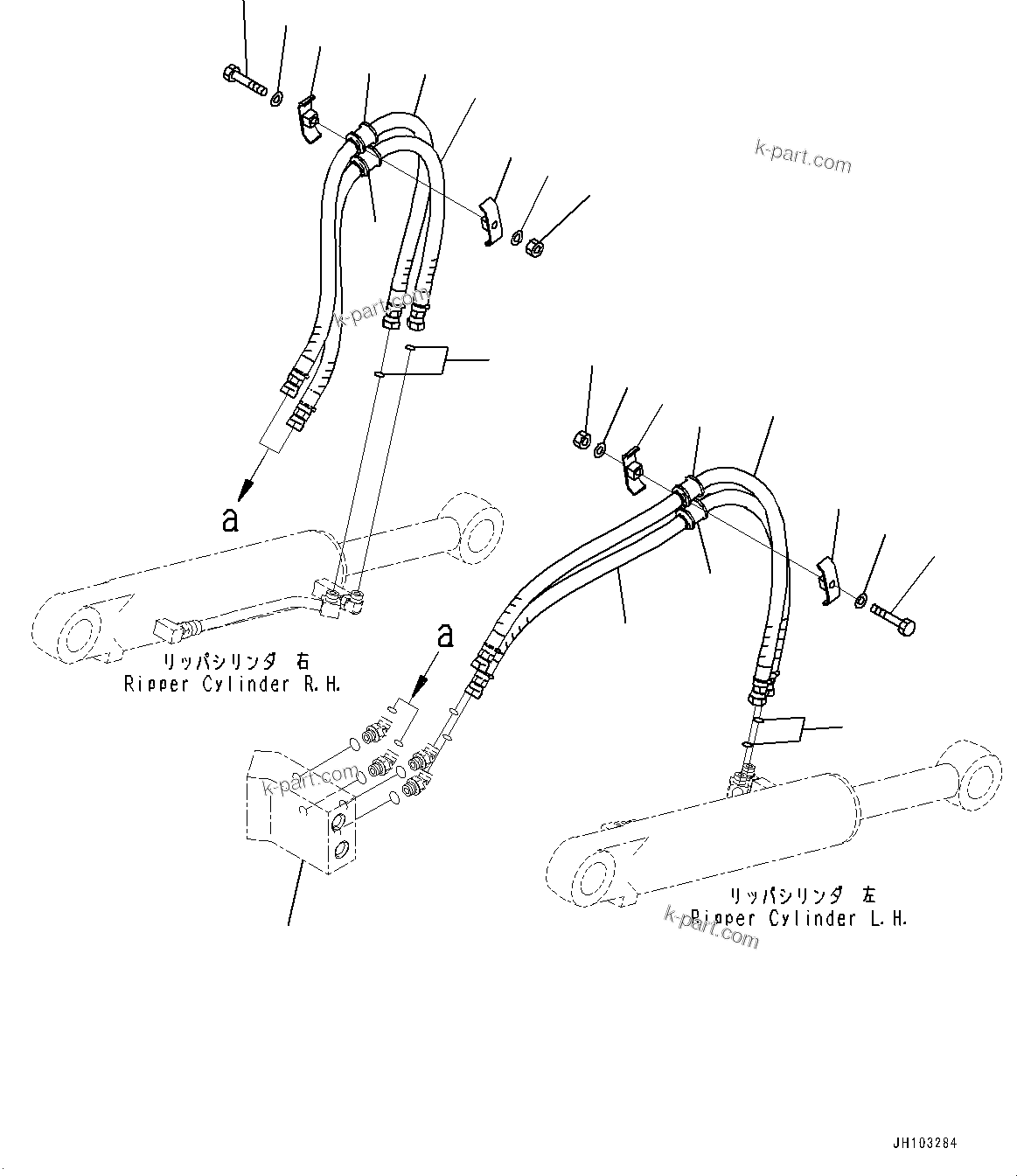

Komatsu parts book diagram for D85PX-18E0 S/N 26001-UP: RIPPER PIPING, (#23028-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	154-78-85261	Hose Assembly	4	SN: 23028-UP
	?	02896-11015	O-ring	4	SN: 23028-UP
	?	07094-30620	Clamp	4	SN: 23028-UP
	?	07095-00628	Cushion	4	SN: 23028-UP
	?	01010-81270	Bolt	2	SN: 23028-UP
	?	01643-31232	Washer	2	SN: 23028-UP
	?	01643-31232	Washer	2	SN: 23028-UP
	?	01580-11210	Nut	2	SN: 23028-UP

Komatsu D85PX-18E0 S/N 26001-UP parts catalog PDF

RIPPER PIPING, (#23028-) (T2460-004001) in D85PX-18E0 S/N 26001-UP. Diagram image and parts list.
