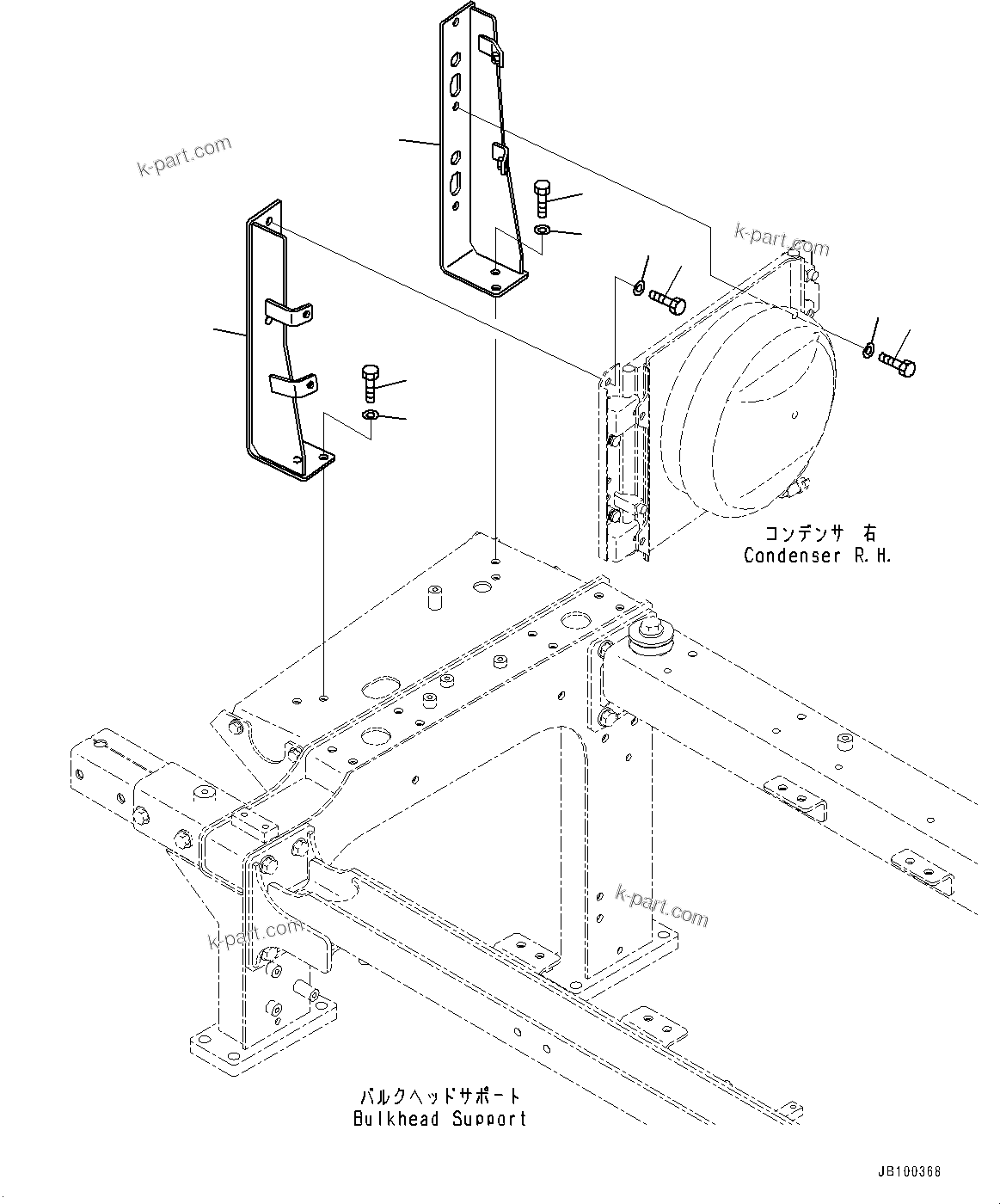

Komatsu parts book diagram for WA800-8E0 S/N 84001-UP: BULKHEAD, MOUNTING (2/2)(#83001-)

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	01010-81230	Bolt	4	SN: 83001-UP
	?	01643-31232	Washer	4	SN: 83001-UP
	?	427-S62-4360	Bracket	1	SN: 83001-UP
	?	01010-81230	Bolt	2	SN: 83001-UP
	?	01643-31232	Washer	2	SN: 83001-UP
	?	427-S62-4370	Bracket	1	SN: 83001-UP
	?	01010-81230	Bolt	2	SN: 83001-UP
	?	01643-31232	Washer	2	SN: 83001-UP

Komatsu WA800-8E0 S/N 84001-UP parts catalog PDF

BULKHEAD, MOUNTING (2/2)(#83001-) (M4102-002018) in WA800-8E0 S/N 84001-UP. Diagram image and parts list.
