WA800-8E0 S/N 84001-UP

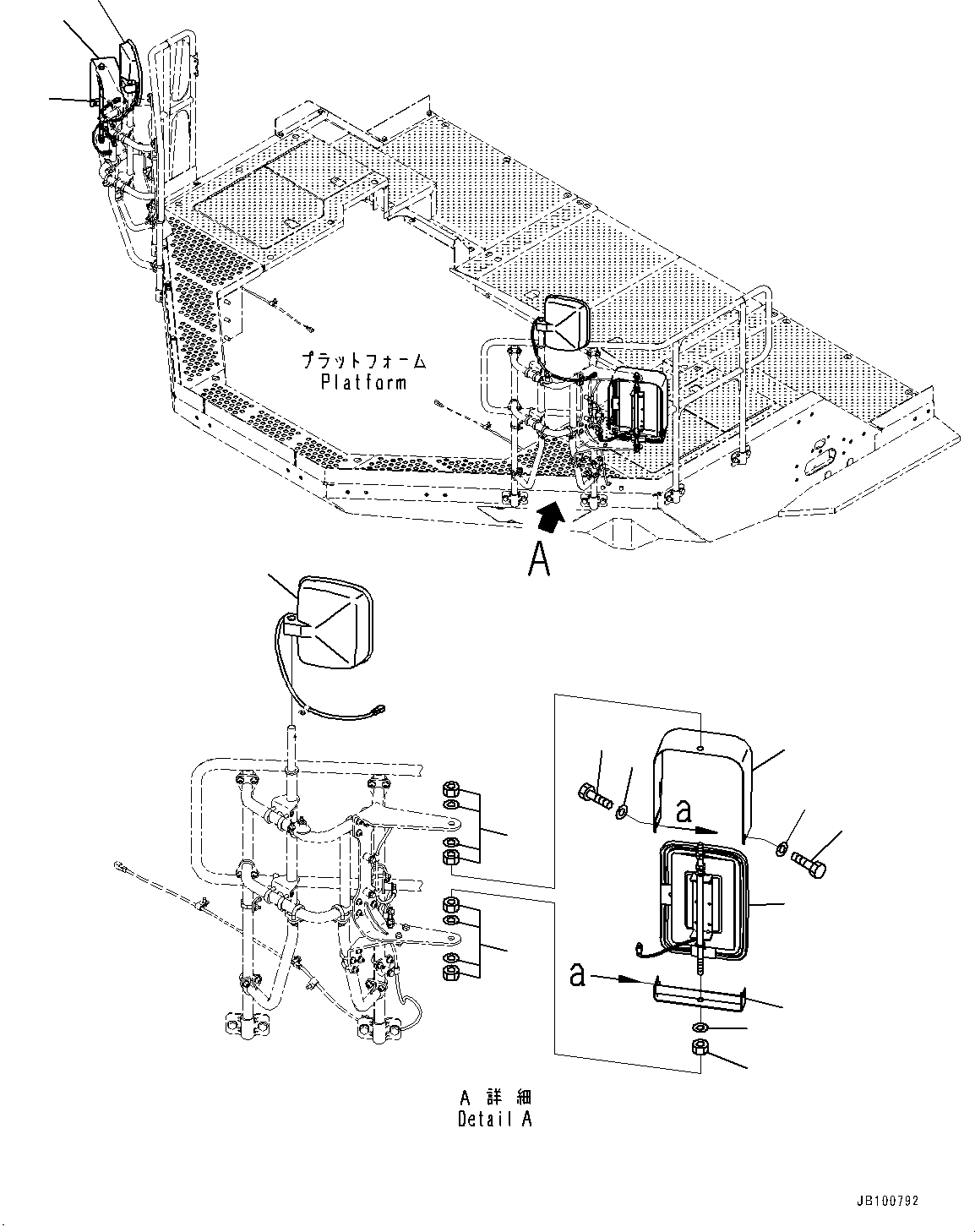

Komatsu parts book diagram for WA800-8E0 S/N 84001-UP: MIRROR, MIRROR (REARVIEW MIRROR, WITH HEATER)(#83001-)

1 2 3 1 2 3 5 6 7 8 2 6 5 4 2

	#	Part Number	Partname	Quantity	Options	Reference
	1	421-54-65712	Mirror	2	SN: 83008-UP
	\|$1	421-54-65711	Mirror	2	SN: 83001-83007 \| SCC: A2
	\|$2	421-54-25620	Bushing	2	SN: 83001-UP
	\|$3	421-54-25630	Holder	1	SN: 83001-UP
	\|$4	421-54-25640	Lens	1	SN: 83001-UP
	\|$5	421-54-25650	Frame	1	SN: 83001-UP
	\|$6	421-54-25660	Screw	4	SN: 83001-UP
	2	56D-86-32313	Mirror, Rearview	2	SN: 83008-UP
	\|$8	56D-86-32312	Mirror, Rearview	2	SN: 83001-83007 \| SCC: A2
	\|$9	581-06-16442	Cover, Black	1	SN: 83001-UP
	\|$10	08025-06050	Tube	1	SN: 83001-UP
	\|$11	08192-12830	Connector Body Assembly	1	SN: 83001-UP
	3	569-54-87140	Cover	2	SN: 83001-UP
	4	561-54-8A150	Bracket	2	SN: 83001-UP
	5	01010-D1020	Bolt	4	SN: 83001-UP
	6	01643-71032	Washer	4	SN: 83001-UP
	7	01643-31645	Washer	2	SN: 83001-UP
	8	01580-11613	Nut	2	SN: 83001-UP
	\|$18		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu WA800-8E0 S/N 84001-UP parts catalog PDF

MIRROR, MIRROR (REARVIEW MIRROR, WITH HEATER)(#83001-) (M4410-001001) in WA800-8E0 S/N 84001-UP. Diagram image and parts list.
