WA800-8E0 S/N 84001-UP

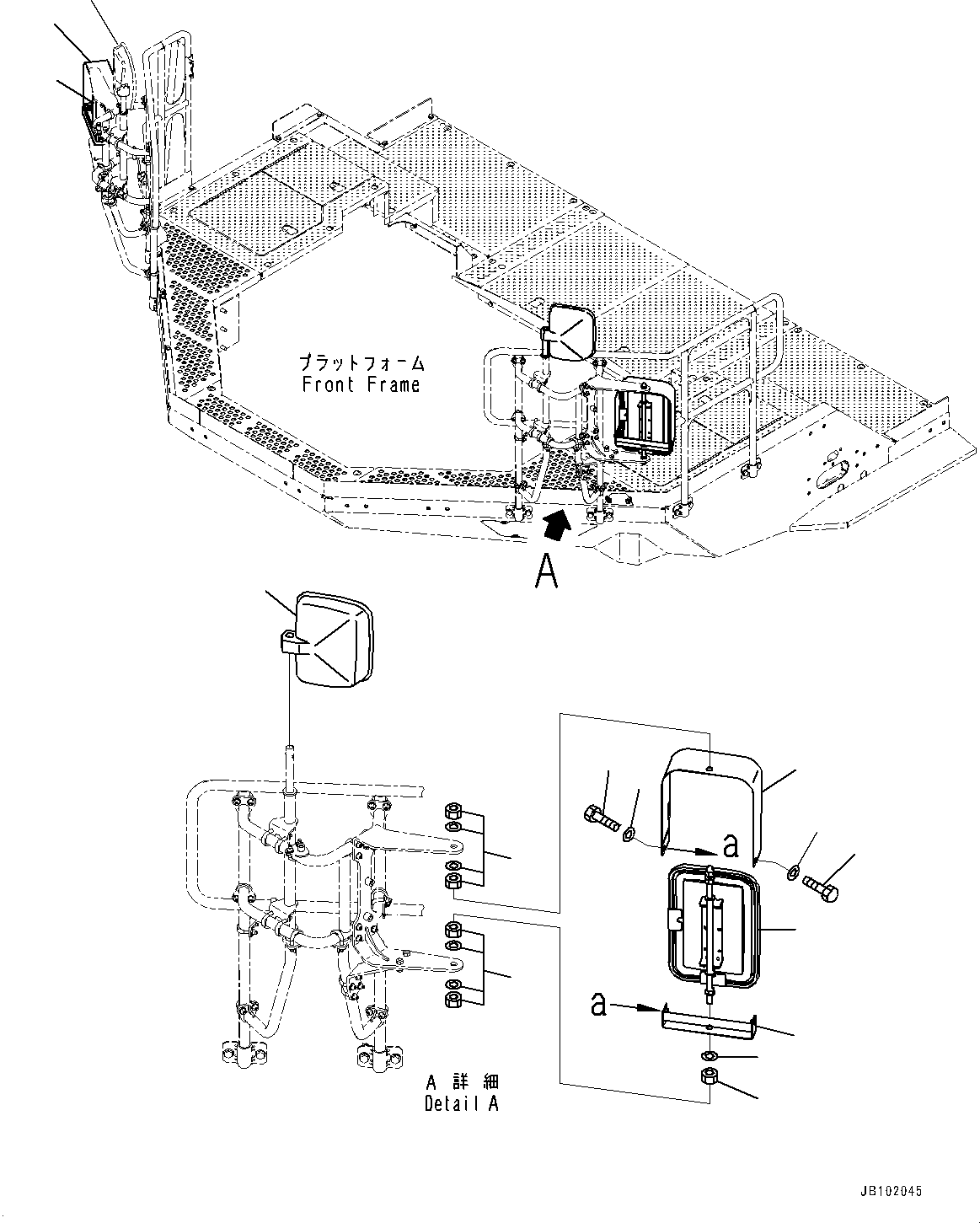

Komatsu parts book diagram for WA800-8E0 S/N 84001-UP: MIRROR, MIRROR (WITH REARVIEW MIRROR, L.H. AND R.H.)(#83001-)

1 2 3 2 1 2 3 5 6 7 8 2 6 5 4

	#	Part Number	Partname	Quantity	Options	Reference
	1	421-54-25610	Mirror	2	SN: 83001-UP
	\|$1	421-54-25620	Bushing	2	SN: 83001-UP
	\|$2	421-54-25630	Holder	1	SN: 83001-UP
	\|$3	421-54-25640	Lens	1	SN: 83001-UP
	\|$4	421-54-25650	Frame	1	SN: 83001-UP
	\|$5	421-54-25660	Screw	4	SN: 83001-UP
	2	561-54-8A612	Mirror, Rearview	2	SN: 83001-UP
	\|$7	561-54-8A611	Mirror, Rearview	2	SN: 83001-84000 \| SCC: A2
	\|$8	581-06-16431	Mirror	1	SN: 83001-UP
	3	569-54-87140	Cover	2	SN: 83001-UP
	4	561-54-8A150	Bracket	2	SN: 83001-UP
	5	01010-D1020	Bolt	4	SN: 83001-UP
	\|$12	01010-81020	Bolt	4	SN: 83001-84000
	6	01643-71032	Washer	4	SN: 83001-UP
	\|$14	01643-31032	Washer	4	SN: 83001-84000
	7	01643-31645	Washer	2	SN: 83001-UP
	8	01580-11613	Nut	2	SN: 83001-UP
	\|$17		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu WA800-8E0 S/N 84001-UP parts catalog PDF

MIRROR, MIRROR (WITH REARVIEW MIRROR, L.H. AND R.H.)(#83001-) (M4410-002001) in WA800-8E0 S/N 84001-UP. Diagram image and parts list.
