Diagram image 1 of 3

PC4000-6 S/N 08241

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08241

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08241

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	928 190 40	Bullclam bucket 4000mm wide w/o lip	1
?	928 451 40	Plate	2
?	958 718 40	Strip	4
?	928 452 40	Strip	2
?	928 453 40	Protection rubber	2
?	511 263 98	Thread pin	20
?	507 037 98	Nut	20
?		Back panel (weldment)	1
?		see clamping cylinder	2
?	900 740 40	Pin with plate (Standard)	2
?	913 607 40	Pin with plate (Cold weather design)	2
?	900 742 40	Pin with plate (Standard)	2
?	913 610 40	Pin with plate (Cold weather design)	2
?	900 744 40	Pin (Standard)	2
?	913 612 40	Pin (Cold weather design)	2
?	900 745 40	Pin (Standard)	2
?	913 613 40	Pin (Cold weather design)	2
?	928 448 40	Washer	4
?	900 747 40	Freeze-in bushing	4
?	900 748 40	Flanged bush	4
?	643 160 40	Protective frame	2
?	577 368 40	Protective frame	2
?	643 183 40	Catch	4
?	506 179 40	Catch	4
?	643 161 40	Catch	2
?	577 369 40	Catch	2
?	900 749 40	Catch	4
?	647 277 40	Catch	4
?	900 750 40	Axle stirrup	4
?	647 275 40	Axle stirrup	4
?	900 751 40	Shackle	2
?	647 279 40	Cover	2
?	366 010 40	Distributor block	2
?	515 682 98	Hose assy. DN 32x1400	1
?	515 683 98	Hose assy. DN 32x1560	1
?	516 197 98	Hose assy. DN 32x2200	1
?	512 977 98	Hose assy. DN 32x2050	1
?	006 638 98	Half flange	16
?	356 210 40	Flange seal	8
?	319 209 99	Bolt	32
?	356 209 40	Flange seal	2
?	319 288 99	Bolt	8
?	504 503 98	Bolt	8
?	320 374 99	Bolt	4
?	307 826 99	Bolt	16
?	517 123 98	Lock washer	16
?	896 665 40	Plug	4
?	925 573 40	Cover	2
?	307 775 99	Bolt	6
?	517 122 98	Lock washer	6
?	928 449 40	Cover	2
?	334 600 99	Nut	8
?	510 213 98	Thread pin	8
?	517 118 98	Lock washer	8
?	913 627 40	Ring	4
?		Bucket clam (weldment)	1
?	935 514 40	Pin with plate (Standard)	2
?	937 793 40	Pin with plate (Cold weather design)	1
?	927 367 40	Bushing	2
?	935 516 40	Cover	2
?	935 515 40	Catch	4
?	307 824 99	Bolt	8
?	517 123 98	Lock washer	8
?	907 019 40	Seal ring	4
?	955 862 40	Lip assy. incl. fig nos. 72-74	1
?	950 164 40	Corner adapter	1
?	950 162 40	Corner adapter	1
?	932 949 40	Tooth adapter	3
?	941 853 40	Lip shroud	2
?	941 854 40	Lip shroud	2
?	906 104 40	Weld base	4
?	940 026 40	J-bolt assy.	4
?	941 714 40	Tooth	5
?	941 717 40	Locking	5
?	941 715 40	Tooth adapter	5
?	941 716 40	Locking	5
?	941 723 40	Lower wing shroud	2
?	932 956 40	Wear cap	3

Komatsu PC4000-6 S/N 08241 parts catalog PDF

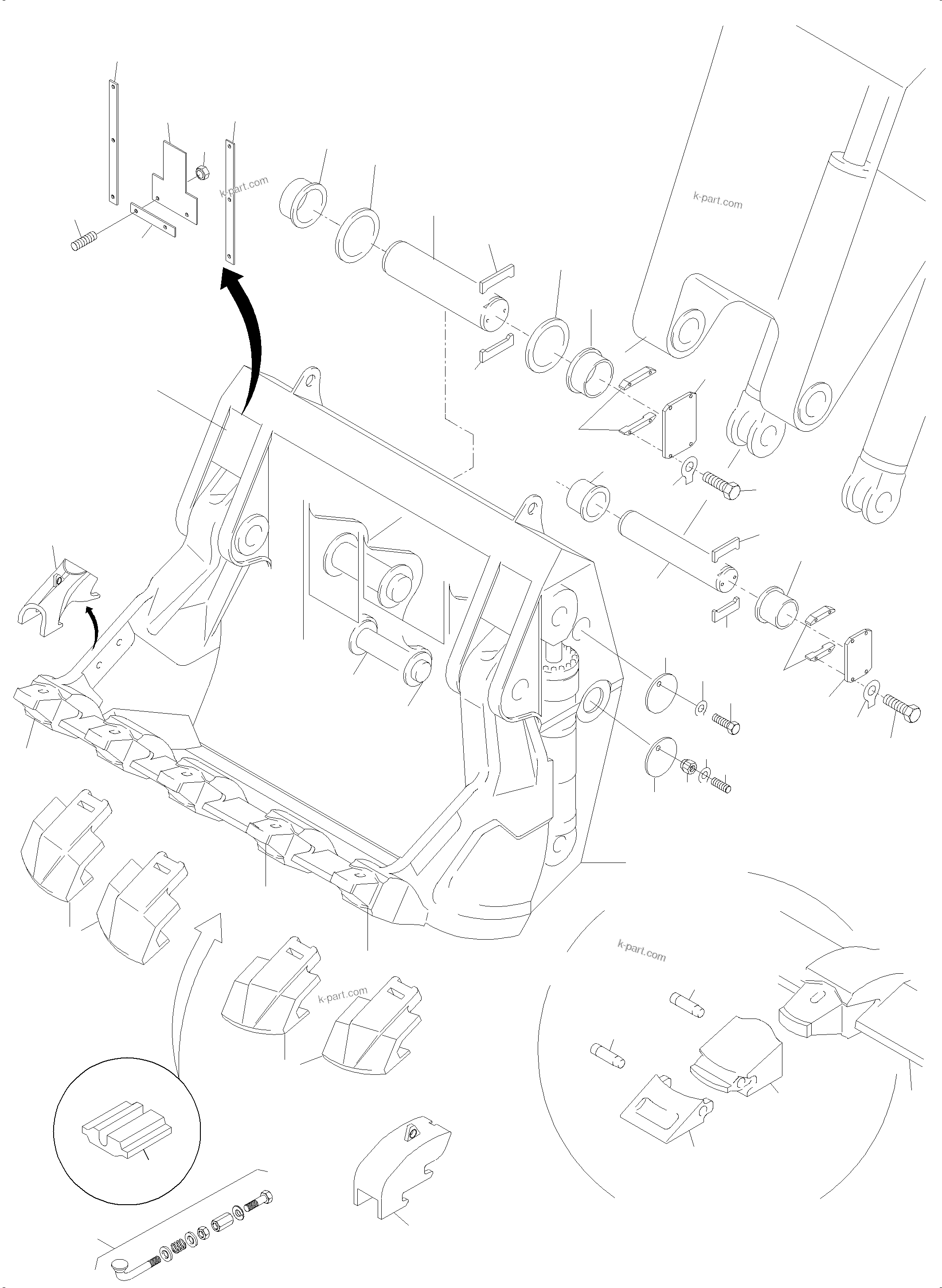

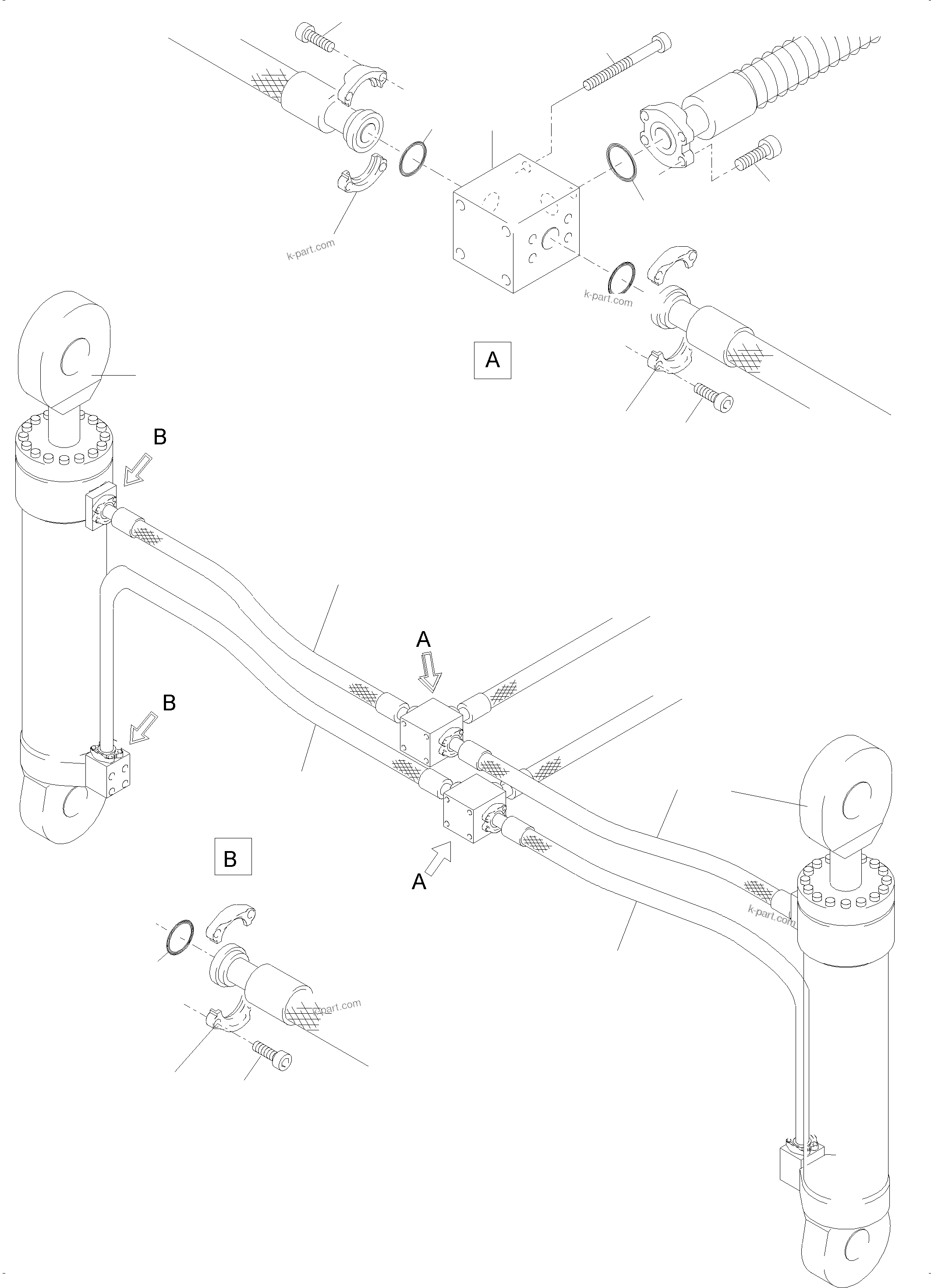

BULLCLAM BUCKET 22,0 CBM (355-5008a) in PC4000-6 S/N 08241. Diagram image and parts list.
