D71PXI-24 S/N 74001-UP

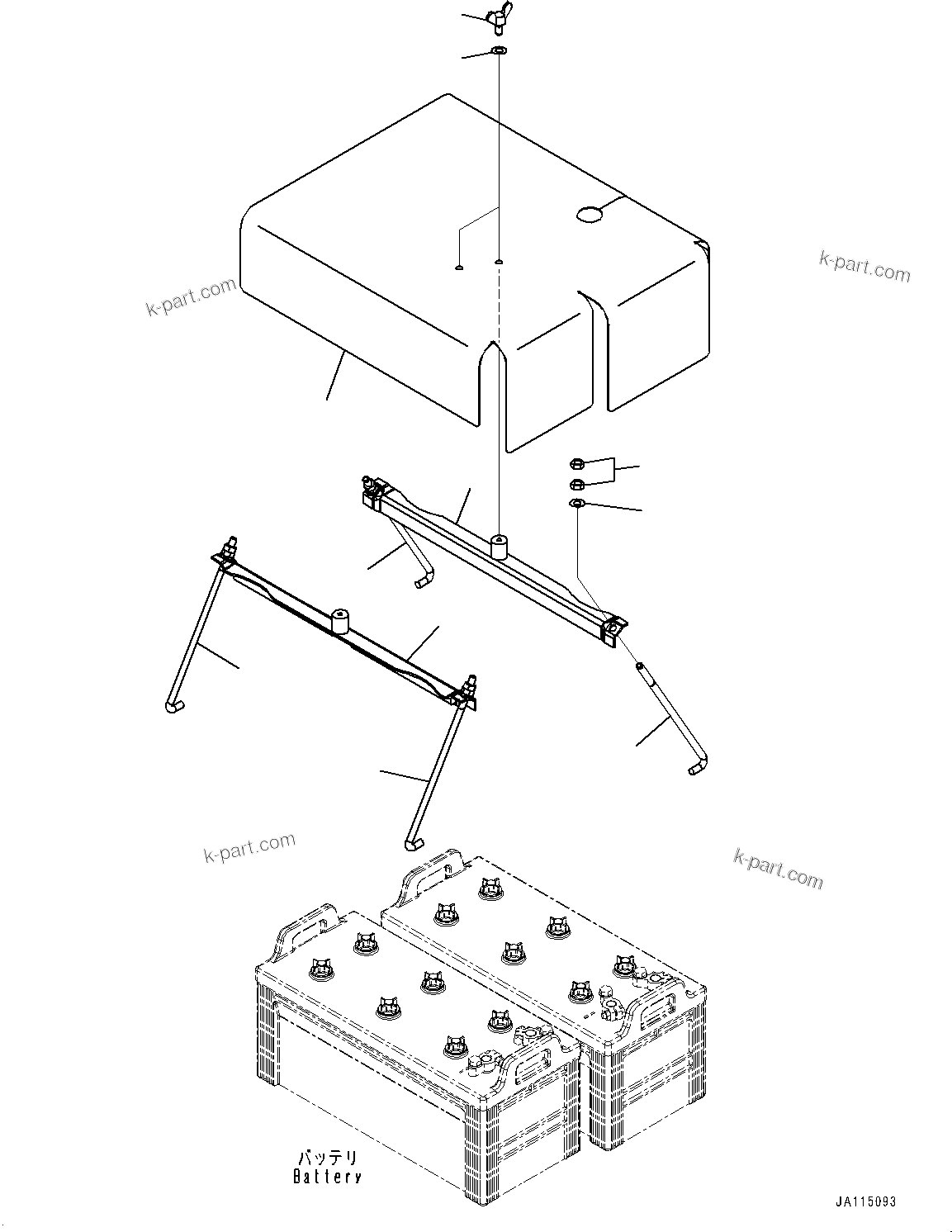

Komatsu parts book diagram for D71PXI-24 S/N 74001-UP: BATTERY ELECTRIC WIRING HARNESS, BATTERY HOLDER(#70002-)

? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	14Y-06-42140	Holder	2	SN: 70002-UP
	?	13Y-06-11140	Rod	4	SN: 70002-UP
	?	01643-31032	Washer	4	SN: 70002-UP
	?	01580-11008	Nut	8	SN: 70002-UP
	?	14Y-06-42130	Sheet	1	SN: 70002-UP
	?	01643-30823	Washer	2	SN: 70002-UP
	?	01434-00820	Bolt, Wing	2	SN: 70002-UP

Komatsu D71PXI-24 S/N 74001-UP parts catalog PDF

BATTERY ELECTRIC WIRING HARNESS, BATTERY HOLDER(#70002-) (E0210-003002) in D71PXI-24 S/N 74001-UP. Diagram image and parts list.
