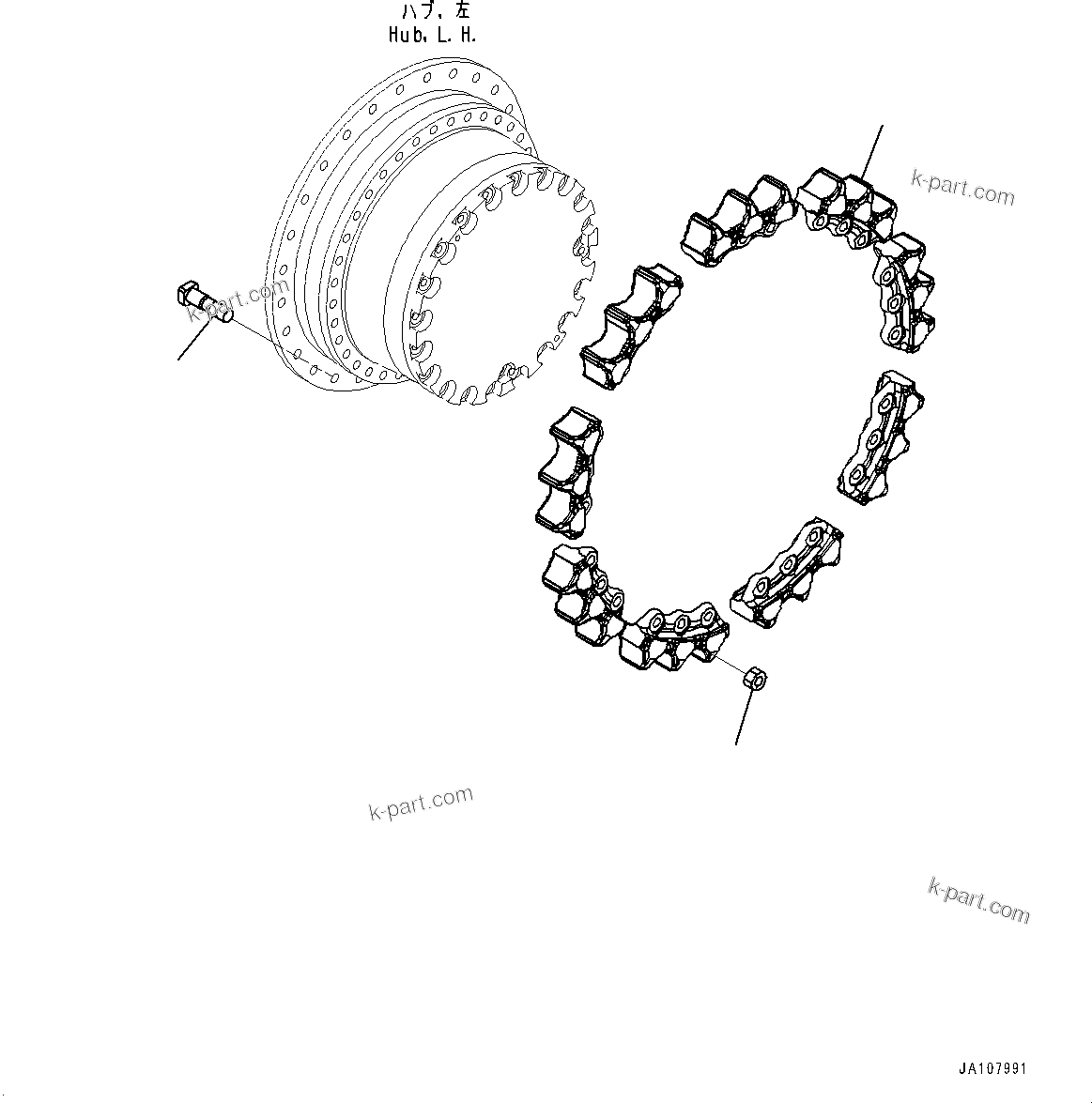

Komatsu parts book diagram for D71PXI-24 S/N 74001-UP: FINAL DRIVE, TEETH, L.H.(#70002-)

? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	14Y-27-40301	Final Drive Assembly, PLUS Type Track Shoe	1	SN: 70764-UP
	?	14Y-27-40300	Final Drive Assembly, PLUS Type Track Shoe	1	SN: 70002-70763 \| SCC: A2
	?	14X-27-15211	Teeth	9	SN: 70002-UP
	?	154-27-12320	Bolt	27	SN: 70002-UP
	?	01803-02228	Nut	27	SN: 70002-UP
	?		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu D71PXI-24 S/N 74001-UP parts catalog PDF

FINAL DRIVE, TEETH, L.H.(#70002-) (F2380-001008) in D71PXI-24 S/N 74001-UP. Diagram image and parts list.
