MAIN PUMPS SUCTION LINES | PC4000-6 S/N 08239 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

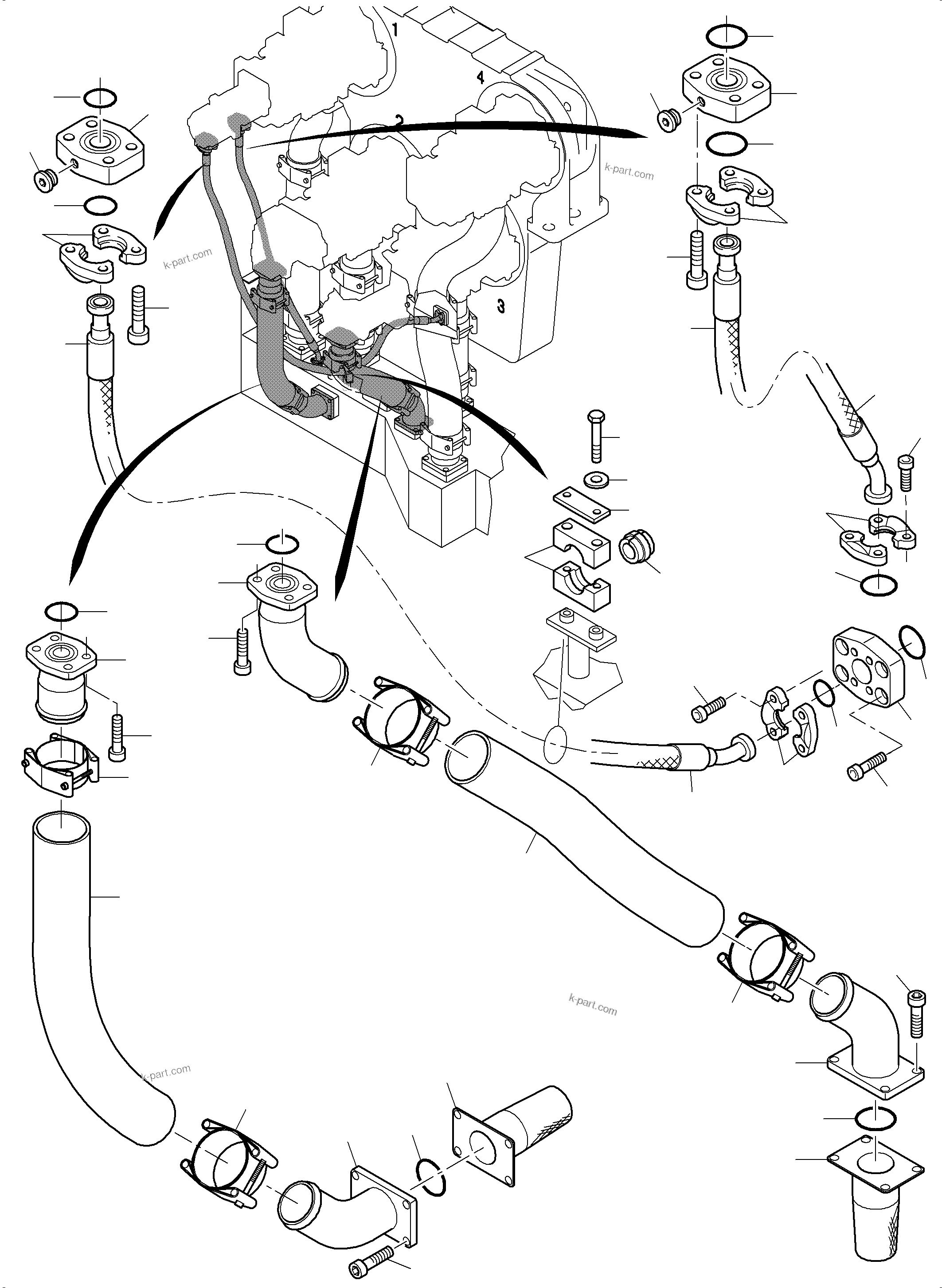

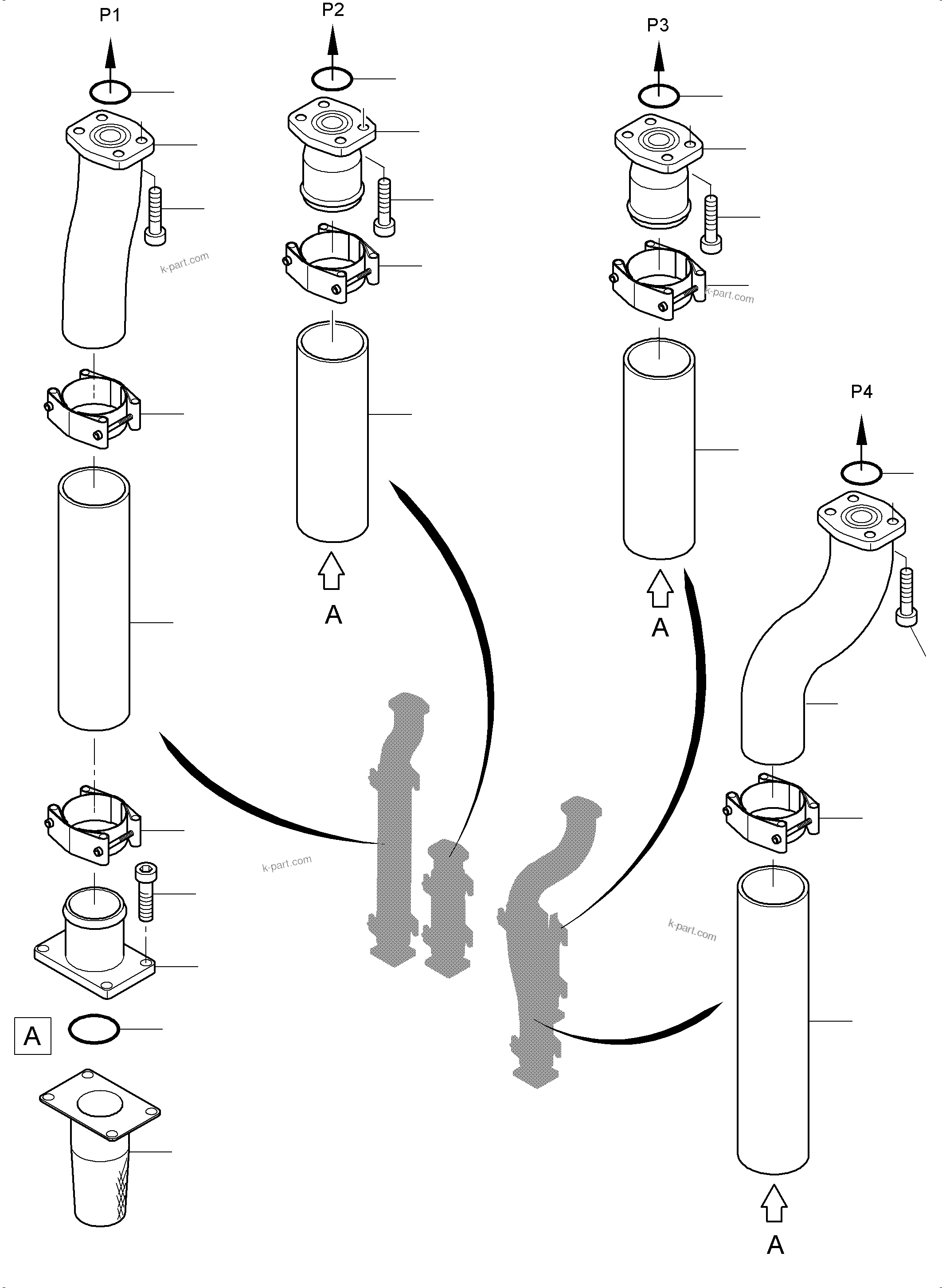

Diagram image 1 of 2

PC4000-6 S/N 08239

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08239

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	950 358 40	Filter	4
?	941 101 40	Filter	2
?	950 401 40	Elbow PUMPE 1 OBEN	1
?	907 684 40	Socket PUMPE 1+2	4
?	950 400 40	Socket PUMPE 2+3	2
?	950 402 40	Elbow PUMPE 4 OBEN	1
?	950 405 40	Socket LUEFTERPUMPE OK OBEN	1
?	950 403 40	Elbow LUEFTERPUMPE UNTEN	2
?	950 404 40	Elbow LUEFTERPUMPE WK OBEN	1
?	950 368 40	Reducing flange	1
?	635 933 40	Intermediate Flange	2
?	950 479 40	Suction hose	1
?	950 407 40	Suction hose	1
?	950 407 40	Suction hose	1
?	950 479 40	Suction hose	1
?	951 434 40	Suction hose	1
?	950 410 40	Suction hose	1
?	518 722 98	Hose assy. DN 50x1550	1
?	518 871 98	Hose assy. DN 50x2500	1
?	907 681 40	Clamp	8
?	907 752 40	Clamp	4
?	502 371 98	Half clamp	2
?	502 626 98	Grommet	2
?	534 008 99	Cover plate	2
?	006 635 98	Half flange	8
?	517 582 98	O-ring	12
?	517 583 98	O-ring	2
?	508 105 98	O-ring	4
?	519 454 98	Flange seal	6
?	519 455 98	Flange Seal	1
?	180 113 40	Plug	2
?	319 188 99	Bolt	16
?	319 157 99	Bolt	8
?	319 437 99	Bolt	8
?	319 442 99	Bolt	24
?	319 156 99	Bolt	8
?	319 158 99	Bolt	4
?	308 599 99	Bolt	4
?	518 200 98	Lock washer	4
