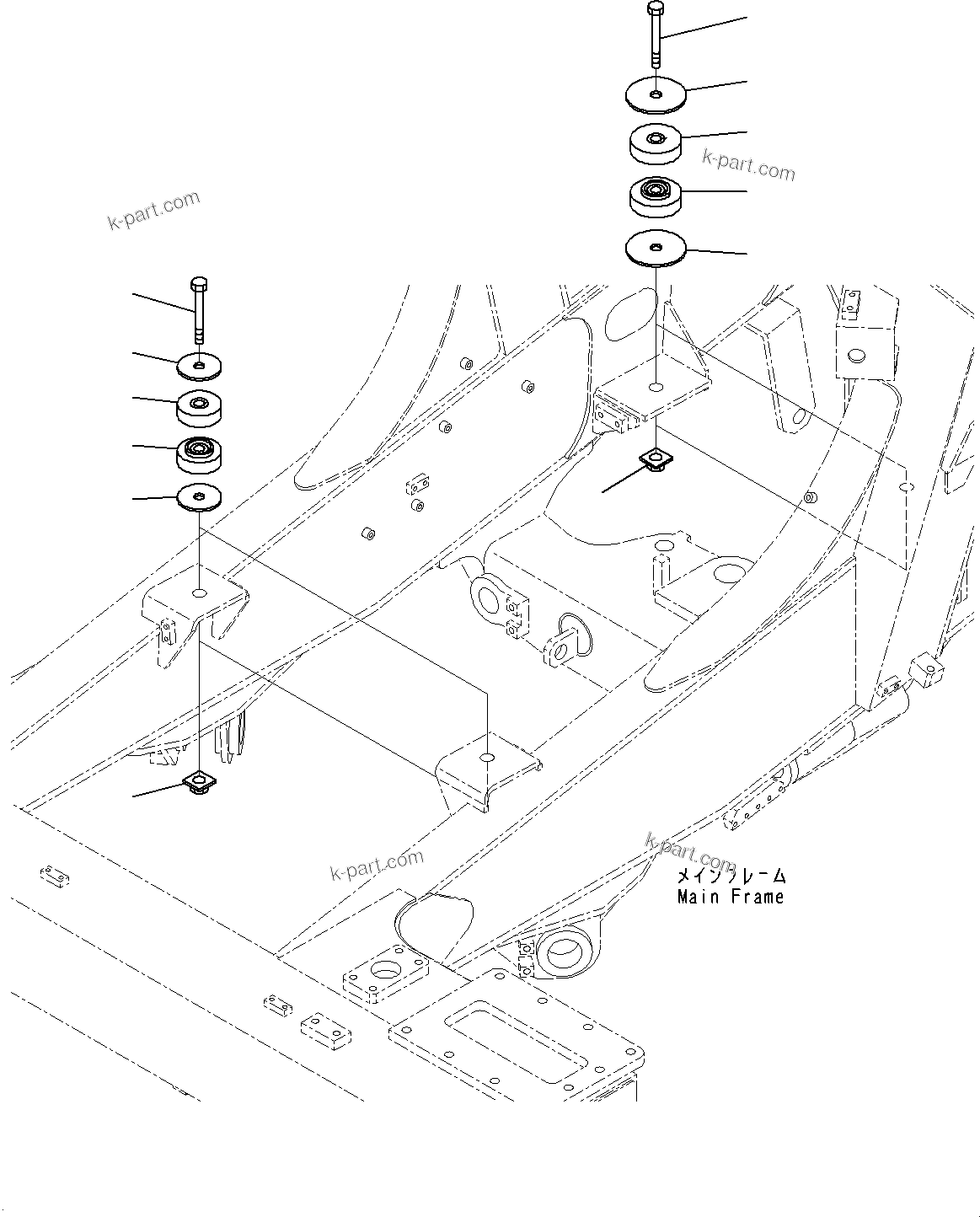

Komatsu parts book diagram for HD325-7R S/N 12001-UP: ENGINE MOUNTING, (#11034-)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	425-01-11350	Cushion	4	SN: 11034-UP
	?	419-01-11162	Washer	4	SN: 11034-UP
	?	01011-62225	Bolt	2	SN: 11034-UP
	?	425-01-11250	Plate	2	SN: 11034-UP
	?	566-01-6A170	Cushion	4	SN: 11034-UP
	?	424-01-11220	Washer	4	SN: 11034-UP
	?	01011-62225	Bolt	2	SN: 11034-UP
	?	425-01-11250	Plate	2	SN: 11034-UP

Komatsu HD325-7R S/N 12001-UP parts catalog PDF

ENGINE MOUNTING, (#11034-) (B0100-001001) in HD325-7R S/N 12001-UP. Diagram image and parts list.
