HD325-7R S/N 12001-UP

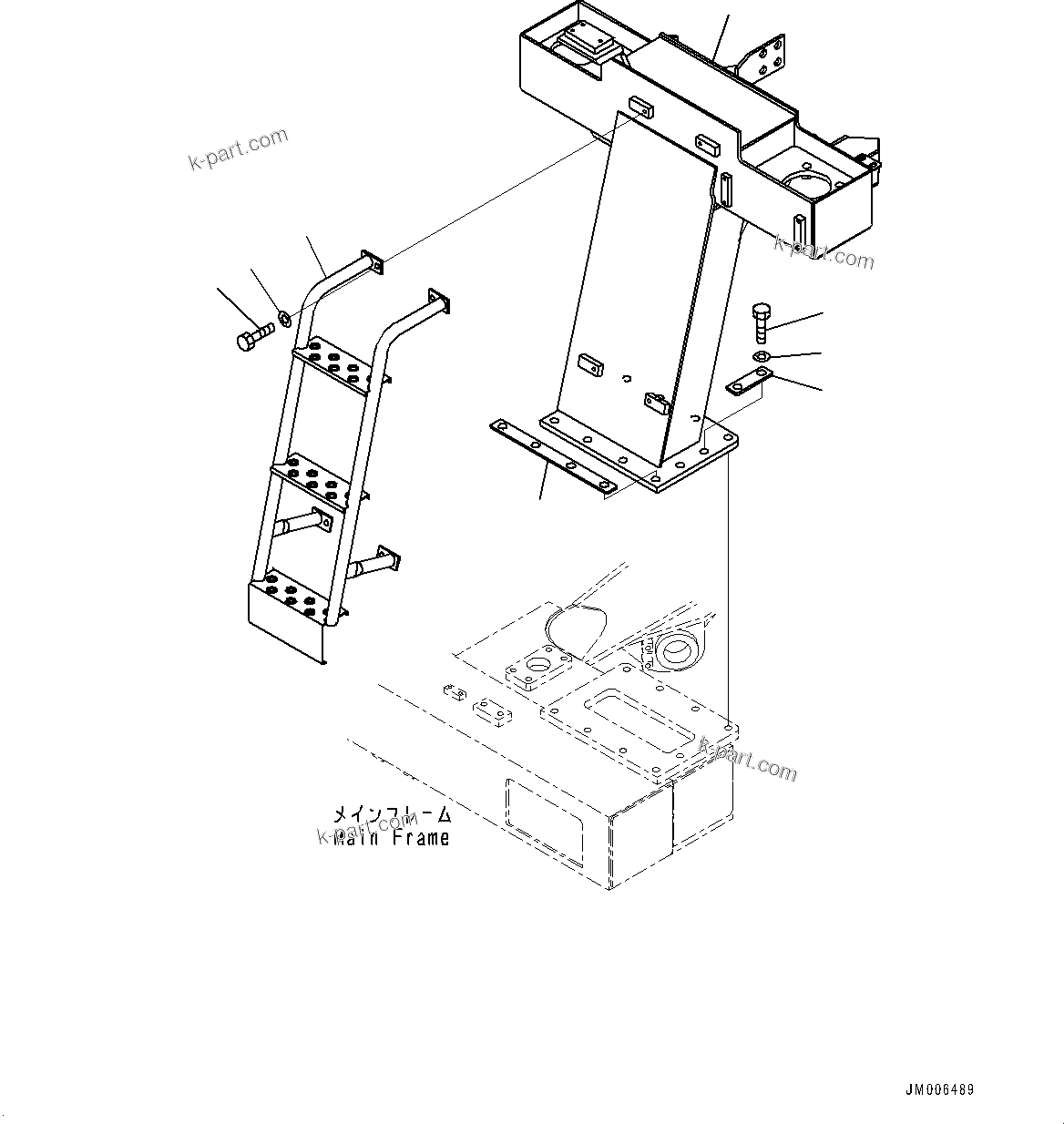

Komatsu parts book diagram for HD325-7R S/N 12001-UP: FRONT SUPPORT, L.H.(#11095-)

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	566-54-8A314	Support	1	SN: 11095-UP
	?	01010-82055	Bolt	10	SN: 11095-UP
	?	01643-32060	Washer	10	SN: 11095-UP
	?	566-54-8A950	Plate	1	SN: 11095-UP
	?	566-54-8A970	Plate	1	SN: 11095-UP
	?	566-54-8A371	Step	1	SN: 11095-UP
	?	01010-81225	Bolt	4	SN: 11095-UP
	?	01643-31232	Washer	4	SN: 11095-UP

Komatsu HD325-7R S/N 12001-UP parts catalog PDF

FRONT SUPPORT, L.H.(#11095-) (J3220-007001) in HD325-7R S/N 12001-UP. Diagram image and parts list.
